product introduction
Explosion-proof junction boxes are specialized explosion-proof devices designed for use in explosive hazardous environments. They are applicable to Zone 1 and Zone 2 environments with explosive gases and combustible dust, ranging from Zone 20 to Zone 22. They are widely used in fields such as oil extraction and refining, chemical industry, medicine, and military.
product parameters
| Model |
BAXIT-A/B/C/D/E/F/G/H |
Product Name |
BHC Explosion proof Junction Box |
| Rated voltage |
220V/380V |
Product material |
Aluminum alloy |
| Protection level |
IP65 |
Corrosion resistance grade |
WF1 |
| Explosion-proof rating |
EX e IIGB |
Operating environment |
IIA, IIB, IIC explosion proof gas environments |
| Product Specifications |
DN15/DN20/DN25/DN32/DN40/DN50/DN70
/DN80/DN100 |
| Nominal diameter |
pipe thread type |
Internal and external thread dimensions |
Outer diameter of the cable |
| DN15 |
G1/2 |
⌀19.4 ⌀20.4 |
⌀7-⌀10 |
| DN20 |
G3/4 |
⌀24.8 ⌀26.1 |
⌀10-⌀14 |
| DN25 |
G1 |
⌀30.8 ⌀32.5 |
⌀12-⌀18 |
| DN32 |
G1 1/4 |
⌀39.5 ⌀41.3 |
⌀15-⌀23 |
| DN40 |
G1 1/2 |
⌀44.9 ⌀47.7 |
⌀18-⌀30 |
| DN50 |
G2 |
⌀56.8 ⌀59 |
⌀25-⌀38 |
| DN70 |
G2 1/2 |
⌀72.4 ⌀76 |
⌀30-⌀46 |
| DN80 |
G3 |
⌀85.1 ⌀88 |
⌀38-⌀56 |
| DN100 |
G4 |
⌀110 ⌀114 |
⌀61-⌀80 |
product details
The shell is made of cast aluminum alloy or cast iron, with a plastic coating on the surface, allowing users to choose freely;
The structural form is diverse, facilitating installation;
Compliant with the requirements of GB3836.1-2010, GB3836.3-2010, GB12476.1, and IEC60079 standards.

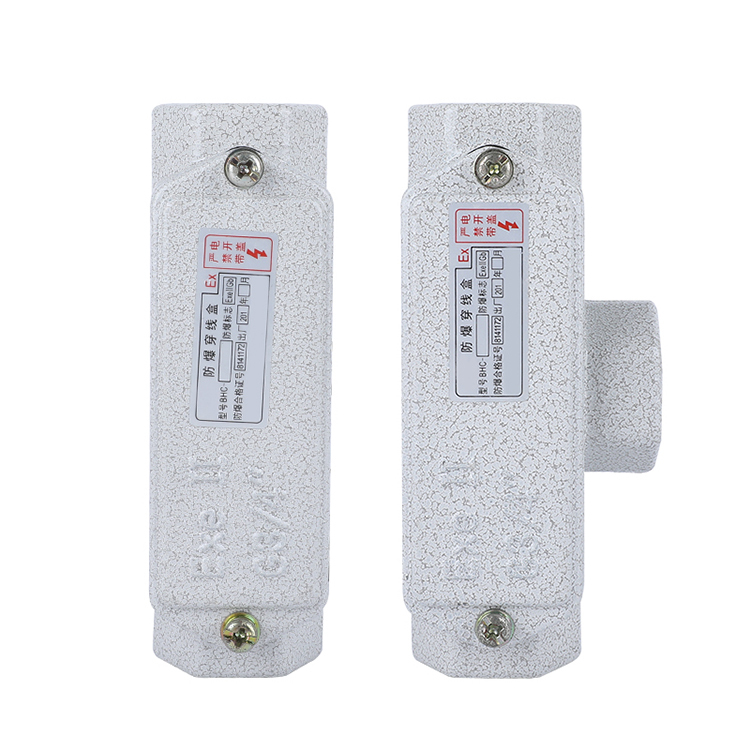

product photos
