Vertical freezing grinder
The multi-channel vertical freezing grinding instrument is an efficient sample grinding device that can handle multiple samples simultaneously. It is widely used in both scientific research and industrial fields.
Working principle:
The multi-channel vertical freezing grinding instrument usually operates in a vertical vibration mode. It uses a motor to drive the grinding platform to perform high-frequency reciprocating movements in three dimensions (up and down, left and right). Under this motion, the grinding beads in the grinding jar exert high-frequency impacts, shearing, and friction on the sample, thereby grinding the sample into fine particles. At the same time, the instrument is equipped with a built-in refrigeration system, which can lower the sample temperature to a low level, causing the tough or heat-sensitive samples to become brittle and facilitating the grinding process.
Technical features:
- High-throughput processing: It can handle multiple samples simultaneously, significantly enhancing work efficiency.
- Low-temperature protection: The refrigeration range is generally from -50℃ to room temperature, with high temperature control accuracy.
- Intelligent operation: Equipped with a touch screen, it supports presetting multiple grinding formulas, allowing users to store ≥30 sets of experimental data. They can call the corresponding mode based on the sample type and perform multi-stage programming to reduce interference from human factors.
- Safe and reliable: It uses an electric door switch and electromagnetic locking device to ensure the safety of samples during the grinding process and avoid cross-contamination.
- Highly versatile: It can be compatible with various specifications of grinding jars and grinding beads, capable of handling samples of various types such as plant tissues, animal tissues, fungi and bacteria, plastics, polymers, etc.
Technical Specifications:
| Model |
BXT-LD24S |
BXT-LD48S |
BXT-LD64S |
BXT-LD96S |
| Sample size |
Standardly equipped with 24-well 2ml PE adapter. Optional: 2ml×12, 5ml×12, 10ml×4, 25ml×2 grinding jars |
Standardly equipped with 48-well 2ml PE adapter and 48-well alloy adapter. Optional: 2ml×48, 5ml×12, 10ml×4, 15ml×4, 25ml×4, 50ml×2 grinding jars |
Standardly equipped with 64-well 2ml PE adapter. Optional: 2ml×64, 5ml×12, 10ml×4, 25ml×4, 50ml×2 grinding jars |
Standardly equipped with 96-well 2ml PE adapter and 96-well alloy adapter. Optional: 2ml×96, 5ml×12, 10ml×4, 15ml×4, 25ml×4, 50ml×2 grinding jars |
| Display mode |
7-inch LED touch screen |
| Optional configuration mode |
It can store ≥20 sets of experimental data. According to different experimental samples, modes for animal heart, spleen, lung, kidney, bone and hair can be set |
| Multiple programming sections |
Multiple grinding formulas can be preset. According to the set experimental parameters, the process can continuously cycle through several preset parameters to reduce the interference from human factors |
| Opening method |
Electric switch operating compartment cover |
| Feed size |
According to the adapter adjustment |
| Output particle size |
﹣5μm |
Number of
grinding platforms |
＞2 |
| Grinding frequency |
0-70Hz |
| Grinding time |
0 seconds - 99 minutes, freely adjustable |
| Cooling range |
Adjustable from 20℃ to -50℃ |
| Cooling time |
It takes about 40 minutes to cool from 20℃ to -50℃ |
| Grinding stroke |
34mm(Vertical) |
| Grinding ball diameter |
0.1-30mm |
| Grinding ball material |
Alloy steel, chromium steel, zirconium oxide, tungsten carbide, quartz sand, etc |
| Accelerate |
Can reach a relatively high speed within 2 seconds |
| Noise level |
＜55db |
| Grinding method |
Vertical bead-type grinding method: Dry grinding, wet grinding, and low-temperature grinding are all applicable |
| External dimensions |
450*450*720mm |
| Weight |
55kg |
| Model |
BXT-YD-96S |
| Purpose |
In the state of liquid ammonia's extremely ultra-low temperature, samples can be ground and crushed for pre-treatment, and large quantities can be processed simultaneously |
| Sample characteristics |
Hard, medium-hard, soft, brittle, elastic, fibrous |
| Adaptive throughput |
(Aluminum alloy adapter)2mIx48,5mlx12.10mlx8,15mx2,25mlx2,50mlx2(PE Adapter)2mlx48,5mlx12,10mlx8.15mlx2,25mx2,50mlx2 |
| Adaptive capacity |
2 ml high-strength EP tube, 5 ml high-strength EP tube, (5 ml, 10 ml, 15 ml, 25 ml) stainless steel grinding jar |
| Display mode |
OLED touch screen |
| Completeness rate |
The sample tubes are fixed by parallel compression to reduce the risk of tube rupture, and the integrity rate of the sample tubes is higher than 99.9% under high-frequency working conditions |
| Automatic liquid nitrogen filling |
The flow rate of liquid nitrogen can be fully controlled. During the operation, it can be filled in at any time and as desired |
| Liquid nitrogen grinding operation method |
Manual and automatic |
| Drive shaft |
The transmission shaft undergoes surface hardening treatment, combined with a precise linear bearing automatic center positioning and tightening device. The service life is ≥ 250,000 minutes |
| Adapter |
Central symmetric matrix adapter, adapter-assisted fixation device |
| Feed size |
According to the adapter adjustment |
| Discharge particle size |
～5μm |
| Number of grinding platforms |
＞2 |
| Grinding frequency |
0-70Hz |
| Grinding time |
0 seconds - 99 minutes, freely adjustable |
| Temperature range |
﹣196℃～﹣100℃ |
| Diameter of grinding balls |
0.1～30mm |
| Grinding bead method |
High-frequency vertical up-and-down grinding method, applying uniform force on the same plane, ensuring the grinding effect and uniformity of the sample, and facilitating parallel experiments |
| Acceleration/deceleration |
1 ～ 60 s adjustable |
| Grinding material for balls |
Alloy steel, chromium steel, zirconium oxide, tungsten carbide, quartz sand, etc. |
| Noise level |
＜54db |
| Liquid nitrogen connection device |
Equipped with an ammonia liquid connection device, it automatically transfers the ammonia from the storage system to the sample grinding system |
| Drive system |
Imported pulse-type motor drive system, with stable performance and long service life |
| Mechanical shock absorption |
Mechanical transmission with multiple shock absorbers, operates smoothly under high-frequency conditions without any jitter, and does not affect other surrounding instruments |
Advantages
Applicable scenarios
- Life Sciences:Used for extracting nucleic acids and proteins, such as in the research of pest control in rice, it can rapidly lyse pest samples and extract the genome, providing high-quality samples for gene editing and sequencing.
- Agricultural Breeding:It can process a large number of plant samples in a short time, such as roots, stems, leaves, seeds, etc., accelerating the assessment of stress resistance and facilitating variety improvement.
- Environmental Monitoring:It can efficiently handle complex samples such as soil and water bodies. Through a fully enclosed design, it ensures the purity of soil microbial DNA extraction, providing reliable data for pollutant analysis.
- Materials Science:For hard materials such as coal and oil shale, through low-temperature brittleness and high-frequency impact, it achieves lossless grinding, improving detection accuracy
Product model classification
1.Vertical freezing grinder:Adjustable from 20 to -50℃

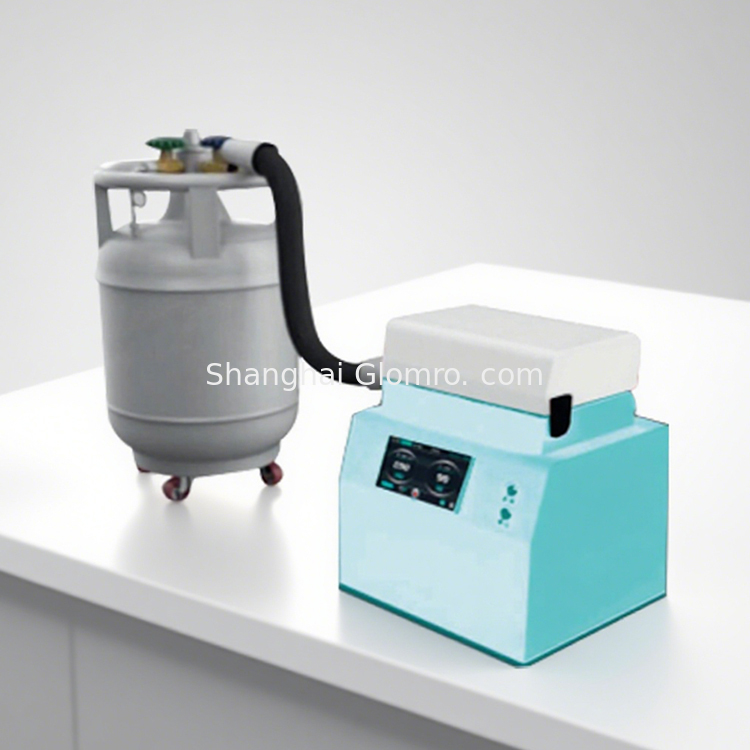

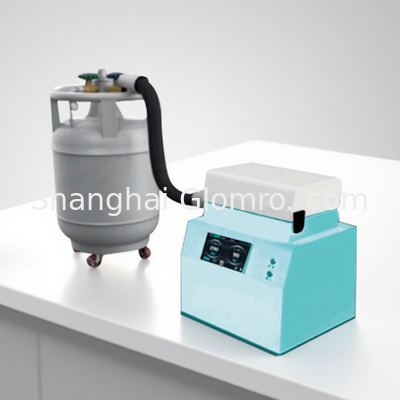

2.Liquid nitrogen freezing grinding instrument:The lowest temperature can reach -196℃
Product details presentation
Product real photo
