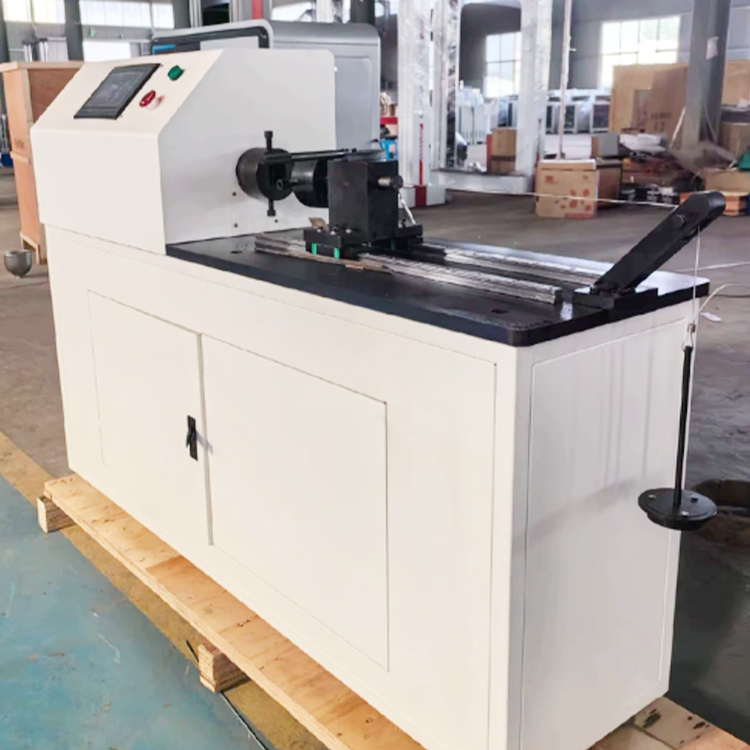

Metal wire torsion testing machine
The metal wire torsion testing machine is a newly developed digital-type, horizontal structure torsion testing instrument by our company. It consists of loading, transmission, and force application parts and is suitable for testing the torsion properties of steel wires, copper, aluminum, and their alloys with nominal diameters ranging from ￠0.1 to ￠10mm. The rotation speed can be adjusted from 30 to 300 revolutions per minute. It mainly measures the ability of the wire to undergo plastic deformation under single and double torsion and displays surface and internal defects of the wire. It is equipped with the necessary accessories and attachments for torsion, enabling one machine to be used for multiple purposes.
Technical Specifications
| Model |
BXT-EZ-10 |
| Work method |
Automatic loading |
| Display mode |
LCD screen display |
| Diameter of metal wire material |
0.1mm﹣10mm |
| The distance between the two chucks |
≥500mm |
| Clamping jaw holding range |
0-3mm |
| The clamping range of the round jaw 1 |
3-6mm |
| The clamping range of the round jaw 2 |
6-10mm |
| Torsion speed |
0.25,0.5,1,1.5,2r/s |
| Speed error |
＜±10% |
| Minimum reading value of rotation number |
0.1 |
| Maximum count capacity |
999.9 |
| Overall dimensions |
1300mm x 430mmx 1000mm |
| Net weight |
200kg |
| Power supply |
220V 50Hz |
