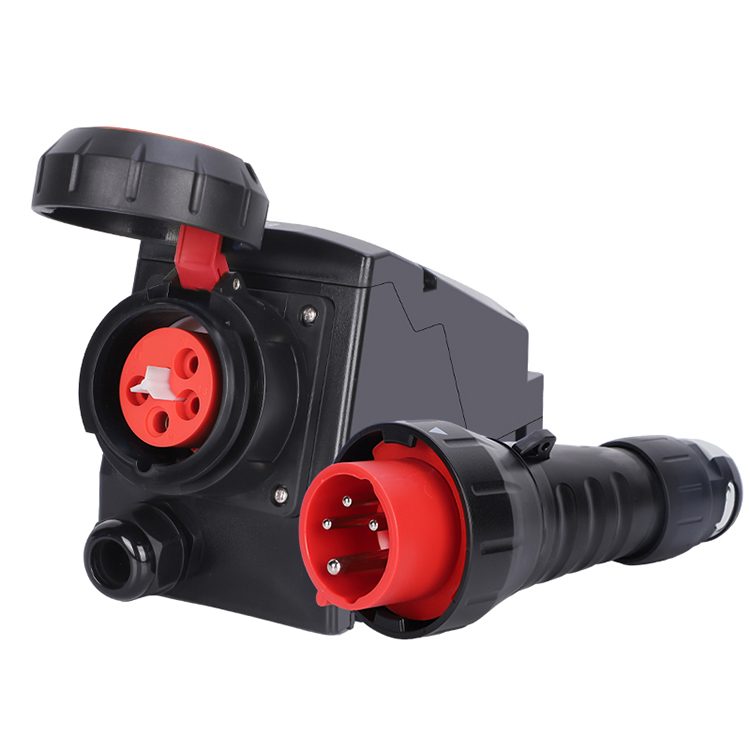

ATEX Industrial Socket And Plug 3p 4P 5P 125amp Waterproof Dustproof 125A 32a

Scope of Application

• Widely used in environments with flammable and explosive gases such as oil extraction, oil refining, chemical industry, offshore oil platforms, oil tankers, etc., as well as in combustible dust areas such as military industry, ports, grain storage, and metal processing;
• Applicable to Zone I and Zone II of explosive gas environments;
• Applicable to explosive gas environments of IIA, IIB, and IIC categories;
• Applicable to Zone 21 and Zone 22 of combustible dust environments;
• Applicable to places containing corrosive gases, dampness, and high protection requirements;
• Applicable to temperature groups T1 to T6;
• Applicable as a connection device for cables and electrical equipment in AC 50Hz, voltage up to 690V (380V) lines.

Product Features

• Explosion-proof type is of enhanced safety and flameproof composite structure;
• The enclosure is made by molding with high-strength glass fiber unsaturated polyester resin, featuring corrosion resistance, impact resistance, and good thermal stability;
• When the rated current is 16A, the number of cores is 3, 4, or 5; when the rated current is 32A, the number of cores is 4 or 5. Users can choose according to their needs;
• It has reliable interlock function. That is, after the plug is inserted into the base, it needs to be rotated to make the arrow on the plug align with "I" to connect, at this time the plug cannot be pulled out; only when the plug is rotated to make the arrow on the plug align with "O" to cut off, at this time the plug can be pulled out.

  Product parameters

  ---



  Model	BXT-16	BXT-32	BXT-63	BXT-125
  Protection level	IP65/66	IP65/66	IP65/66	IP65/66
  Corrosion resistance grade	WF2	WF2	WF2	WF2
  Cores	3/4/5	3/4/5	3/4/5	3/4/5
  Voltage	220/380V	220/380V	220/380V	220/380V
  Current	16A	32A	63A	125A
  Cable entrance	M25*1.5	M40*1.5	M50*1.5	M60*1.5
  Outer diameter of the cable	Φ8~16mm	Φ15~25mm	Φ19~34mm	Φ37~44mm
  Outer diameter of the plug cable	Φ8~19mm	Φ12~28mm	Φ19~28mm	Φ34~53mm
  Explosion-proof rating	Exde IICT6	Exde IICT6	Exde IICT6	Exde IICT6
  Shell material	Engineering plastics	Engineering plastics	Engineering plastics	Engineering plastics
