Category: | Horizontal Refrigerator | Volume: | 680L |
---|---|---|---|
Temperature: | 0°C≤10°C/0°C≤-18°C | Weight: | 115kg |
Power: | 326W | Rated Voltage: | 220V |
Power Consumption: | 5.29kW·h/24h | Overall Dimensions: | 2095*780*945mm |
Packaging Dimensions: | 2155*785*1030mm | Explosion-proof Mark: | Ex Db Ib Mb LlC T4 Gb |
Highlight: | Explosion Proof Horizontal Refrigerator,Horizontal Refrigerator Safety Refrigerator,Chemical Experiment Reagent Warehouse Refrigerated |
| product introduction

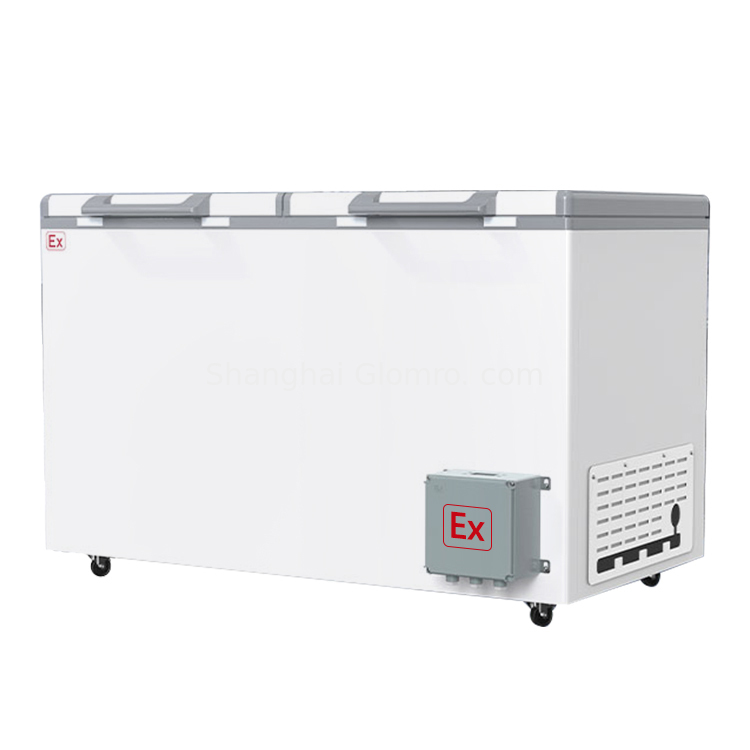

BAXIT Horizontal Explosion proof Refrigerator
The horizontal explosion-proof refrigerator is a special type of refrigeration equipment specially designed for flammable and explosive environments. It is manufactured using explosion-proof technologies and materials to ensure safe operation in hazardous locations (such as oil, chemical industries, laboratories, etc.). The "horizontal" design of this refrigerator means that the box is opened horizontally (similar to an ice cabinet), making it convenient for storing large-capacity or heavy items.
The explosion-proof marking of the explosion-proof refrigerator series is: Ex db ib mb IIC T4 Gb.
Type | BXT-BL-370-WS100L | BXT-BL-370-WS150L | BXT-BL-370-WS200L | BXT-BL-370-WS250L | BXT-BL-370-WS300L |
BXT-BL-2200-WS400L | BXT-BL-2200-WS500L | BXT-BL-2200-WS680L | BXT-BL-2200-WS800L | BXT-BL-2200-WS1000L | |
BXT-BL-2200-WS1200L | BXT-BL-2200-WS1580L | BXT-BL-2200-WS1800L |
| Parameters
Type | BXT-BL-370-WS100L | BXT-BL-370-WS150L | BXT-BL-370-WS200L | BXT-BL-370-WS250L | BXT-BL-370-WS300L |
Category | horizontal refrigerator | ||||
Volume | 100L | 150L | 200L | 250L | 300L |
Temperature | 0°C≤10°C/0°C≤-18°C | ||||
Weight | 28kg | 33kg | 36kg | 53kg | 45kg |
Power | 80W | 85W | 100W | 102W | 120W |
Rated voltage | 220V | 220V | 220V | 220V | 220V |
Power consumption | 0.47kWh/24h | 0.57kWh/24h | 0.68kW·h/24h | 0.64kW·h/24h | 0.77kW·h/24h |
Overall dimensions | 625*523* 885mm |
745*593* 885mm |
965*593* 885mm |
1215*640* 920mm |
1115*653* 885mm |
Internal dimensions | / | / | / | / | / |
Packaging dimensions | 680*555* 930mm |
790*620* 930mm |
1020*620* 930mm |
1275*670* 950mm |
1170*680* 935mm |
Explosion-proof mark | Ex db ib mb llC T4 Gb |
Type | BXT-BL-2200-WS400L | BXT-BL-2200-WS500L | BXT-BL-2200-WS680L | BXT-BL-2200-WS800L | BXT-BL-2200-WS1000L |
Category | horizontal refrigerator | ||||
Volume | 400L | 500L | 680L | 800L | 1000L |
Temperature | 0°C≤10°C/0°C≤-18°C | ||||
Weight | 57kg | 84kg | 115kg | 118kg | 138kg |
Power | 192W | 231W | 326W | 326W | 462W |
Rated voltage | 220V | 220V | 220V | 220V | 220V |
Power consumption | 0.99kW·h/24h | 3.62kW·h/24h | 5.29kW·h/24h | 5.29kW·h/24h | 7.24kW·h/24h |
Overall dimensions | 1325*713*885mm | 1465*780* 945mm |
2095*780* 945mm |
2215*780* 945mm |
2305*930* 945mm |
Internal dimensions | / | 1320*540* 716mm |
/ | / | 2160*690* 716mm |
Packaging dimensions | 1386*745* 930mm |
1525*785* 1030mm |
2155*785* 1030mm |
2275*785* 1030mm |
2365*935* 1030mm |
Explosion-proof mark | Ex db ib mb llC T4 Gb |
Type | BXT-BL-2200-WS1200L | BXT-BL-2200-WS1580L | BXT-BL-2200-WS1800L |
Category | horizontal refrigerator | ||
Volume | 1200L | 1580L | 1800L |
Temperature | 0°C≤10°C/0°C≤-18°C | ||
Weight | 147kg | 171kg | 203kg |
Power | 518W | 550W | 600W |
Rated voltage | 220V | 220V | 220V |
Power consumption | 8.30kW·h/24h | 7.49kW·h/24h | 7.77kW·h/24h |
Overall dimensions | 2575*930* 945mm |
2575*1050* 1035mm |
3305*930* 1065mm |
Internal dimensions | 2430*690* 716mm |
2430*830* 806mm |
3160*690* 836mm |
Packaging dimensions | 2365*935* 1030mm |
2365*1055* 1150mm |
3365*935* 1180mm |
Explosion-proof mark | Ex db ib mb llC T4 Gb |
