Precision Metal Wire Twisting Testing Machine For Laboratory / Industrial

Basic Information
Brand Name: BAXIT
Model Number: BXT-10W/BXT-20W/BXT-500W/BXT-1000W/BXT-2000W/BXT-5000W
Minimum Order Quantity: 1
Price: US $2445.0 - 10600.0 / Unit
Packaging Details: Carton box/Wooden box
Delivery Time: 5-8Working day
Payment Terms: ,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 10000pcs
Detail Information
Model: BXT-10W Maximum Torque: 10N.M
Measurement Range: 2%-500%N.M Relative Error Of Test Torque Indication: Level 1
Relative Indication Error Of Test Torque Repeatability: ≤±1% Torque Resolution: 1/500,000 Of The Maximum Torque, Without Grading
Highlight:

Industrial Use Wire Twisting Testing Machine

,

Precision Metal Wire Twisting Testing Machine

,

Laboratory Wire Twisting Testing Machine


Product Description

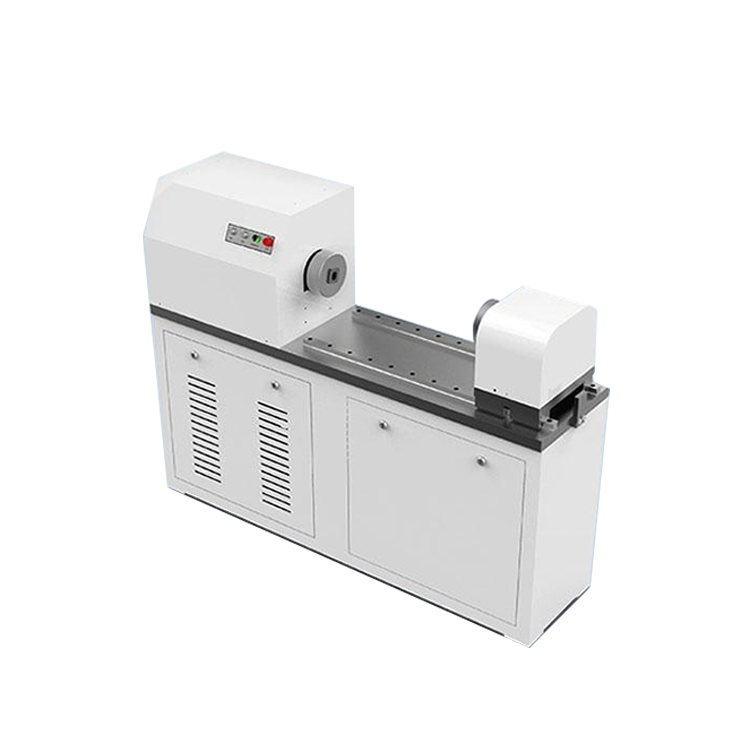

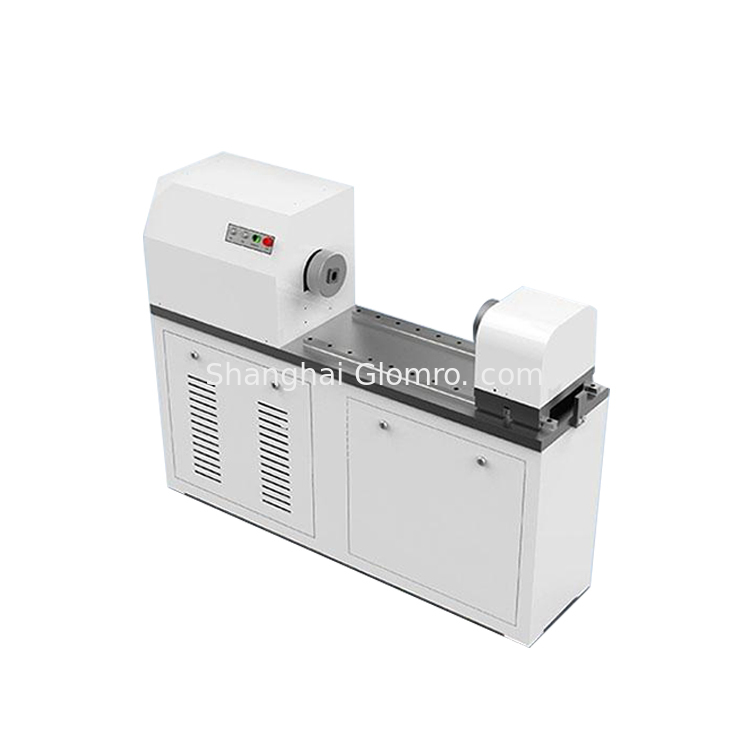

Metal wire torsion testing machine


           The torsion testing machine is mainly used for the torsion testing of hardware components, parts, raw materials, semi-finished parts, and finished parts. The tested samples are installed between adjustable fixtures to adapt to the torsion mechanical performance tests of different tested samples. The testing machine is controlled by a computer and can collect data such as torque, peak value, angle, and curves; the display shows the torque-time, twist-angle-time, and torque-twist-angle test curves of the tested parts; it can realize the storage, extraction, and printing of test data, as well as the storage and printing of test reports.

Precision Metal Wire Twisting Testing Machine For Laboratory / Industrial 0

Precision Metal Wire Twisting Testing Machine For Laboratory / Industrial 1

Precision Metal Wire Twisting Testing Machine For Laboratory / Industrial 2

Digital display type torsion testing machine
Model BXT-10W BXT-20W BXT-500W BXT-1000W BXT-2000W BXT-5000W
Maximum torque 10N.M 20N.M 500N.M 1000N.M 2000N.M 5000N.M
Measurement range 2%-500%N.M
Relative Error of Test Torque Indication Level 1
Relative Indication Error of Test Torque Repeatability ≤±1%
Torque resolution 1/500,000 of the maximum torque, without grading
Moving Distance Between Chucks 400mm
Coaxiality Accuracy Between Two Fixtures Within a range of 1000mm≤∅0.2mm
Torsion angle measurement range 0~10000°
Relative error of the torsion angle measurement ±1%
Torsion angle resolution ±0.001°
Torsion angle accuracy 0.009°
Torsional speed 0.01 - 720°/min infinitely variable speed control
Relative error of torque reversal speed Within ±1.0% of the set value
Power supply 220V 50Hz AC
Torsion Direction Forward rotation  Reverse rotation

Precision Metal Wire Twisting Testing Machine For Laboratory / Industrial 3

Precision Metal Wire Twisting Testing Machine For Laboratory / Industrial 4

Precision Metal Wire Twisting Testing Machine For Laboratory / Industrial 5
