| Place of Origin: | China |
|---|---|
| Brand Name: | BAXIT |
| Model Number: | BXT-HMS-03B/05B/09B/12B/20B/30B/40B/50B/60B |
| Minimum Order Quantity: | 1 |
| Price: | US$3587-12238/unit |
| Packaging Details: | Carton box/Wooden box |
| Delivery Time: | 5-8Working day |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
| Supply Ability: | 10000pcs |
| Model: | BXT-HMS-60B | Refrigeration（kw）: | 60 |
|---|---|---|---|
| Heating（kw）: | 32 | Dehumidification（kg/h）: | 50 |
| Horsepower(P): | 24 | Circulating Air Volume(m³/h): | 12000 |
| Applicable Area: ㎡ Floor Height: 3 Meters: | 200﹣240 | Power Supply(V): | 380V50Hz |
Computer room precision air conditioner
The computer room air conditioner (CRAC) is a special type of air conditioner specifically designed for computer rooms, data centers, communication base stations, etc., where high concentrations of electronic equipment are present. Its core function is to provide a stable temperature and humidity environment, high cleanliness air, and reliable continuous operation guarantee for the equipment, in order to ensure the stable performance, extended lifespan, and data security of the electronic devices.
The temperature adjustment range is 16 - 30°C. The humidity control range can be freely adjusted from RH 30% to 95%, with a humidity control accuracy of ±3% RH, and a temperature accuracy of ±1°C. It features more reliable performance and more flexible functions.
| Model | BXT-HMS-03B | BXT-HMS-05B | BXT-HMS-09B | BXT-HMS-12B | |
| Refrigeration(kw) | 3.5 | 5 | 9.2 | 12 | |
| Heating(kw) | 2 | 3.5 | 5 | 7 | |
| Dehumidification(kg/h) | 2 | 3 | 7 | 10 | |
| Horsepower(P) | 1.5 | 2 | 3 | 5 | |
| Circulating air volume(m³/h) | 550 | 1000 | 2200 | 3000 | |
| Applicable area: ㎡ Floor height: 3 meters |
10﹣15 | 15﹣25 | 25﹣35 | 35﹣55 | |
| Power supply(V) | 220V50Hz | 220V50Hz | 380V50Hz | 380V50Hz | |
| Total capacity of the unit group(kw) | 5 | 7.2 | 11.2 | 15.5 | |
| Indoor Unit Size(mm) L*W* H |
800*480*1825 | 800*480*1825 | 960*580*2025 | 960*580*2025 | |
| outdoor unit Size(mm) L*W* H |
857*440*616 | 857*440*616 | 1093*456*813 | 1193*456*963 | |
| Connection pipe size(mm) | High pressure | 9.52 | 9.52 | 9.52 | 9.52 |
| Low pressure | 12.7 | 12.7 | 12.7 | 12.7 | |
| Controller | PLC Intelligent touch screen | ||||
| Temperature control range and accuracy | 18-30℃ Precision±1℃ | ||||
| Humidity control range and accuracy | 50-70% Precision±5%RH(Customizable precision±2%RH) | ||||
| Refrigerant type | (R22 R407C R410 R134a)Optional | ||||
| Refrigerant throttling method | Thermostatic expansion valve | ||||
| Auxiliary electric heating | Electric heating type | ||||
| Humidifier form | Electrode type / Electric heating type | ||||
| Model | BXT-HMS-20B | BXT-HMS-30B | BXT-HMS-40B | BXT-HMS-50B | BXT-HMS-60B | |
| Refrigeration(kw) | 20 | 30 | 40 | 50 | 60 | |
| Heating(kw) | 12 | 18 | 21 | 28 | 32 | |
| Dehumidification(kg/h) | 13 | 20 | 30 | 40 | 50 | |
| Horsepower(P) | 8 | 10 | 16 | 20 | 24 | |
| Circulating air volume(m³/h) | 4200 | 5500 | 8000 | 10000 | 12000 | |
| Applicable area: ㎡ Floor height: 3 meters |
60﹣80 | 80﹣120 | 130﹣160 | 160﹣200 | 200﹣240 | |
| Power supply(V) | 380V50Hz | 380V50Hz | 380V50Hz | 380V50Hz | 380V50Hz | |
| Total capacity of the unit group(kw) | 22 | 35 | 43 | 53 | 65 | |
| Indoor Unit Size(mm) L*W* H |
1222*742*1885 | 1502*952*1975 | 1652*952*1985 | 1652*952*2083 | 1820*952*2185 | |
| outdoor unit Size(mm) L*W* H |
788*788*925 | 1193*456*963 | 788*788*925 | 888*838*1085 | 888*838*1085 | |
| Connection pipe size(mm) | High pressure | 16 | 9.52*2 | 16*2 | 19*2 | 19*2 |
| Low pressure | 19 | 12.7*2 | 19*2 | 22*2 | 22*2 | |
| Controller | PLC Intelligent touch screen | |||||
| Temperature control range and accuracy | 18-30℃ Precision±1℃ | |||||
| Humidity control range and accuracy | 50-70% Precision±5%RH(Customizable precision±2%RH) | |||||
| Refrigerant type | (R22 R407C R410 R134a)Optional | |||||
| Refrigerant throttling method | Thermostatic expansion valve | |||||
| Auxiliary electric heating | Electric heating type | |||||
| Humidifier form | Electrode type / Electric heating type | |||||

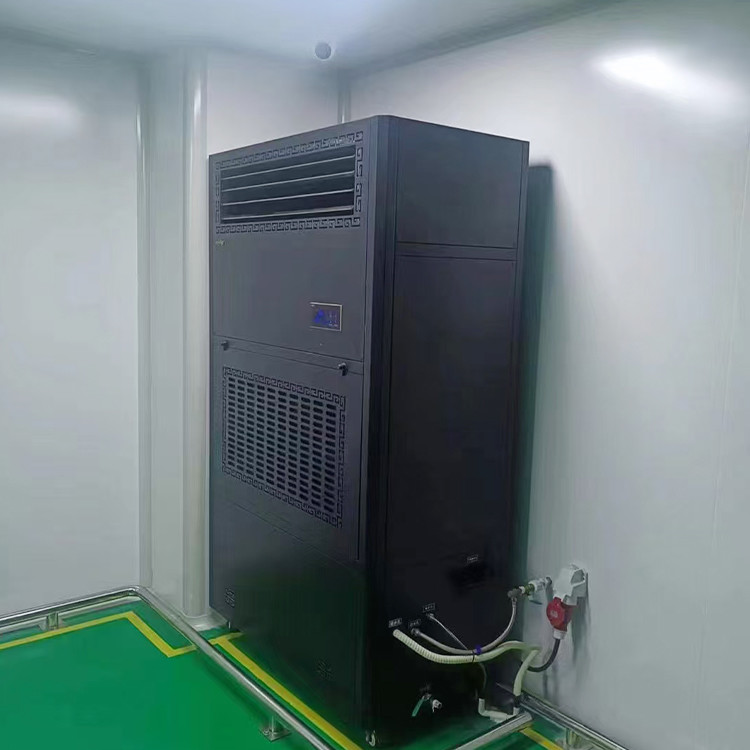

Actual installation diagram
