| Brand Name: | BAXIT |
|---|---|
| Model Number: | BXT-OL90A /OL180A/OL210A/OL280A/OL400A/OL550A/OL750A/OL1500A |
| Minimum Order Quantity: | 1 |
| Price: | US$85-251/unit |
| Packaging Details: | Carton box/Wooden box |
| Delivery Time: | 5-8Working day |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 10000pcs |
| Model: | BXT-OL180A | Power Supply: | 220V/50HZ |
|---|---|---|---|
| Power: | 110W | Vacuum Degree: | ﹣90KPA(﹣680mmHg) |
| Noise: | ≤50dB(A) | Maximum Suction Rate: | 45L/MIN |
| Configure Capacitors: | 5μF | Thermal Protector: | 135±5℃ |
| Inlet And Outlet Threaded Connections: | G1/4 | Rated Rotational Speed: | 1400R/MIN |
| Highlight: | Portable vacuum device air pump,45 liters per minute air pump,oil-free air pump |
||

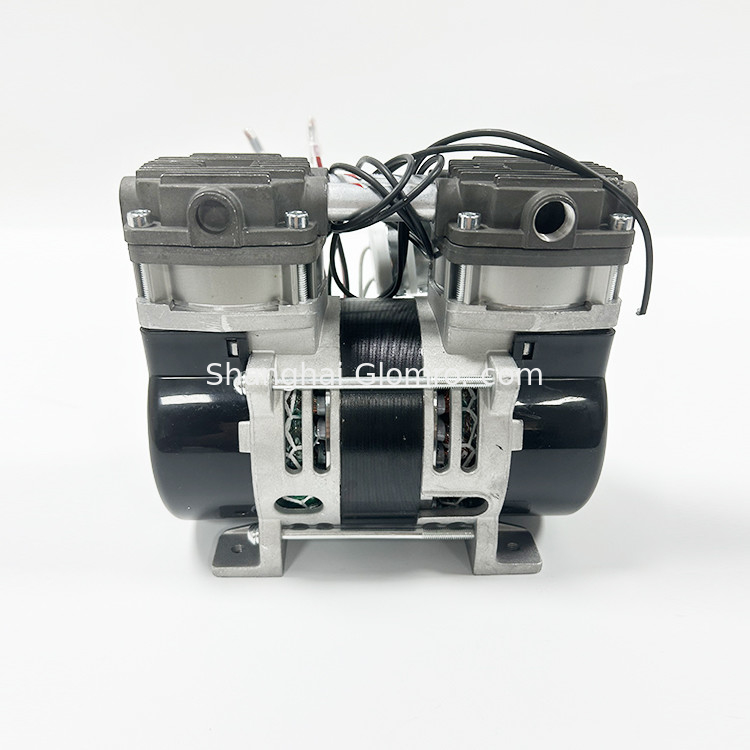

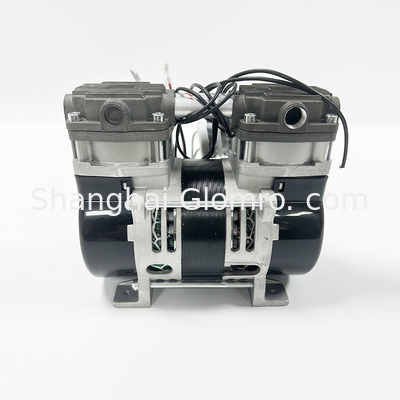

Oil-free piston vacuum pump
The oil-free piston vacuum pump is a type of vacuum equipment that achieves gas suction through the reciprocating motion of the piston, and does not require lubricating oil for sealing and lubrication. Its core feature is cleanliness and no oil contamination
Product features
1.The working process does not use lubricating oil. This prevents oil vapors or oil particles from entering the vacuum system. It is suitable for clean fields such as food, medicine, and electronics.
2.There is no need to replace the lubricating oil regularly, which reduces the maintenance workload and cost, and is suitable for long-term continuous operation
3.The piston structure is mature and has high mechanical strength. It can withstand certain amounts of particle dust or moisture (requires a filtering device).
| Selection Guide | Level 1 | Level 2 |
| Low vacuum level, fast gas extraction speed | High vacuum level, slow evacuation speed |
