| Place of Origin: | Germany |
|---|---|
| Brand Name: | ARI |
| Certification: | CE |
| Model Number: | ARI-PREMIO 2.2KN |
| Minimum Order Quantity: | 1 |
| Price: | USD642/unit |
| Packaging Details: | Carton box |
| Delivery Time: | 1-3 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 2000units/month |
| Highlight: | Original ARI PREMIO Electric Actuator,2.2KN ARI PREMIO Electric Actuator,5.0KN ARI PREMIO Electric Actuator |
||
|---|---|---|---|

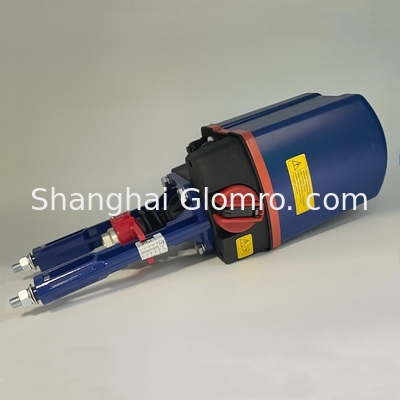

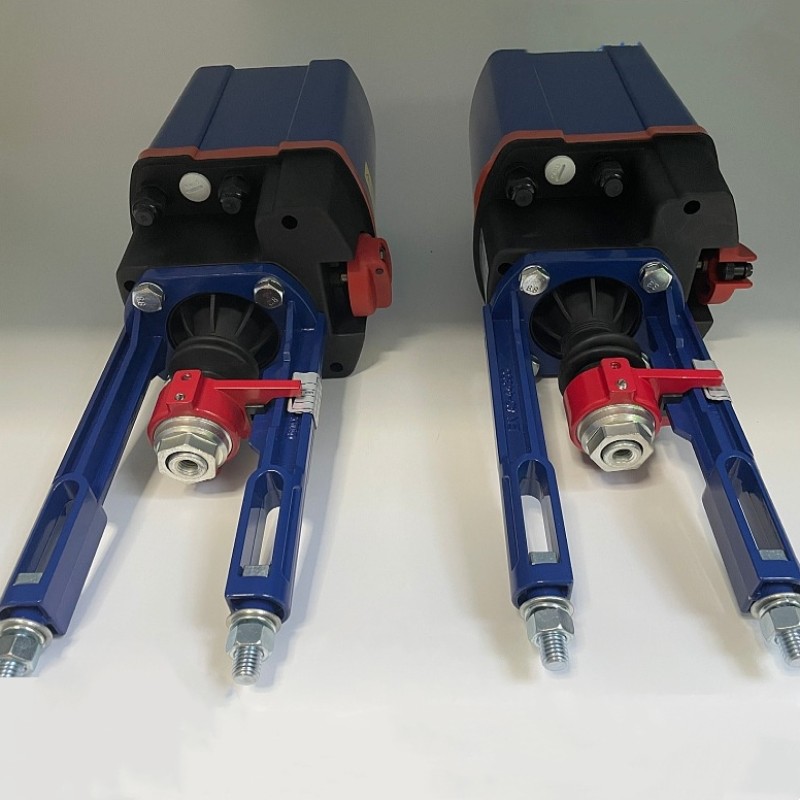

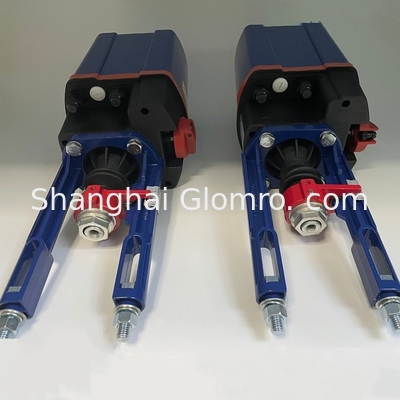

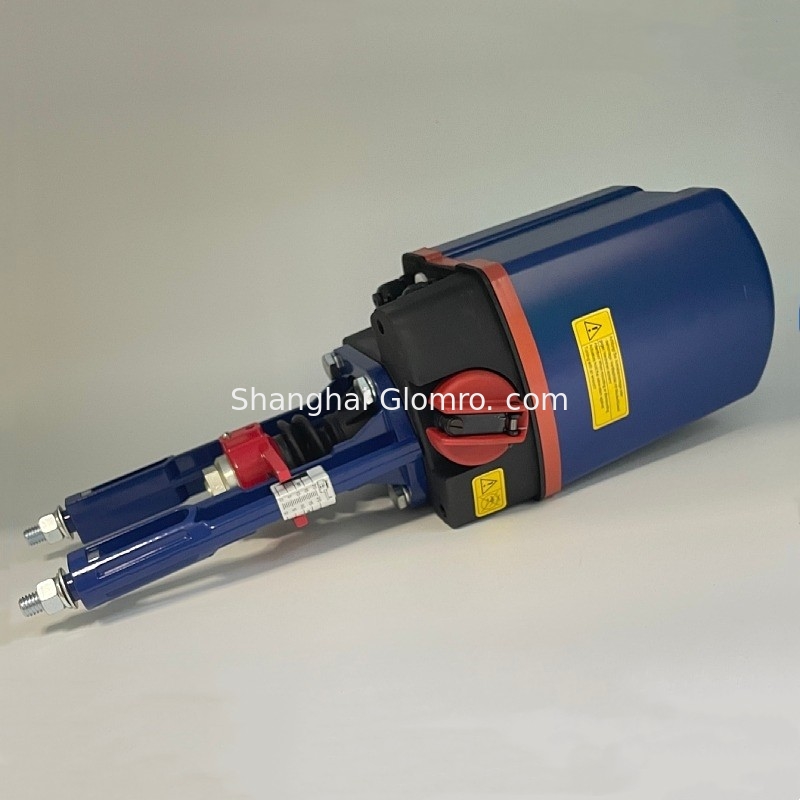

Electric actuator 2.2/5.0KN
Features:
1. The linear electric actuator mechanism is used to regulate valves and on/off valves
2. The exterior design is compact and beautiful, with modular built-in components that are reliable in performance and easy to maintain and replace
3. The input signal has a 3-bit step signal, analog signal (0, 4-20Ma, 0-10VDC) or fieldbus control operation
4. Built in torque switch and limit switch
5. A butterfly spring is installed inside the actuator coupling to achieve the process operation after the valve is fully closed, ensuring that the valve is tightly closed
6. Protection level IP65
7. The actuator mechanism has overload protection function
8. Valve position feedback can be achieved through potentiometer or continuous indication of 4-20Ma through locator
9. Manual operation is standard configuration
10. Other optional accessories: potentiometer, 4-20Ma intelligent module, heater, etc
| Model | ARI-PREMIO 2.2KN |
| Thrust | 2.2KN |
| Supply power | AC230V.AC110V.AC24V.50/60Hz |
| Protection level | IP65, DIN VDE 0470 |
| Ambient temperature | -20℃~+70℃ |
| Torque switch | 2 fixed connections, switch capacity 10A250V |
| Travel switch | 2 fixed connections, switch capacity 10A250V |
| Cable interface | 3xM16 |
| Manual operation | Yes (regular rotation) |
| Installation location | Horizontal, perpendicular above the valve body (can rotate 90 ℃ in the vertical direction) |
| Weight | 5.4KG |
| Model | ARI-PREMIO 5.0KN |
| Thrust | 5.0KN |
| Supply power | AC230V.AC110V.AC24V.50/60Hz |
| Protection level | IP65, DIN VDE 0470 |
| Ambient temperature | -20℃~+70℃ |
| Torque switch | 2 fixed connections, switch capacity 10A250V |
| Travel switch | 2 fixed connections, switch capacity 10A250V |
| Cable interface | 3xM16 |
| Manual operation | Yes (regular rotation) |
| Installation location | Horizontal, perpendicular above the valve body (can rotate 90 ℃ in the vertical direction) |
| Weight | 5.4KG |
