Name: BAXIT 300ml Per Minute Micro Diaphragm Water Pump Liquid Pump Replace NF30
Brand: Shanghai Glomro Industrial Co., Ltd.
SKU: BXT-NF30
Price: 165 USD
Availability: InStock

BAXIT 300ml Per Minute Micro Diaphragm Water Pump Liquid Pump Replace NF30

Basic Information

Place of Origin:	China
Brand Name:	BAXIT
Certification:	CE
Model Number:	BXT-NF30

Minimum Order Quantity:	1unit
Price:	USD165/unit
Packaging Details:	Carton
Delivery Time:	1-3 working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000units

Get Best Price Contact Now

Detail Information

Model:

BXT-NF30

Power Supply:

DC24V/12V

Flow Rate:

300ml/min

Highlight:

NF30 Micro Diaphragm Water Pump

Liquid Micro Diaphragm Water Pump

300ml/Min Micro Diaphragm Water Pump

Product Description

BAXIT 300ml per minute Micro Diahpragm Water Pump Liquid Pump Replace NF30

Introduction:

Diaphragm pump is a reciprocating pump. This is a positive displacement pump. The flexible diaphragm in the pump head moves up and down through eccentric motion on the connecting rod and motor shaft. During the downward stroke, the medium is sucked into the pump chamber, and during the upward stroke, it is discharged. The inner valve installed inside the pump head serves as a check valve, controlling the flow direction.

Main feature:

1. Non-polluting transportation, discharge and compression;

2. High air tightness;

3. Low noise and low vibration;

4. Small size, light weight and high performance;

5, 100% oil-free, maintenance-free;

Daily maintenance:

This product is an oil-free diaphragm vacuum pump, no need to refuel. If the inside is clogged or contaminated, open the top four screws, clean the gasket, and clean the pump membrane. If there is serious pollution, resulting in air leakage or insufficient air supply during the sampling process, the pump membrane should be replaced in time.

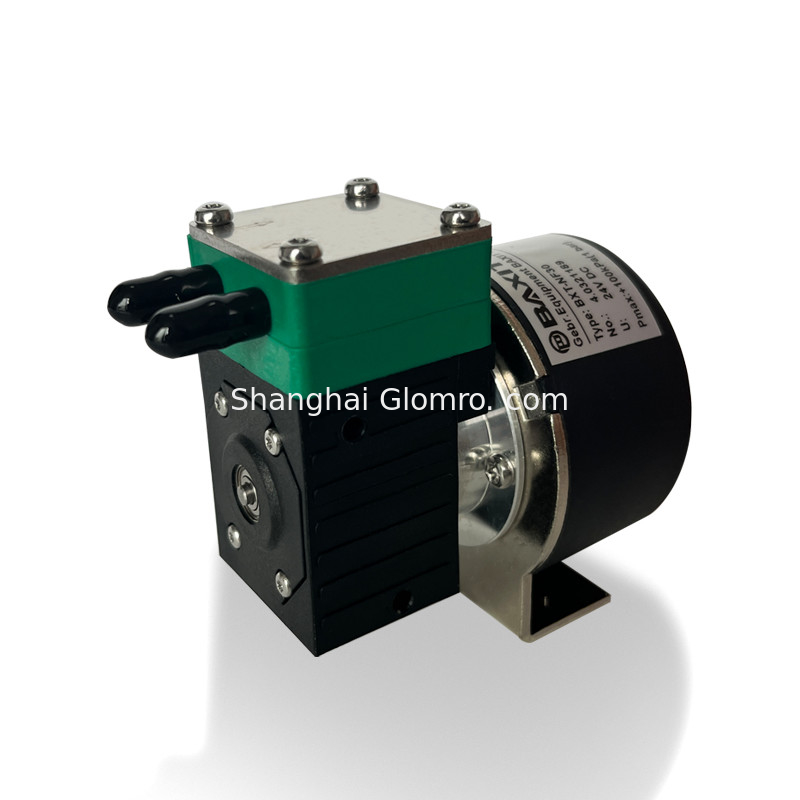

BAXIT 300ml Per Minute Micro Diaphragm Water Pump Liquid Pump Replace NF30 1

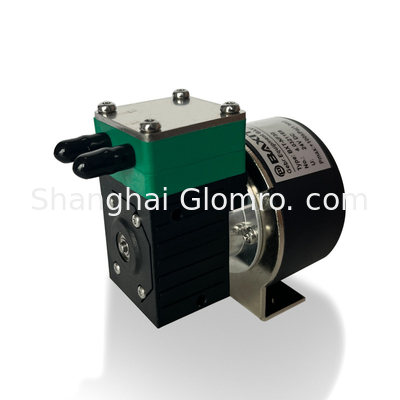

BAXIT 300ml Per Minute Micro Diaphragm Water Pump Liquid Pump Replace NF30 2

BAXIT 300ml Per Minute Micro Diaphragm Water Pump Liquid Pump Replace NF30 3

BAXIT 300ml Per Minute Micro Diaphragm Water Pump Liquid Pump Replace NF30 4
