| Place of Origin: | China |
|---|---|
| Brand Name: | BAXIT |
| Certification: | CE |
| Model Number: | PM30643-86 |
| Minimum Order Quantity: | 1unit |
| Price: | USD258/unit |
| Packaging Details: | Carton |
| Delivery Time: | 1-3 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000units |
| Model: | PM30643-86 | Power Supply: | DC24V/12V |
|---|---|---|---|
| Working Pressure: | 240kpa（2.4bar） | ||
| High Light: | Gas Micro Diaphragm Sampling Pump,12/24V Micro Diaphragm Sampling Pump,Diaphragm Sampling Gas Pump |
||

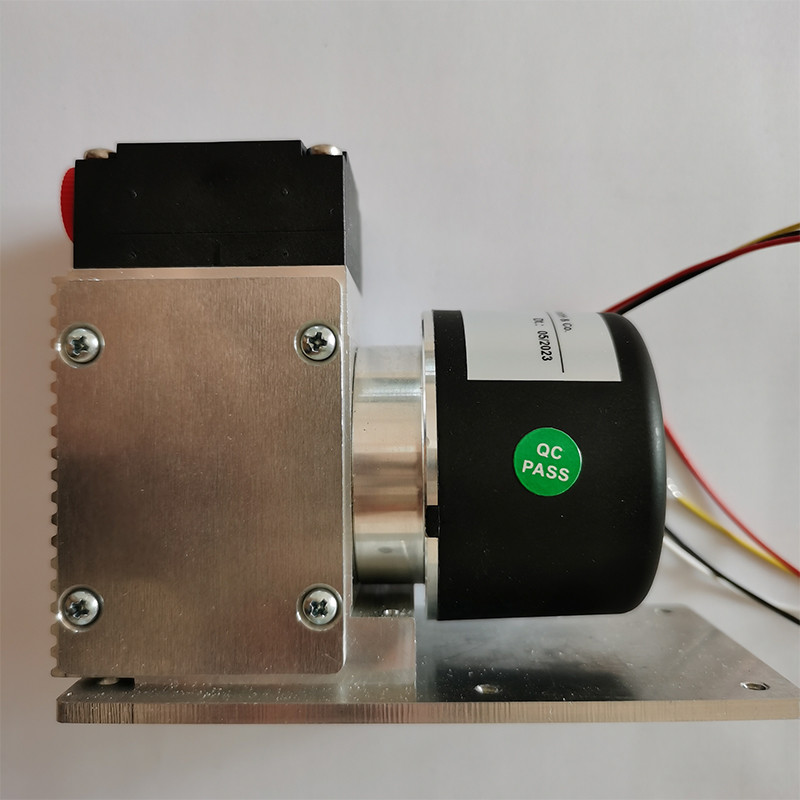

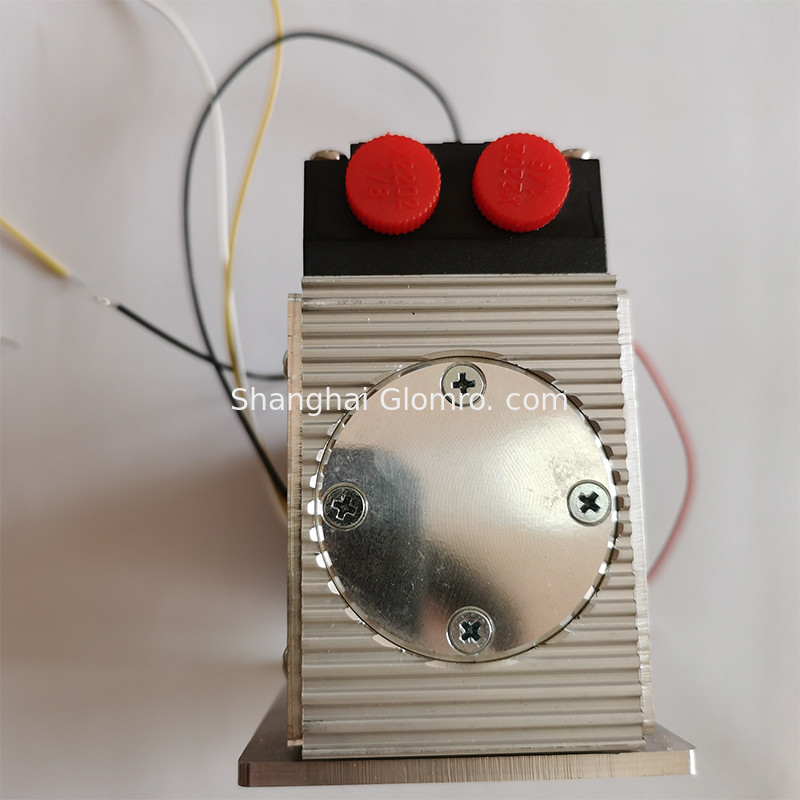

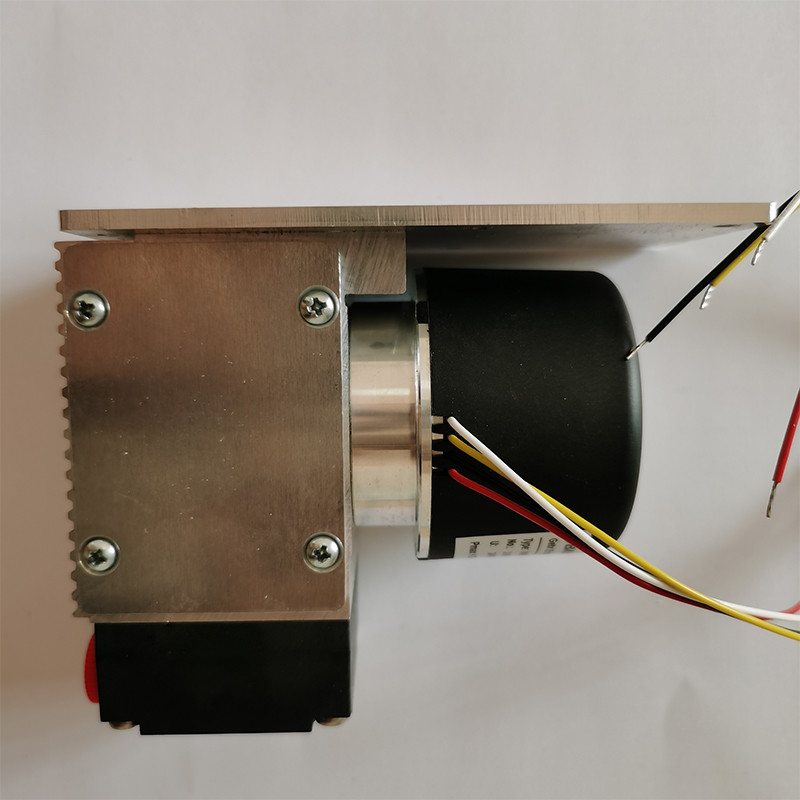

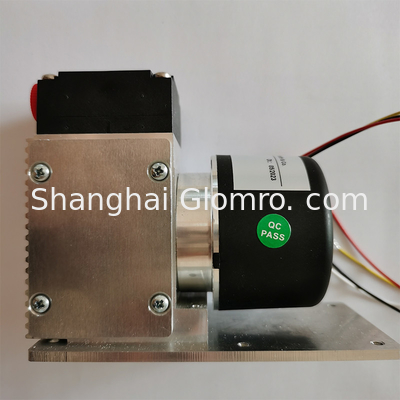

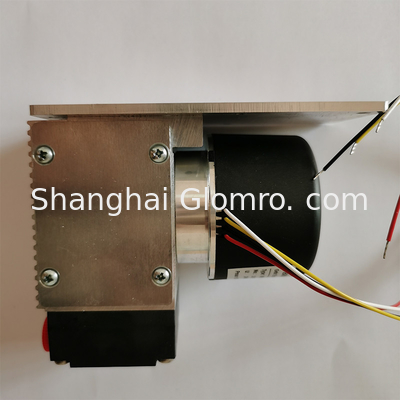

BAXIT Replaces KNF 12/24V Micro Diaphragm Sampling Pump PM30643-86 Gas Pump
Adapt to the environment:
This product is used in industrial process gas continuous analysis system (extraction measurement), for gas extraction, internal anti-corrosion treatment, especially suitable for flue gas analysis. Extraction of gases such as SO2, NOX, CO2, CO, N2, O2, or a mixer can be performed.
Technical Parameters:
(1) Model:PM30643-86
(2) Air pumping capacity: 6L/min
(3) Power supply: DC24V/12V
(4) Interface: 1/8'' internal thread
(5) Piping: Φ6 PTFE tube
(6) Working pressure: Pmax: 2.4 Bar
(7) Weight: 0.3 Kg
Installation method:
This product is panel mounted, the mounting hole spacing is: 48mm, 48mm. The mounting hole size is: 4-Φ5.
Daily maintenance:
This product is an oil-free diaphragm vacuum pump, no need to refuel. If the inside is clogged or contaminated, open the top four screws, clean the gasket, and clean the pump membrane. If there is serious pollution, resulting in air leakage or insufficient air supply during the sampling process, the pump membrane should be replaced in time.
