| Place of Origin: | China |
|---|---|
| Brand Name: | BAXIT |
| Model Number: | BXT-WB-4 |
| Minimum Order Quantity: | 1 |
| Price: | USD 4932~31569 per Unit |
| Delivery Time: | 5-8 days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 999999 per day |
| Model: | BXT-WB-4 | Cavity Capacity: | 52L |
|---|---|---|---|
| Power Supply: | 220-240V AC50/60Hz 8A | Microwave Power: | 0-1600W |
| Control Method: | 8-inch TFT-LED (800480 Color) Touch Screen | Operating System: | English |
| Temperature Control Range: | 0-300°C | Temperature Control Accuracy: | ±0.5°C |
| Temperature: | ≥300°C | Pressure: | ≥15000psi |
| Material: | PTFE Material | Explosion-proof Outer Casing Material: | PEEK Aerospace Material |
| High Light: | Fully Automatic Microwave Digestion Instrument,Laboratory Microwave Extraction Digestion Instrument |
||
| Product Parameters | ||||

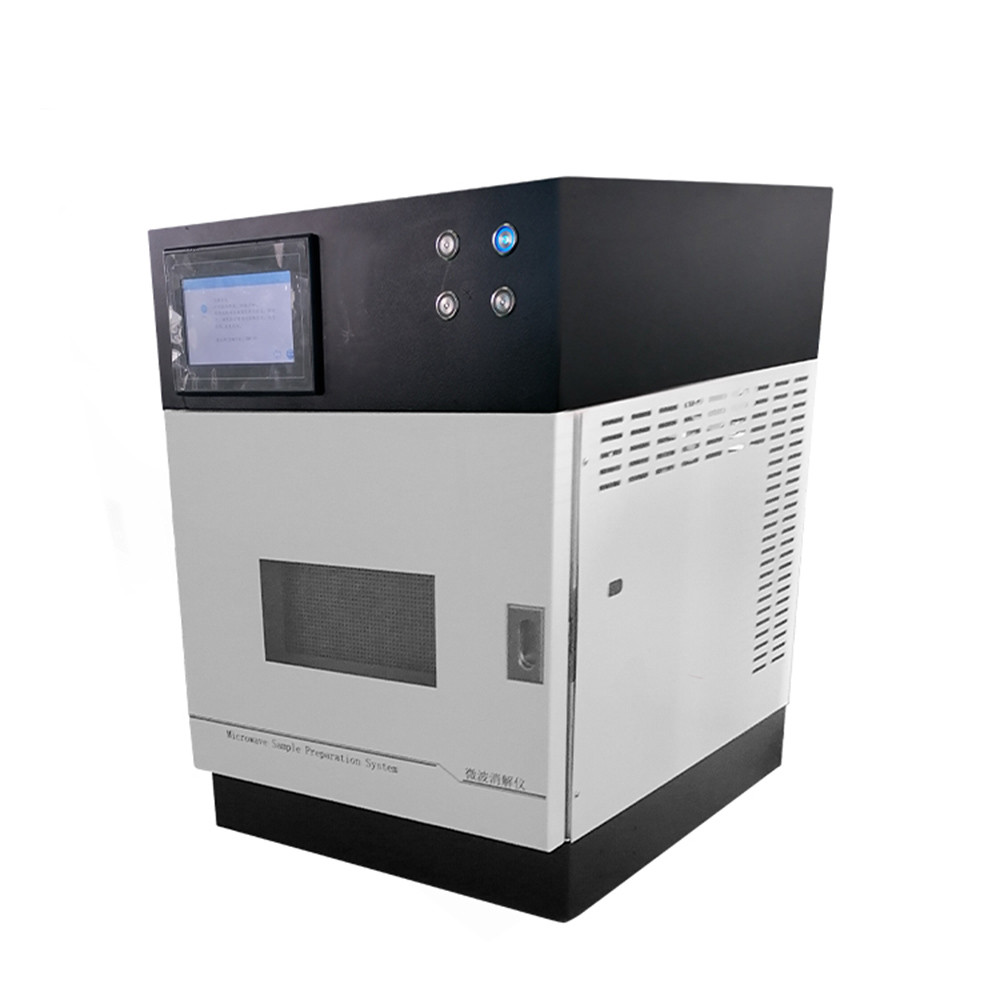

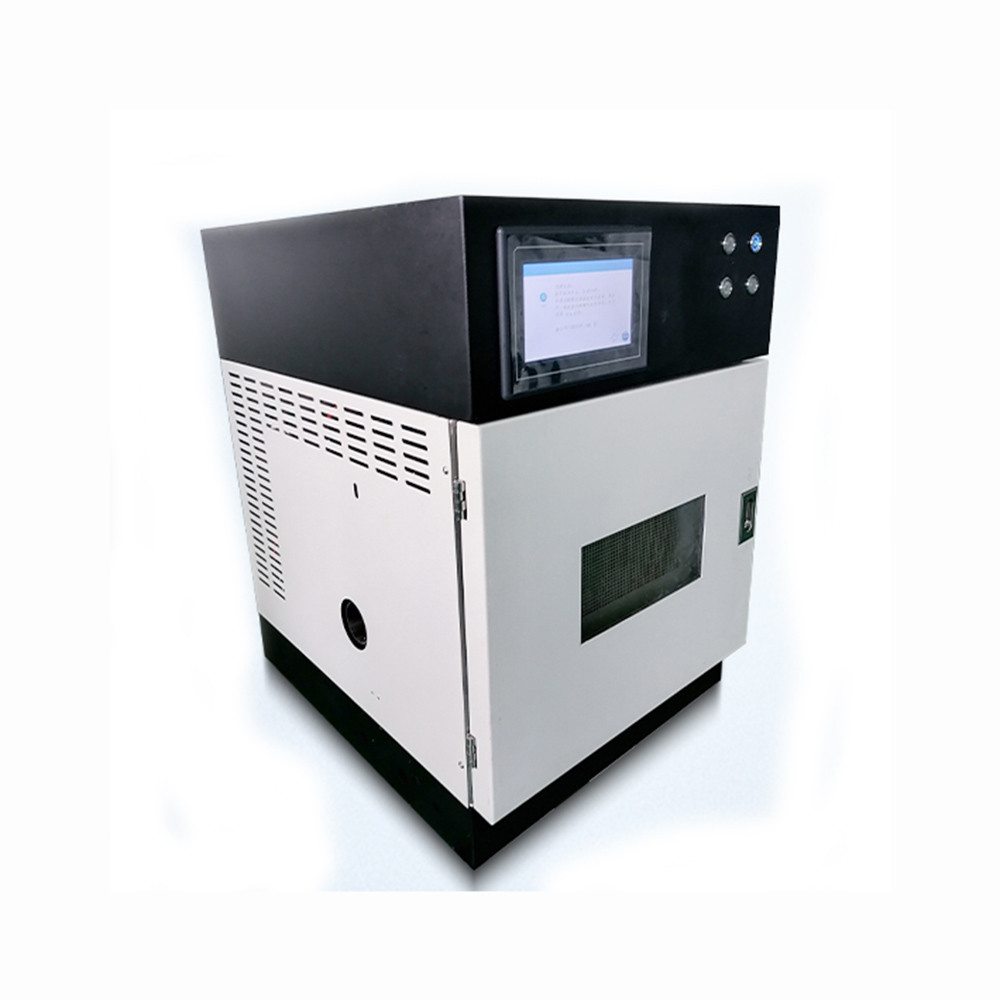

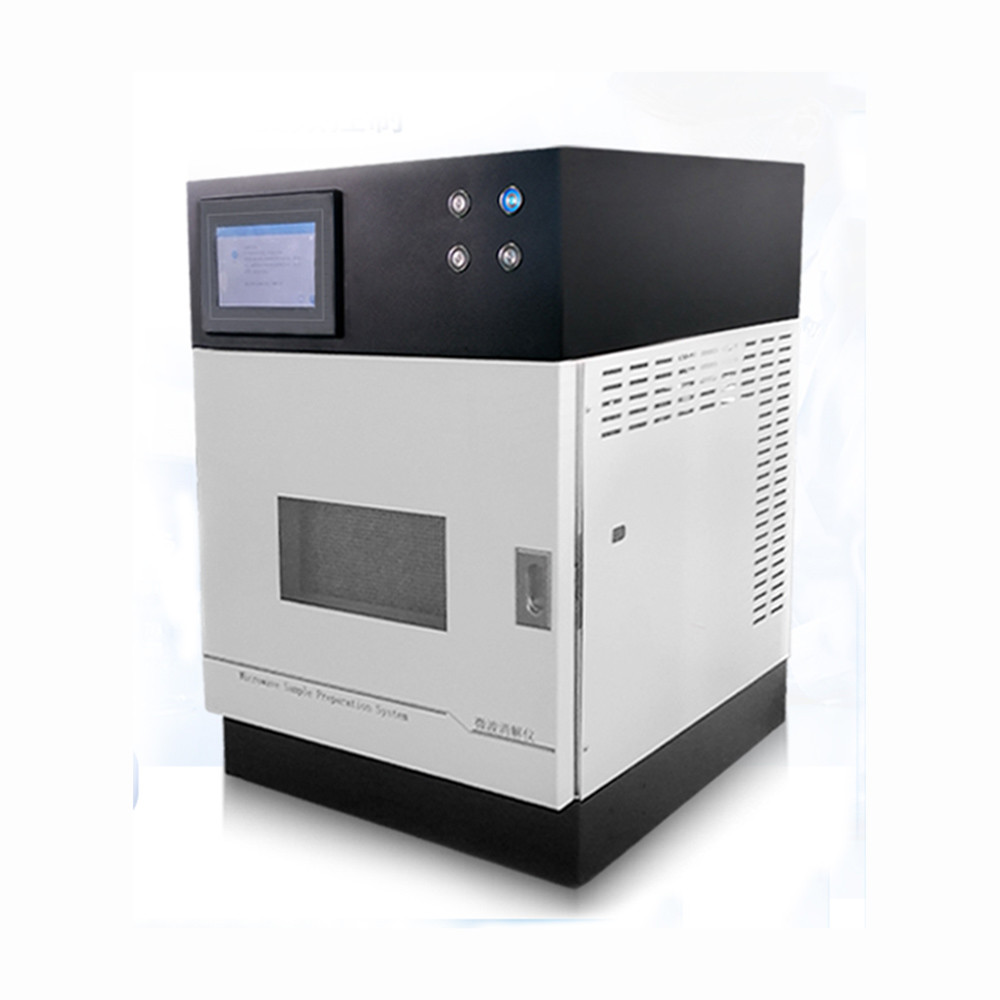

| BAXIT Microwave Digestion System | ||||
| Model | BXT-WB-4 | BXT-WB-6 | BXT-WB-10 | BXT-WB-12 |
| Cavity Capacity | 52L | |||
| Cavity Material | 316 stainless steel chamber, can be sprayed with Teflon coating | |||
| Power Supply | 220-240V AC50/60Hz 8A | |||
| Microwave Power | 0-1600W | |||
| Microwave Output Characteristics |
Microwave non-pulse continuous automatic frequency conversion control, 0-100% automatic output | |||
| Microwave Uniformity | Vertical bidirectional waveguide design, three-dimensional output technology, matching harmonic power frequency to achieve a high degree of field uniformity | |||
| Control Method | 8-inch TFT-LED (800480 color) touch screen | |||
| Operating System | English | |||
| Temperature Control Range | 0-300°C | |||
| Temperature Control Accuracy | ±0.5°C | |||
| Pressure Control System | When the pressure exceeds the upper limit of the digestion tank, the pressure is automatically released and the gas is discharged through the exhaust fan. |
|||
| Pressure Control Accuracy | 0.01MPa, automatic adjustment/stop of microwave emission and automatic alarm for overpressure | |||
| Temperature | ≥300°C | |||
| Pressure | ≥15000psi | |||
| Material | PTFE material | |||
| Explosion-proof Outer Casing Material |
PEEK aerospace material | |||
| Inner Tube Reaction Volume |
72mL | |||
| High Pressure Digestion Tank Batch Processing Capacity |
≥4 sample batches (can be upgraded to 40 bits without changing the rotor) |
≥6 sample batches (can be upgraded to 40 bits without changing the rotor) |
≥10 sample batches (can be upgraded to 40 bits without changing the rotor) |
≥12 sample batches (can be upgraded to 40 bits without changing the rotor) |
