Detail Information

Model:	BXT-5L	Power Supply:	220V,50Hz
Minimum Allowable Mixing Volume:	100ml	Minimum Allowable Amount Of Emulsification:	500ml
The Maximum Allowable Amount Of Emulsification:	1000ml	Working Temperature:	300°C
Achievable Vacuum:	-0.0.98MPa	Maximum Processing Viscosity:	100,000CP
Stirring Motor Power:	120W	Stirring Speed Range:	0-230rmp
Stirring Paddle Configuration:	Anchor Type Spiral Belt Scraping Mixing Paddle	Scraper Material:	PTFE
Homogeneous Motor Power:	500W	Homogenization Speed Range:	8000-28000rmp
Homogeneous Working Head Configuration:	20DG	Vacuum Port Outer Diameter:	10mm
Glass Kettle Jacket Inlet And Outletouter Diameter:	12mm	Dimensions:	4006501100mm
Standard Weight:	35KG
Highlight:	vacuum homogenizer cream mixer , Cream Mix Laboratory Emulsifier , 5L Homogenizing Cream Laboratory Emulsifier

Product Description

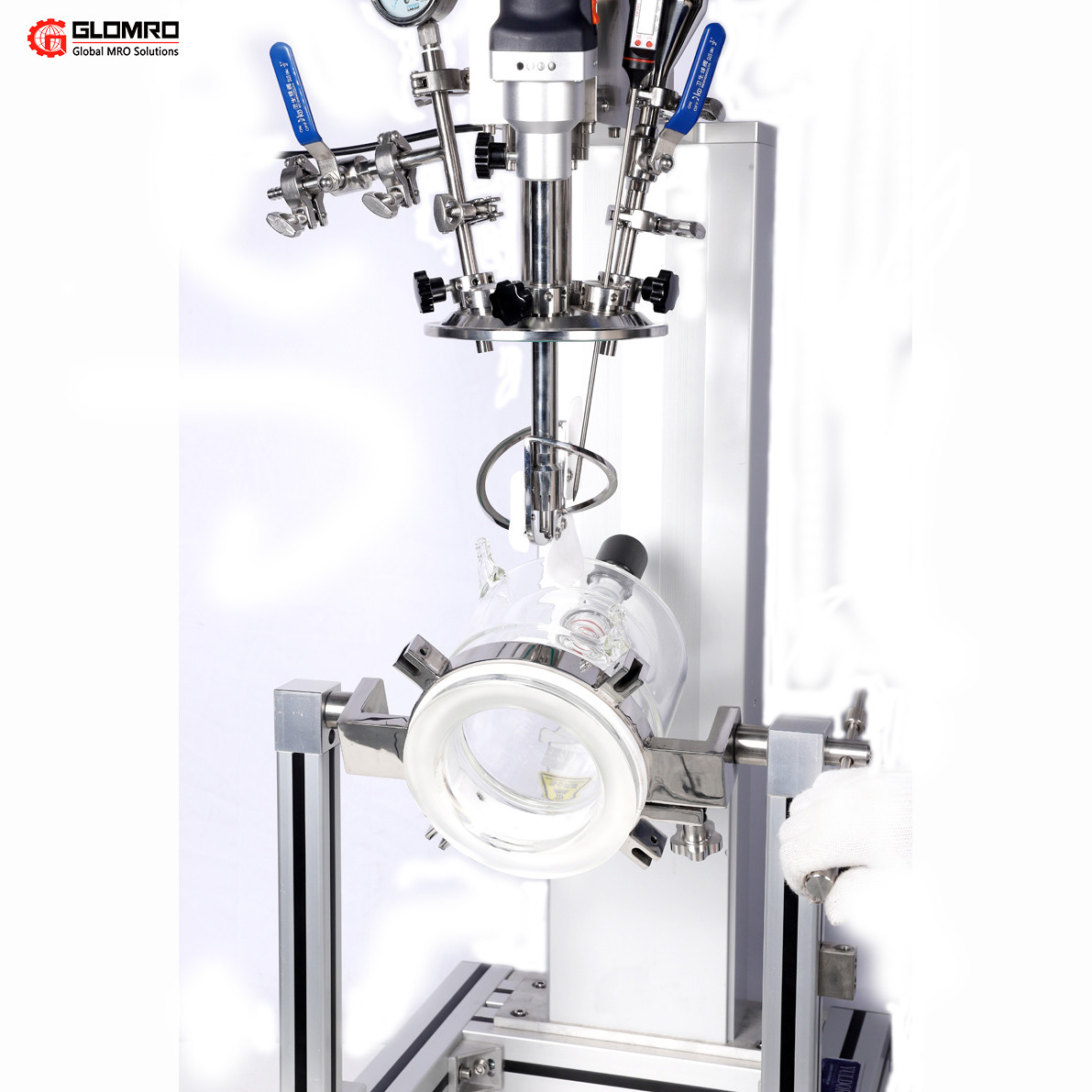

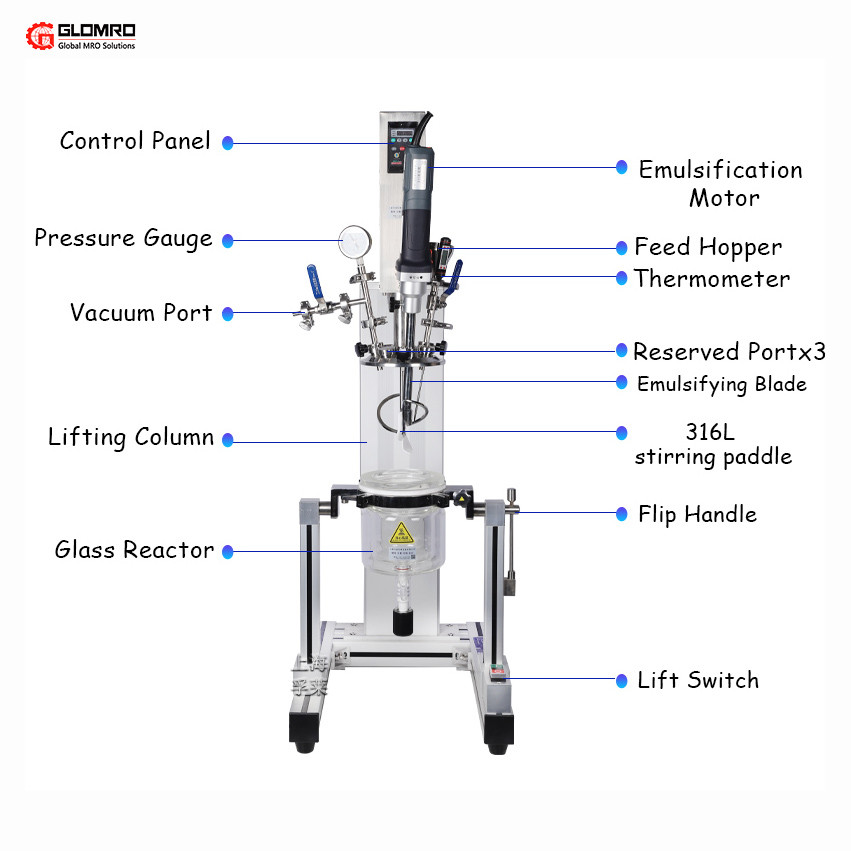

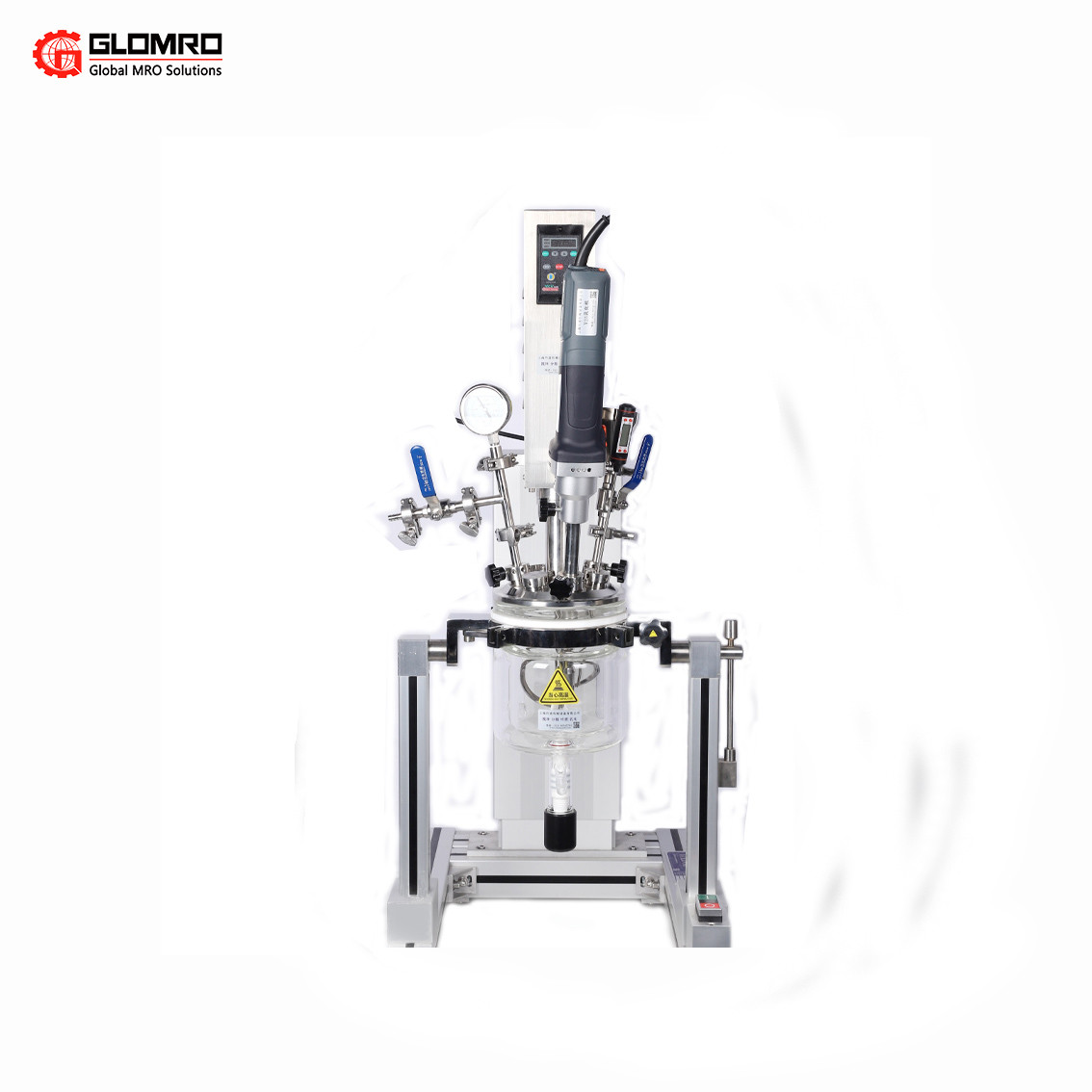

BAXIT Laboratory Vacuum Emulsification Reactor

In the laboratory, a small vacuum emulsifier is a commonly used equipment used to prepare various liquid and semi-solid materials. This equipment creates stable and homogeneous emulsions by mixing two or more different ingredients together, followed by high-shear mixing and emulsification.

Model	BXT-1L	BXT-2L	BXT-5L	BXT-10L
Power Supply	220V,50Hz	220V,50Hz	220V,50Hz	220V,50Hz
Minimum allowable mixing volume	100ml	100ml	500ml	1000ml
Minimum allowable amount of emulsification	500ml	1000ml	2000ml	4000ml
The maximum allowable amount of emulsification	1000ml	2000ml	5000ml	10000ml
Working Temperature	300°C	300°C	300°C	300°C
Achievable Vacuum	-0.0.98MPa	-0.0.98MPa	-0.0.98MPa	-0.0.98MPa
Maximum Processing Viscosity	100,000CP	100,000CP	100,000CP	100,000CP
Stirring Motor Power	120W	150W	180W	340W
Stirring Speed Range	0-230rmp	0-230rmp	0-230rmp	0-230rmp
Stirring Paddle Configuration	Anchor type spiral belt scraping mixing paddle
Scraper Material	PTFE	PTFE	PTFE	PTFE
Homogeneous Motor Power	500W	710W	1300W	1300W
Homogenization Speed Range	8000-28000rmp	8000-28000rmp	8000-30000rmp	8000-30000rmp
Homogeneous Working Head Configuration	20DG	25DG	25DG	25DG
Reactor Lid Opening	Homogenizer port + hopper port + temperature measuring port + vacuum port + 3 functional ports
Lifting Bracket Stroke	300mm	300mm	500mm	500mm
Materials Mainly in Contact with Materials	SIC, SS316L, borosilicate glass, FKM, PTFE
Vacuum Port Outer Diameter	10mm	10mm	10mm	10mm
Glass kettle jacket inlet and outletouter diameter	12mm	12mm	12mm	14mm

Place of Origin:	China
Brand Name:	BAXIT
Model Number:	BXT-5L

Minimum Order Quantity:	1
Price:	USD6367~6848 per Unit
Delivery Time:	5-8 days
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	999999 per day

BAXIT 5L Vacuum Cream Emulsifying Mixer In Laboratory Emulsifier Homogenizing

vacuum homogenizer cream mixer

Cream Mix Laboratory Emulsifier

5L Homogenizing Cream Laboratory Emulsifier
