| Place of Origin: | China |
|---|---|
| Brand Name: | BAXIT |
| Model Number: | BXT-1L |
| Minimum Order Quantity: | 1 |
| Price: | USD 4929~5203 per Unit |
| Delivery Time: | 5-8 days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 999999 per day |
| Model: | BXT-1L | Power Supply: | 220V,50Hz |
|---|---|---|---|
| Minimum Allowable Mixing Volume: | 100ml | Minimum Allowable Amount Of Emulsification: | 500ml |
| The Maximum Allowable Amount Of Emulsification: | 1000ml | Working Temperature: | 300°C |
| Achievable Vacuum: | -0.0.98MPa | Maximum Processing Viscosity: | 100,000CP |
| Stirring Motor Power: | 120W | Stirring Speed Range: | 0-230rmp |
| Stirring Paddle Configuration: | Anchor Type Spiral Belt Scraping Mixing Paddle | Scraper Material: | PTFE |
| Homogeneous Motor Power: | 500W | Homogenization Speed Range: | 8000-28000rmp |
| Homogeneous Working Head Configuration: | 20DG | Vacuum Port Outer Diameter: | 10mm |
| Glass Kettle Jacket Inlet And Outletouter Diameter: | 12mm | Dimensions: | 400*650*1100mm |
| Standard Weight: | 35KG | ||
| High Light: | 230 rmp Vacuum Reactor,Emulsion Gel vacuum chemical reactor,500W chemical vacuum reactor |
||

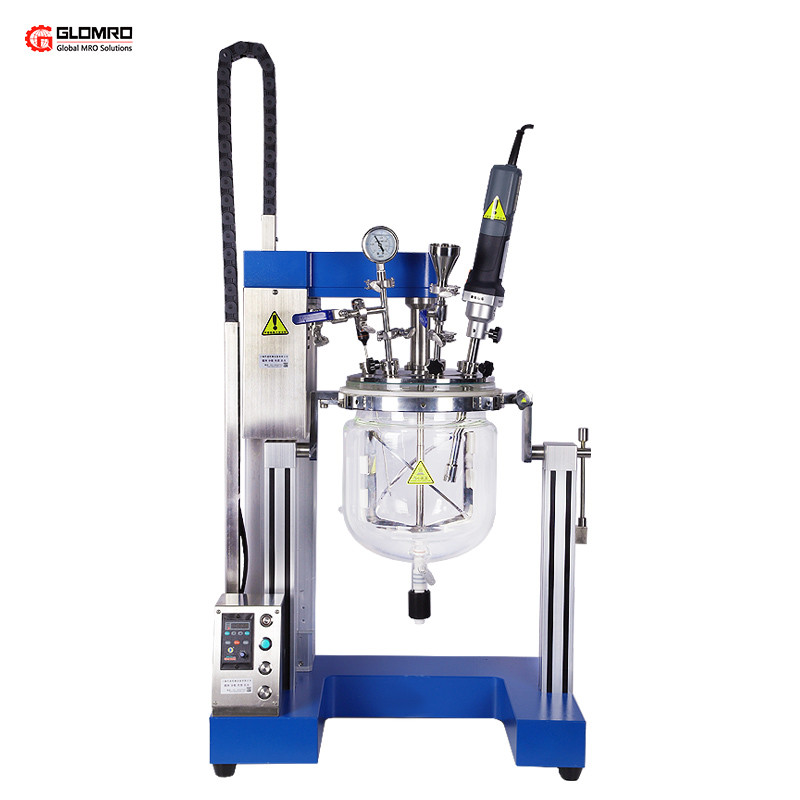

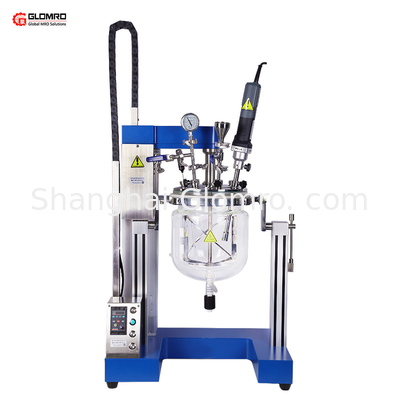

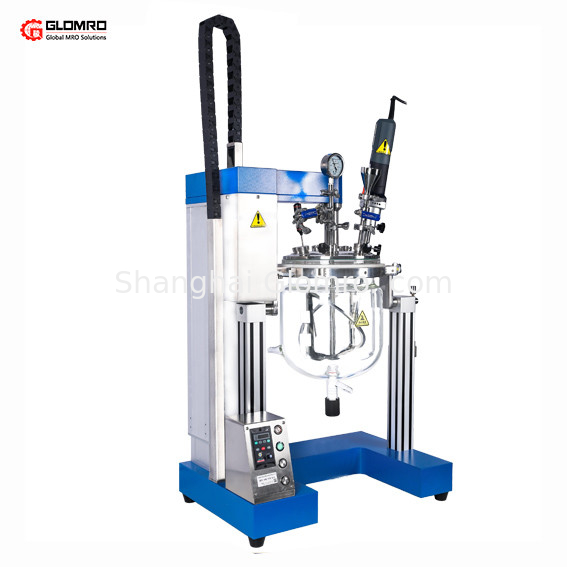

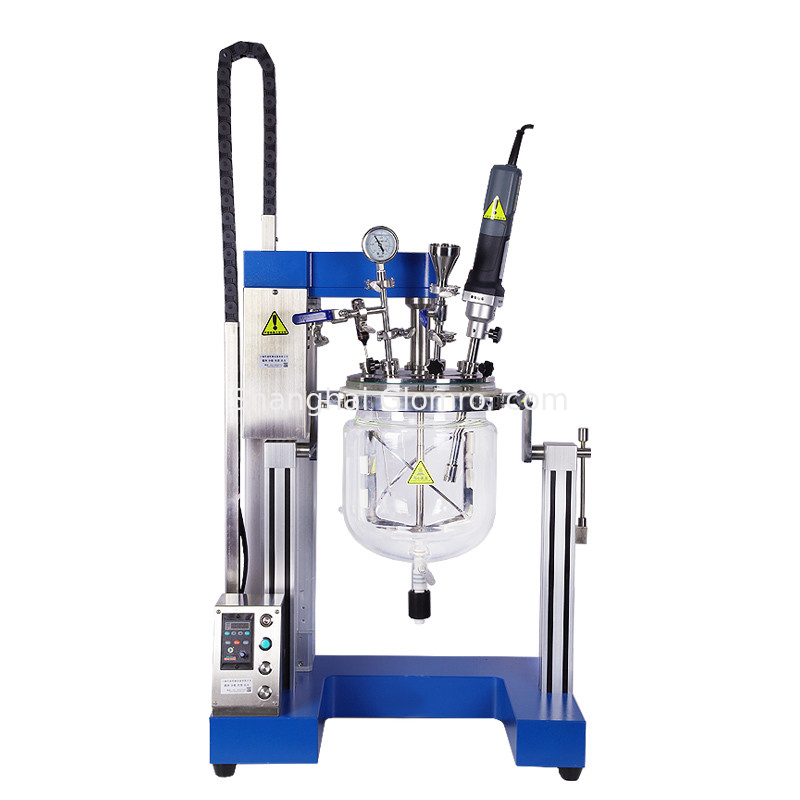

BAXIT Laboratory Vacuum Emulsification Reactor
In the laboratory, a small vacuum emulsifier is a commonly used equipment used to prepare various liquid and semi-solid materials. This equipment creates stable and homogeneous emulsions by mixing two or more different ingredients together, followed by high-shear mixing and emulsification.
| Model | BXT-1L | BXT-2L | BXT-5L | BXT-10L |
| Power Supply | 220V,50Hz | 220V,50Hz | 220V,50Hz | 220V,50Hz |
| Minimum allowable mixing volume | 100ml | 100ml | 500ml | 1000ml |
| Minimum allowable amount of emulsification | 500ml | 1000ml | 2000ml | 4000ml |
| The maximum allowable amount of emulsification | 1000ml | 2000ml | 5000ml | 10000ml |
| Working Temperature | 300°C | 300°C | 300°C | 300°C |
| Achievable Vacuum | -0.0.98MPa | -0.0.98MPa | -0.0.98MPa | -0.0.98MPa |
| Maximum Processing Viscosity | 100,000CP | 100,000CP | 100,000CP | 100,000CP |
| Stirring Motor Power | 120W | 150W | 180W | 340W |
| Stirring Speed Range | 0-230rmp | 0-230rmp | 0-230rmp | 0-230rmp |
| Stirring Paddle Configuration | Anchor type spiral belt scraping mixing paddle | |||
| Scraper Material | PTFE | PTFE | PTFE | PTFE |
| Homogeneous Motor Power | 500W | 710W | 1300W | 1300W |
| Homogenization Speed Range | 8000-28000rmp | 8000-28000rmp | 8000-30000rmp | 8000-30000rmp |
| Homogeneous Working Head Configuration | 20DG | 25DG | 25DG | 25DG |
| Reactor Lid Opening | Homogenizer port + hopper port + temperature measuring port + vacuum port + 3 functional ports | |||
| Lifting Bracket Stroke | 300mm | 300mm | 500mm | 500mm |
| Materials Mainly in Contact with Materials | SIC, SS316L, borosilicate glass, FKM, PTFE | |||
| Vacuum Port Outer Diameter | 10mm | 10mm | 10mm | 10mm |
| Glass kettle jacket inlet and outletouter diameter | 12mm | 12mm | 12mm | 14mm |
