| Place of Origin: | China |
|---|---|
| Brand Name: | FOIF |
| Model Number: | RTS-112SR10+ |
| Minimum Order Quantity: | 1 unit |
| Price: | USD 1600~1720 per Unit |
| Delivery Time: | 5-8 days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 999999 per day |
| Imaging: | Positive Image | Effective Aperture Of Objective Lens: | 45mm |
|---|---|---|---|
| Magnification Ratio: | 30X | Angle Of View: | 1°30' |
| Resolution Ratio: | 3" | Minimum Focus Distance: | 1.0m |
| Accuracy: | ±(2mm+2X10-6·D) | Angle Measurement Method: | Encoding Dial |
| High Light: | 30X Total Station Machine,High Precision Reflectorless Total Station,Reflectorless Total Station Surveying Instrument |
||

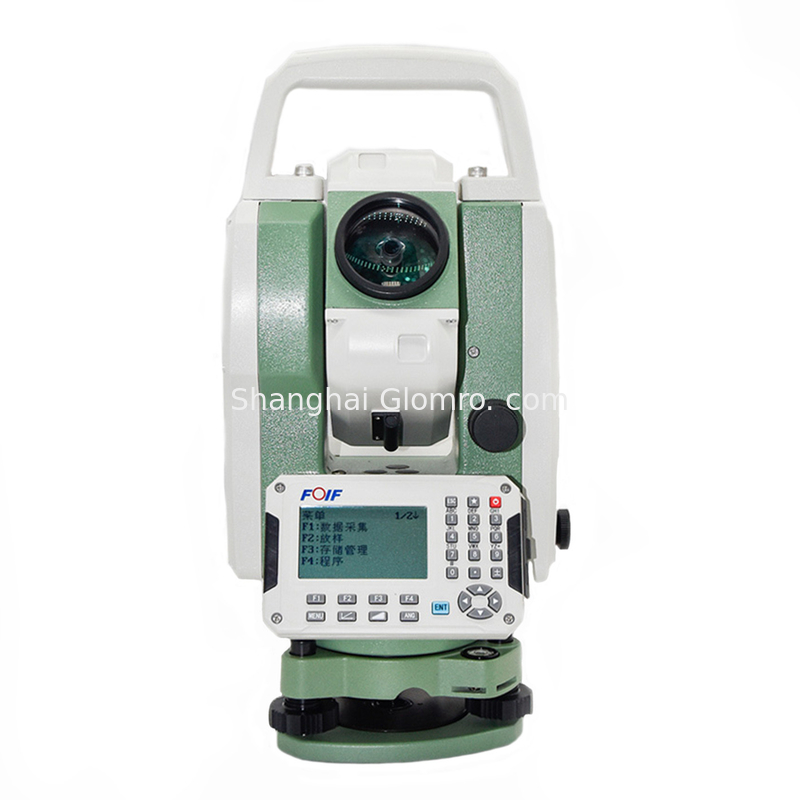

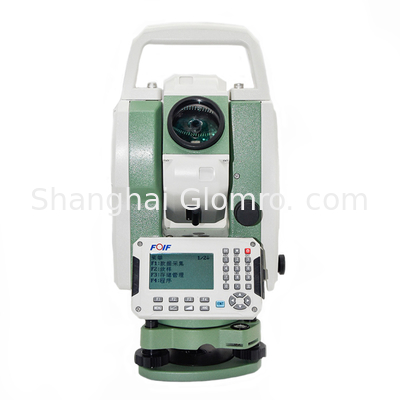

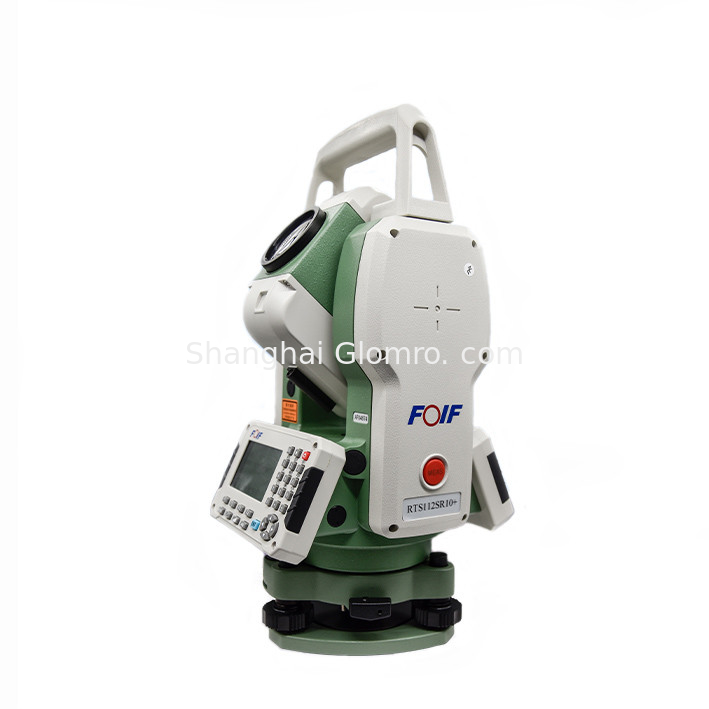

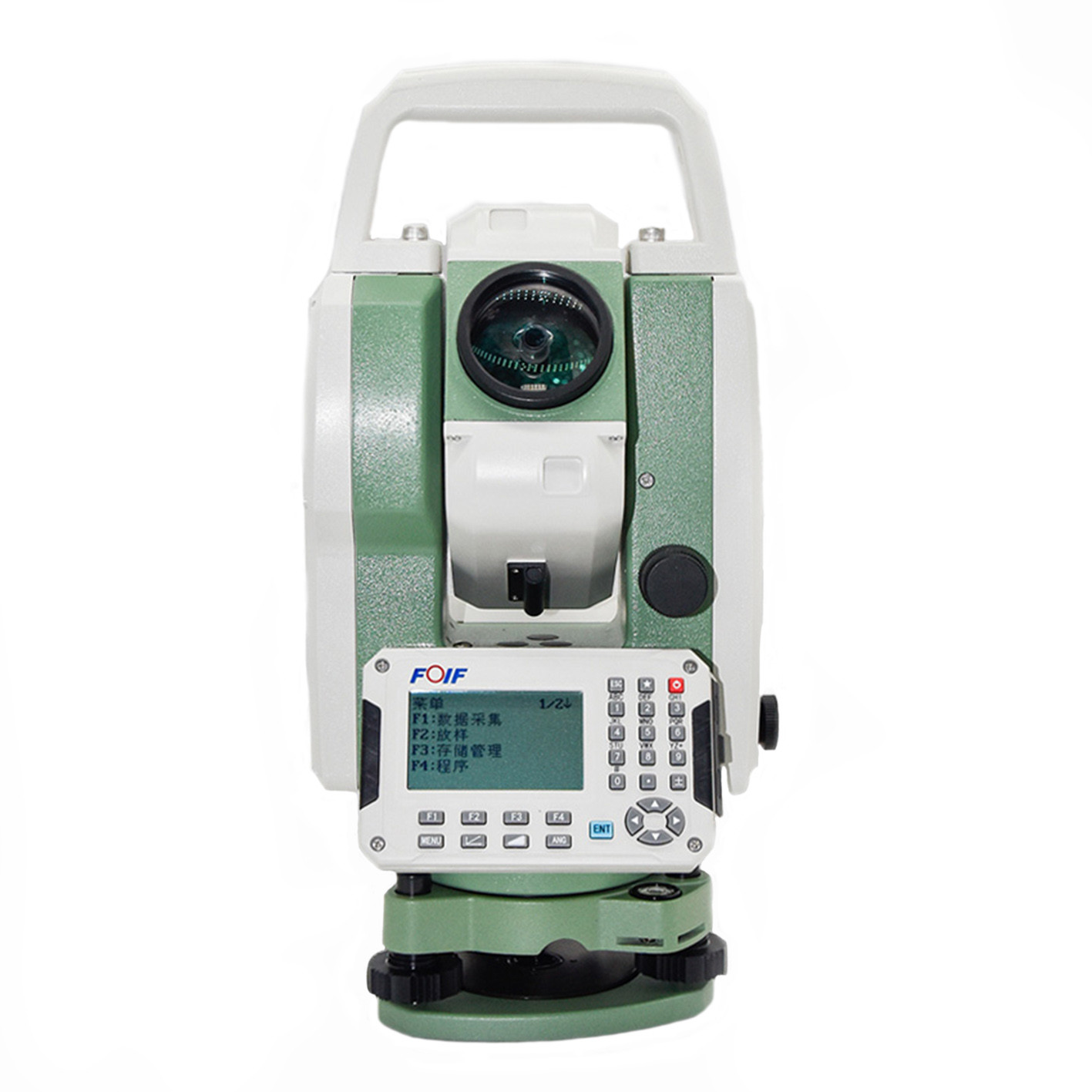

Hot Sale Surveying Instrument Total Station RTS-112SR10 Reflectorless High Precision
FOIF high-brightness color screen intelligent total station, built-in large-capacity memory and various application measurement programs, powerful, stable performance, easy to use. It is suitable for survey work such as building stakeout, road stakeout, topographic cadastral survey and control point survey. It provides surveyors with an innovative, complete and integrated digital solution for field surveying and mapping, which is suitable for integrated internal and external design and construction and digital mapping, building construction, road stakeout, topographic cadastral survey and control point survey. Can meet all your job needs.
| Product Parameters | |||
| Telescope | |||
| Model | RTS112SR10+ | RTS342R10 | RTS112E |
| Imaging | Positive Image | Positive Image | Positive Image |
| Effective Aperture of Objective Lens | 45mm | 48mm | 45mm |
| Magnification Ratio | 30X | 30X | 30X |
| Angle of View | 1°30' | 1°30' | 1°30' |
| Resolution Ratio | 3" | 3" | 3.5" |
| Minimum Focus Distance | 1.0m | 1.0m | 1.0m |
| Distance Measurement | |||
| Accuracy | ±(2mm+2X10-6·D) | ±(2mm+2X10-6·D) | ±(2mm+2X10-6·D) |
| Distance Measurement | 1000m/no prism 1200m/radiating film 6000m/single prism | 1000m/no prism 1200m/radiating film 6000m/single prism | 1000m/no prism 1200m/radiating film 5000m/single prism |
| Angle Measurement | |||
| Angle Measurement Method | Encoding dial | Encoding dial | Encoding dial |
| Angle Measurement Accuracy | 2" | 2" | 2" |
| Minimum Reading | 1" | 0.1" | 1" |
| Compensator | |||
| Compensation Range | ±3' | ±6' | ±3' |
| Compensation Method | Single Axis Compensation | Biaxial Compensation | Single Axis Compensation |
| Other | |||
| Waterproof and Dustproof Grade | IP66 | IP55 | IP66 |
| Communication | R5-232C USB (optional) SD card (optional) Bluetooth (optional) | R5-232C USB SD card Bluetooth (optional) | RS-232C |
