| Place of Origin: | China |
|---|---|
| Brand Name: | BAXIT |
| Certification: | CE |
| Model Number: | BXT-3000T |
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Aluminium box and carton box 40*70*35 cm |
| Delivery Time: | 5-8 workdays |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100+sets+5days |
| Inlet Air Temperature Control: | 30 ℃ ~ 300℃ | Outlet Air Temperature Control: | 30 ℃ ~ 140℃ |
|---|---|---|---|
| Water Evaporation: | 1000mL/H ~ 3000ml/h | Voltage: | 220V/50Hz |
| Maximum Feed Volume: | 3000ml/h (adjustable) | Minimum Feed Volume: | 50ml |

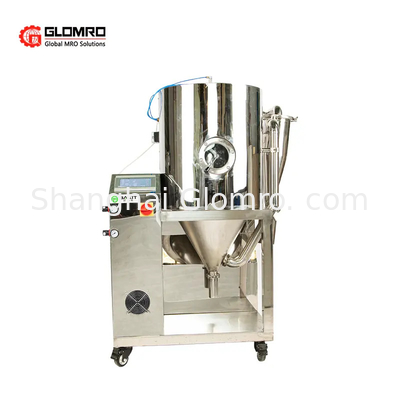

| High Light: | Touch Screen Spray Dryer Machine,3L Spray Dryer Machine,Chinese Medicine Pellet Spray Dryer 50Hz |
||
| Water evaporation | 1000mL-3000 mL/h |
| Minimum feed | 50ml |
| Liquid pump | 4 joint rotor pump (feeding tube: imported silicone peristaltic tube) (Optional 6-connector rotor pump) |
| Atomization | Refined two-fluid atomizing nozzle (gas-liquid) (Optional refined plastic two-fluid atomizing nozzle) |
| Nozzle diameter | Following machine standard configuration 1.0mm (Silicon carbide material can be selected, wear resistance is about 10 times that of stainless steel) |
| Average drying time | 1.0~1.5S |
| Temperature setting range | 30-300°C PID automatic control;(temperature can be set) |
| Temperature adjustment | Inlet temperature +19C |
| Single-phase low-noise fan | Fan flow rate; 95m3/min Wind pressure; 1.1KPa9 (Optional imported fan from Taiwan, powerful mute function) |
| Temperature Sensor | PT-100 thermocouple |
| Spray adjustment range | 0-0.8 MPa (recommended 0.2 MPa) |
| Spray pressure air intake | 106L/min; displacement; 36L/min;input power 580W |
| Air compressor for spray | Taiwan imported Dolphin brand oil-free air compressor, quiet type |
| Ceramic electric heater | Power 3.5KW |
| Rated voltage | 220V/50HZ |
| Inlet treatment | Fiber cotton filter |
| Liquid pump flow range adjustment |
0-26m/min |
| Electric box cooling | Fan Heat of Brushless DC Motor |
| Air connection caliber for spray | Outer diameter 6mm trachea |
| Function protection | If the fan doesn't start,the heater cannot start,the air compressor or the peristaltic pump won't start |
| Dimensions | 550(W)X650(D)X1300(H)mm |
| Device control method | Touch screen |
| Machine material/weight | 304/125KG |
1. Aluminium box and carton box, careful and tight package, make sure the package is intact
2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.
