| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | BAXIT |
| Model Number: | BXT-GY-100L |
| Minimum Order Quantity: | 1 |
| Price: | USD1416-12714 |
| Delivery Time: | 3-7 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 9999units |
| Model Number: | 100L | Design Pressure: | ≤9.8Mpa |
|---|---|---|---|
| Maximum Temperature ℃: | ≤350℃ | Heating Method: | Electric Heating |
| Temperature Control Accuracy ° C: | ±1.0℃ | Heating Power KW: | 4 |
| Stirring Speed: | 50-500 R/min | Motor Power W: | 18KW |
| Temperature Controller: | Intelligent Digital Temperature Control Meter With Self-tuning Function,With Automatic Constant Temperature Control Function, With Speed Display And Stepless Speed Control Function | Note:: | Can Be Customized According To Customer Requirements |
| High Light: | Laboratory High Temperature Hydrogenation Reactor,Magnetic Stirring Hydrogenation Reactor,Hydrogenation Electric Heating Reactor |
||
Non-lifting type high temperature and high pressure reactor stainless steel mechanical mixing enamel

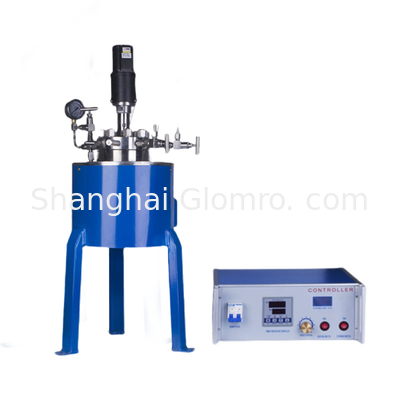

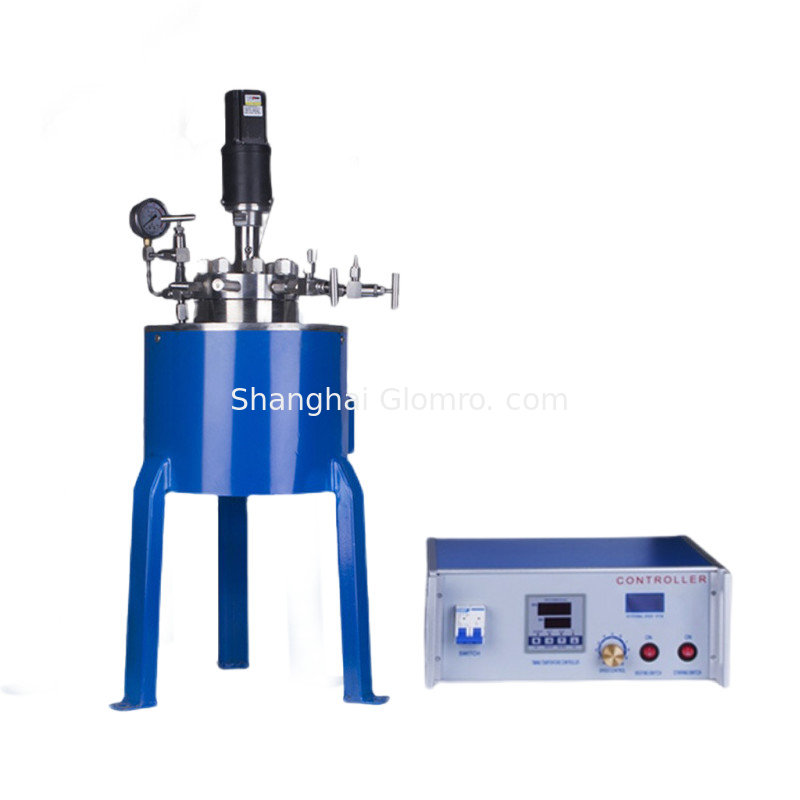

Non-lifting high temperature and high pressure reactor
Autoclave is a precision equipment. The sealing ring adopts the form of cone phase contact sealing, and the main bolts are tightened to press each other to achieve the purpose of sealing. Special care must be taken to the sealing cone to avoid damage caused by various collisions. When installing the cover, first place the reactor body, and then the kettle cover according to the fixed position, carefully installed on the kettle body, in tightening the main bolt, must be diagonal, symmetrical several times gradually tighten, the force should be uniform, do not allow the kettle cover to tilt to the side, in order to achieve a good sealing effect, can not exceed the specified tightening torque, to prevent the sealing surface is crushed or accelerated wear.
| Model number | 0.1L | 0.25L | 0.5L | 1L | 2L | 3L |
| Design pressure | ≤22Mpa | |||||
| Maximum temperature ℃ |
≤300℃ | ≤350℃ | ||||
| Heating method | Electric heating | |||||
| Temperature control accuracy ° C |
±1.0℃ | |||||
| Heating power KW | 0.5 | 0.7 | 1 | 1.5 | 2 | 3 |
| Stirring speed | 50-1000r/min | |||||
| Motor power W | 40 | 40 | 80 | 80 | 150 | 150 |
| Temperature controller |
Intelligent digital temperature control meter with self-tuning function, With automatic constant temperature control function, with speed display And stepless speed regulation function |
|||||
| Lifting mode | Conventional manual lifting/optional automatic lifting | |||||
| material | Conventional 304 stainless steel /346 stainless steel options |
|||||
| agitator | The static seal structure is adopted, and the stirrer and the motor are connected by magnetic coupler for rotation |
|||||
| Note: | Can be customized according to customer requirements | |||||
| Model number | 5L | 10-20L | 30L | 30L-50L | 100L |
| Design pressure | ≤22Mpa | ≤9.8Mpa | |||
| Maximum temperature ℃ |
≤350℃ | ||||
| Heating method | Electric heating | ||||
| Temperature control accuracy ° C |
±1.0℃ | ||||
| Heating power KW | 4 | 8 | 12 | 12 | 18 |
| Stirring speed | 50-1000 r/min |
50-600 r/min |
50-500 r/min |
||
| Motor power W | 150W | 250WGear motor | 400WGear motor | ||
| Temperature controller |
Intelligent digital temperature control meter with self-tuning function,With automatic constant temperature control function, with Speed display and stepless speed control function |
||||
| Lifting mode | Conventional manual lifting/optional automatic lifting | ||||
| material | Conventional 304 stainless steel /346 stainless steel options | ||||
| agitator | Adopt static seal structure, agitator with The motor rotation is connected by magnetic coupler |
||||
| Note: | Can be customized according to customer requirements | ||||
