| Place of Origin: | Shanghai, China |
|---|---|
| Brand Name: | BAXIT |
| Model Number: | BXT-FY-50ml |
| Minimum Order Quantity: | 1 |
| Price: | USD1542.9-13084 |
| Delivery Time: | 3-7 working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 9999units |
| Product Model: | 0.1L | Design Pressure: | ≤12.5Mpa-22Mpa |
|---|---|---|---|
| Maximum Temperature: | ≤300℃ | Heating Method: | Electric Heating |
| Temperature Control Accuracy: | ±1.0℃ | Heating Power: | 0.5 KW |
| Stirring Speed: | 5-1000r/min | Motor Power: | 40w |
| Temperature Controller: | With Self-setting Function Intelligent Digital Temperature Control Meter, With Automatic Constant Temperature Function, With Speed Display And Stepless Speed Regulation Function | Remark: | Can Be Customized According To Customer Needs |
| High Light: | Stainless Steel Lifting High Pressure Reactor,Mechanical Stirring High Pressure Autoclave Reactor,0.1L Hydrogenation Reactor |
||

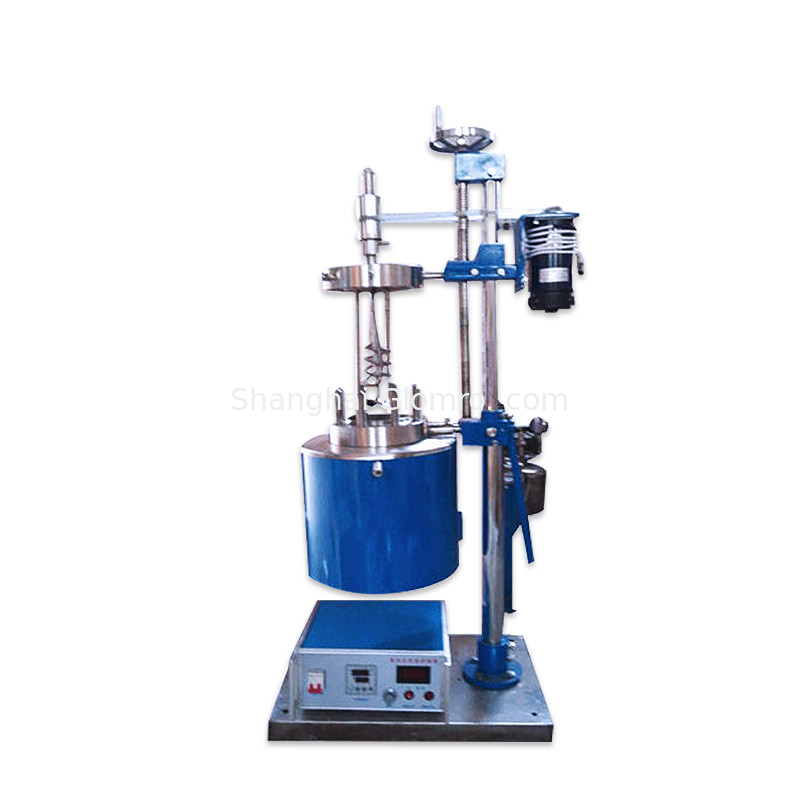

Lifting high pressure reactor stainless steel lifting BXT series mechanical stirring
Elevating high-pressure reactor
Controller: with PID temperature adjustment meter, with reporting display and stepless speed regulation function, with heating voltmeter, motor ammeter and working time display. The ambient temperature is 0~50 C, the relative humidity is 30~85%, and the surrounding medium does not contain conductive dust and corrosive gas. Ring permanent magnet drive coupling, static seal, no leakage, stirring moment, the bushing using white lubricated graphite or ceramic, suitable for all kinds of materials in different conditions for stirring reaction. For example: gas-liquid reaction, gas-liquid-solid reaction, liquid-solid reaction, etc.
| Product model | 0.1L | 0.25L | 0.5L | 1L | 2L | 3L | 5L | 10L-20L | 30L-50L | 100L |
| Design pressure | ≤12.5Mpa-22Mpa | ≤9.8Mpa | ||||||||
| Maximum temperature |
≤300℃ | ≤350℃ | ||||||||
| Heating method | Electric heating | |||||||||
| Temperature control accuracy |
±1.0℃ | |||||||||
| Heating power | 0.5 KW |
0.7 KW |
1 KW |
1.5 KW |
2 KW |
3 KW |
4 KW |
8KW 10KW |
12KW | 18KW |
| Stirring speed | 5-1000r/min | 50-600r | 50-500r/min | |||||||
| Motor power | 40w | 40w | 80W | 80W | 150W | 150W | 150W | 250WGear motor |
400WGear motor |
|
| Temperature controller |
With self-setting function intelligent digital temperature control meter, with automatic constant temperature function, with speed display and stepless speed regulation function |
|||||||||
| agitator | Conventional manual lifting/optional automatic lifting, using static seal structure, stirrer and motor rotation using magnetic coupler connection |
|||||||||
| material | Conventional 304 stainless steel /316 stainless steel options | |||||||||
| remark | Can be customized according to customer needs | |||||||||
