| Place of Origin: | China |
|---|---|
| Brand Name: | BXAIT |
| Model Number: | BXT-GN20 |
| Minimum Order Quantity: | 1 |
| Price: | USD1250-1350 |
| Packaging Details: | Size of instrument 440x330x430 |
| Delivery Time: | 3-7working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 9999/unit |
| Ping's Viscometer: | 0.4-6.0 | Number Of Test Hole: | Four Holes |
|---|---|---|---|
| Stirring Speed: | 2000R/ Min | Size Of Instrument: | 440x330x430 |
| The Net Weight: | 15kg | Temperature Control Precision: | ±0.1℃ |
| High Light: | Petroleum Products Kinematic Viscometer,Constant Temperature Bath Kinematic Viscometer,Four Holes Kinematic Viscosity Meter |
||

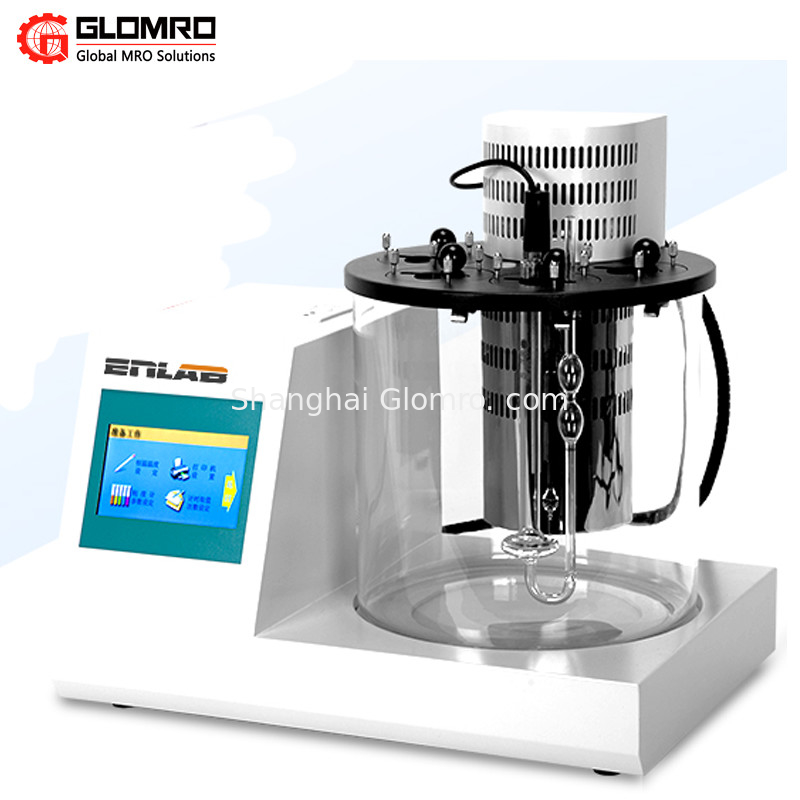

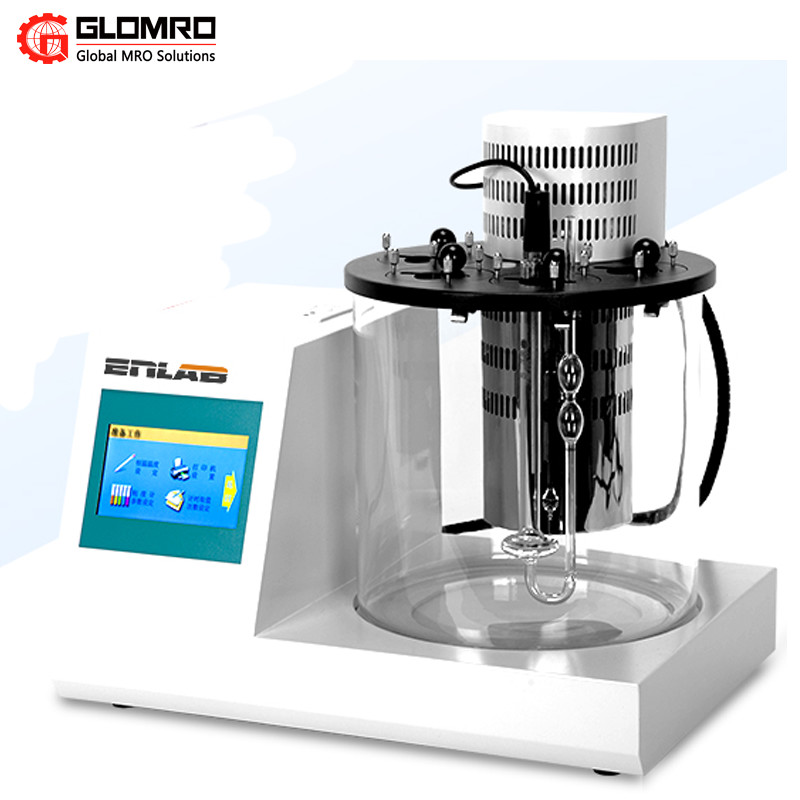

BAXIT kinematic viscosity tester BXT-GN20
Brief introduction:
Kinematic viscosity is an important quality index of lubricating oil and also an important basis for selecting lubricating oil. The correct choice of lubricating oil viscosity is the premise to ensure the normal operation of the machine. Excessive lubricating oil viscosity will increase the running resistance and power consumption, and the lubricating oil can not flow quickly and timely to the parts that should be lubricated, affecting the normal lubrication. Increase mechanical wear; If the selected lubricating oil viscosity is too small, it is difficult to form an oil film of sufficient thickness, so as to not ensure the formation of a normal continuous lubrication layer between friction surfaces, but also cause mechanical wear, so the viscosity of mechanical lubricating oil should be appropriate. Accurate measurement of kinematic viscosity of lubricating oil is of great significance to production, transportation and use
Main functions of kinematic viscosity tester:
1, 7 inch HD touch screen operation, convenient operation, four test channel design to provide work efficiency
2, the use of high precision temperature control technology, temperature control accuracy of plus or minus 0.01 degrees Celsius
3, all high-performance MCU control, high stability and reliability
4, automatic storage test results, and check at any time
5, can work continuously for a long time, the failure rate is very low
6, with overtemperature protection function, the test is more safe and reliable
7, with liquid level protection function, constant temperature liquid below a certain level automatically stop heating, protect the safety of the instrument
8, built-in thermal printer, automatic printing test results
| The product name | Automatic measurement of kinematic viscosity BXT-GN10 |
Automatic measurement of kinematic viscosity BXT-GN20 |
||
| display | Color LCD display + touch screen | |||
| Ping's viscometer | 0.4-6.0 | |||
| Standard configuration of Ping's viscometer |
0.8 1.0 1.2 1.5 | |||
| Operating temperature | 0-150 degrees | |||
| The temperature control mode | The PID | |||
| Set temperature | 20°C, 40°C, 50°C, 80°C, 100°C, Any value (above room temperature ~150°C) |
|||
| Temperature control precision | ±0.1℃ | |||
| Number of test hole | Four holes | |||
Timing range |
0~999 seconds (according to the national standard requirements, each test sample flow time must be higher than 200 seconds) |
|||
| Timing accuracy | 0.1 seconds | |||
| Number of timing | Optional 1 ~ 4 times | |||
| Stirring speed | 2000R/ min | |||
| Way of print | Thermal sensitive printer | |||
| The power supply | AC220V±5% 50Hz±5% | |||
| The engine power | 1500 watts | |||
| Operating ambient temperature | Room temperature ~ 45 ° C | |||
| Operating ambient humidity | ≤85%RH | |||
| The net weight | 15 kg | |||
| Size of instrument | 440x330x430 | |||
