Place of Origin: | China |
---|---|
Brand Name: | DURAG |
Certification: | CE |
Model Number: | D-LX 110 UA-C1/M5/0000/PCG |
Minimum Order Quantity: | 1unit |
Price: | USD3340/unit |
Packaging Details: | carton package |
Delivery Time: | 8-12 weeks |
Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000units |
Safety: | Self-monitoring And Fail-safe | Auxiliary Supply: | 24 VDC |
---|---|---|---|
Flame Relay: | 1x NO Contact, 230 VAC, 2 A | Status Relay: | 1x NO Contact, 230 VAC, 2 A |

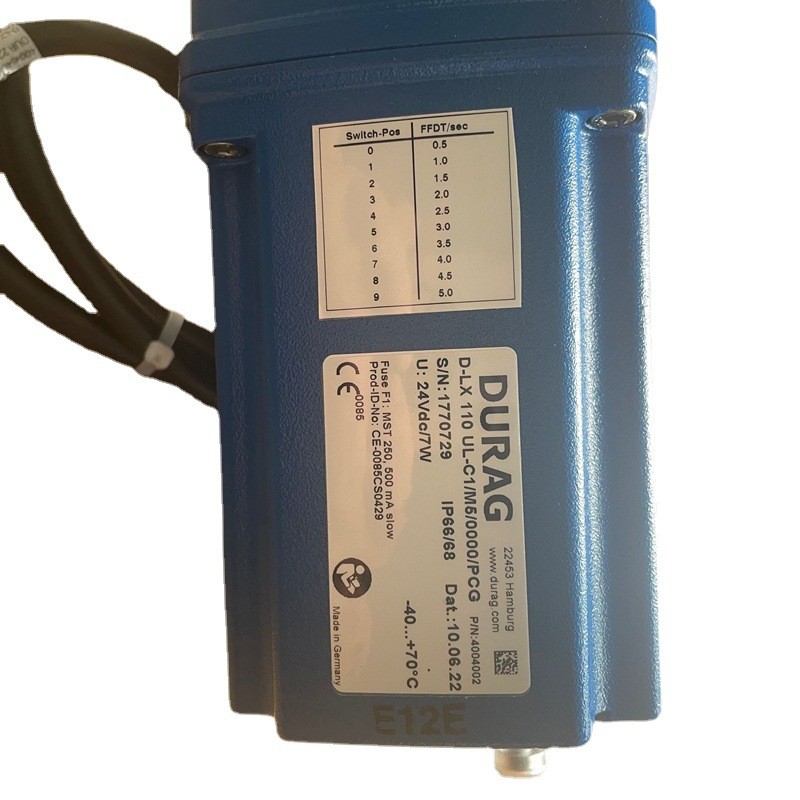

Flame Failure Detection Time (FFDT): | 1, 3, 5 S | Flame Intensity: | 0/4...20 MA |
High Light: | D-LX 110 Flame Detector,24 VDC Flame Monitor,Waste Incinerators Flame Monitor |

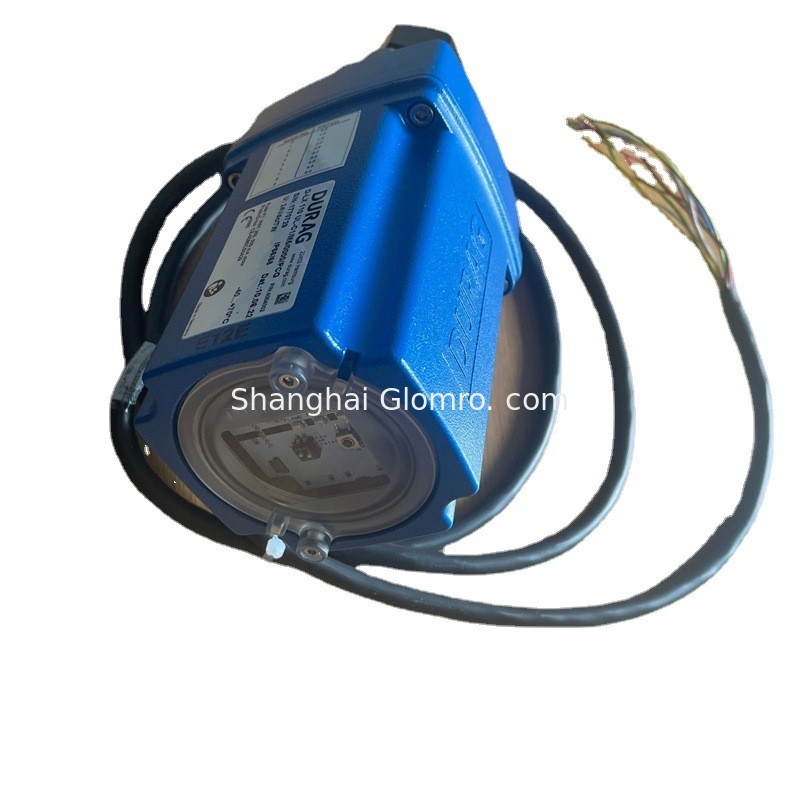

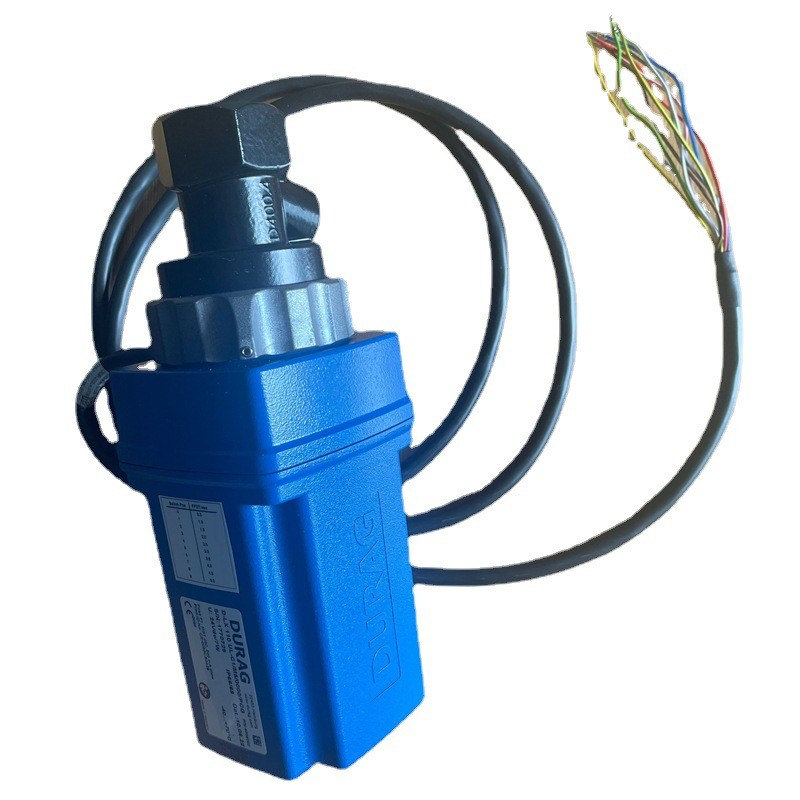

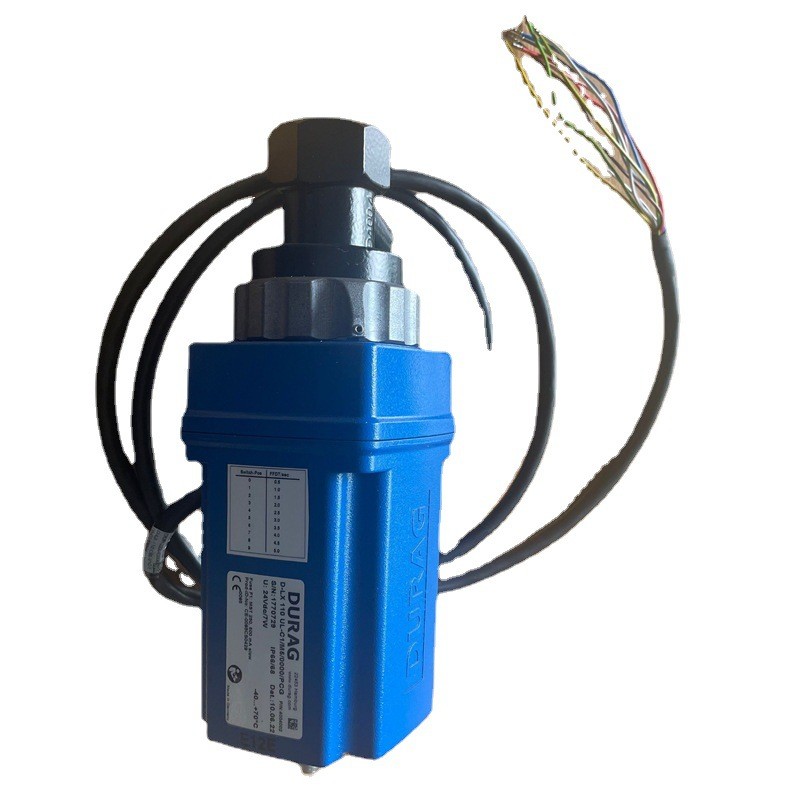

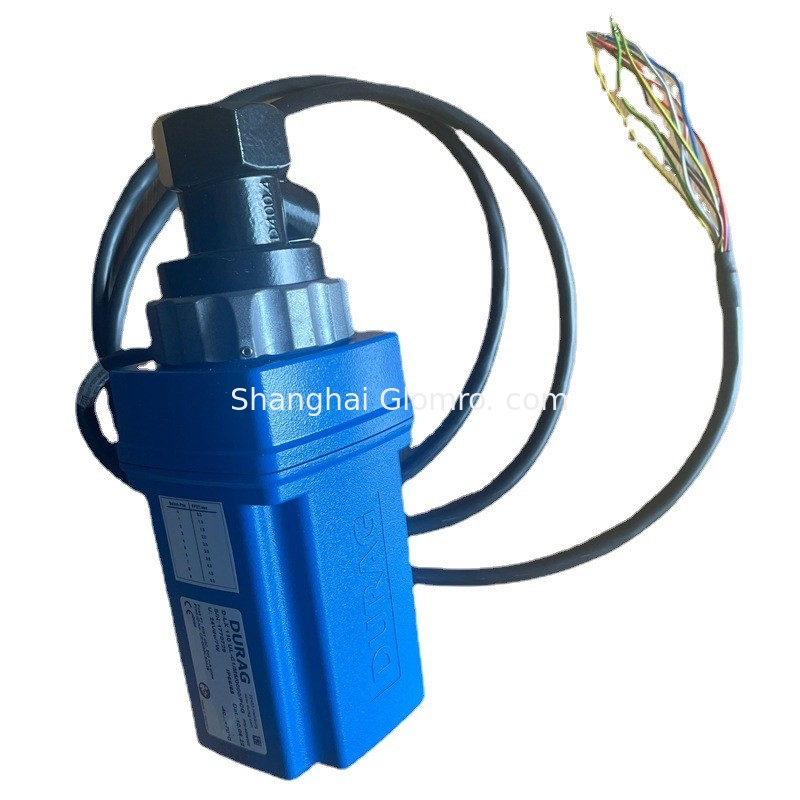

Flame Monitor New model D-LX 110 UA-C1/M5/0000/PCG Flame Detector For DURAG Hegwein
Self-monitoring and fail-safe compact flame monitor for the monitoring of gas, oil and coal flames with integrated UV, VIS or IR flame sensor, primarily in single burner view applications.
Overview
For ambient temperatures from -40°C up to +75/70°C, certified and without need for accessories to isolate, heat or cool.
Highest safety combined with highest availability
Ideal support for Functional Safety within safety chains up to SIL3
Flame relay output as changeover relay (SPDT, 1 x NO, 1 x NC)
All variants of the D-LX 110 also available for combination with fibre optic systems (see D-LX 710)
Easy exchange of consumables
Local display of settings and operational status for the whole ambient temperature range, visible for all versions at a single glance
Applications
Simple combustion plants with single burners or optically separated burners
Combustion processes with continuous operation
Thermal processing plants
Chemical industry
Refineries
Waste incinerators
Petrochemical plants
Steel industry
Steam generators
Heating plants
Technical Parameters
