| Place of Origin: | Germany |
|---|---|
| Brand Name: | Thomas |
| Certification: | CE |
| Model Number: | 20251357 |
| Minimum Order Quantity: | 1unit |
| Price: | USD253/unit |
| Packaging Details: | carton |
| Delivery Time: | 3-5days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000units |
| Speed: | 10rpm | Suction Capacity: | ≥ 0.2L/h |
|---|---|---|---|
| Extemal Piping: | 3.2 Hose Or OD6/4MM Card Holder | Attraction Ability (max): | 0.22Mpa |
| Power Supply: | 220VAC 50Hz 10W | ||
| High Light: | 10 rpm Peristaltic Pump,10rpm Peristaltic Pump 20251357,Gas Analyzer Drainage Pump |
||

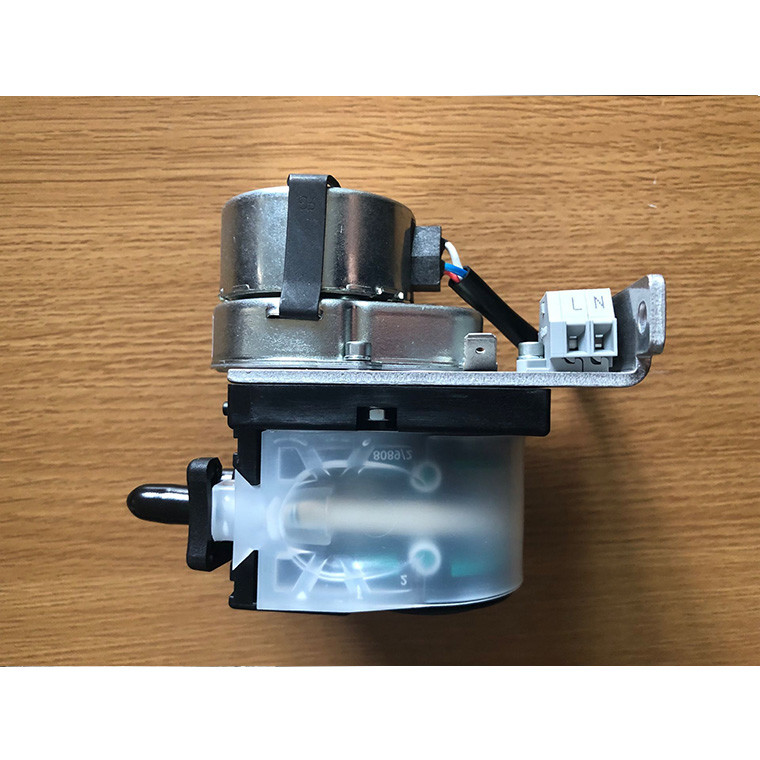

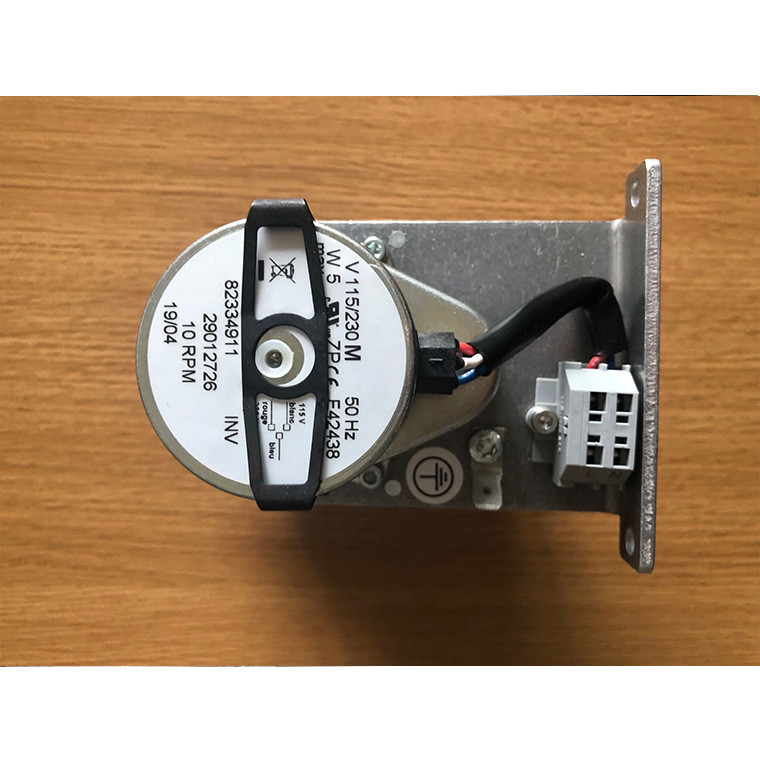

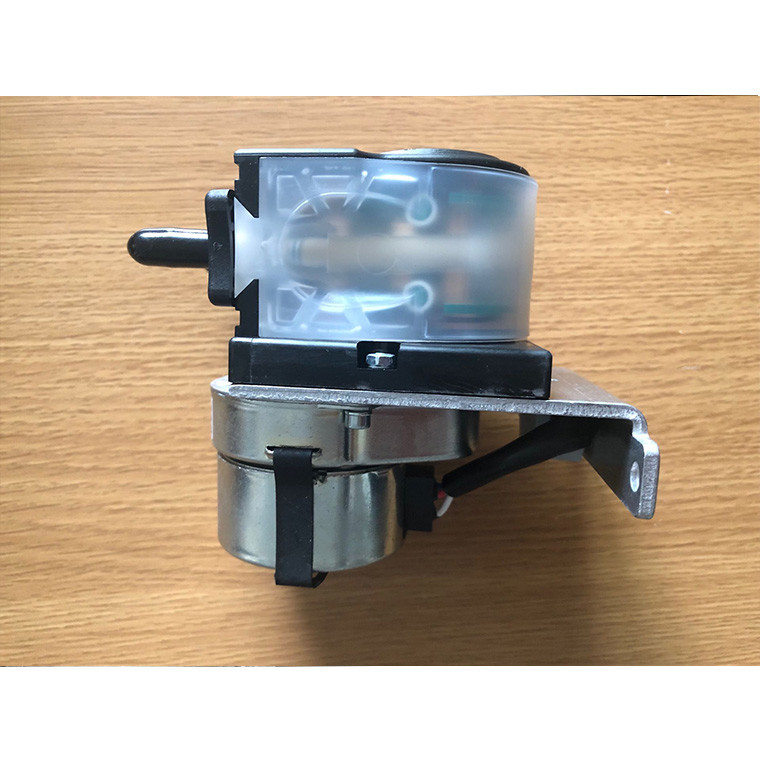

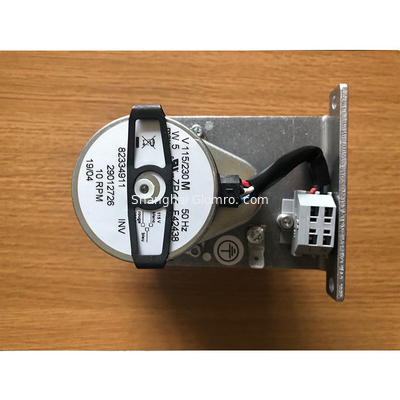

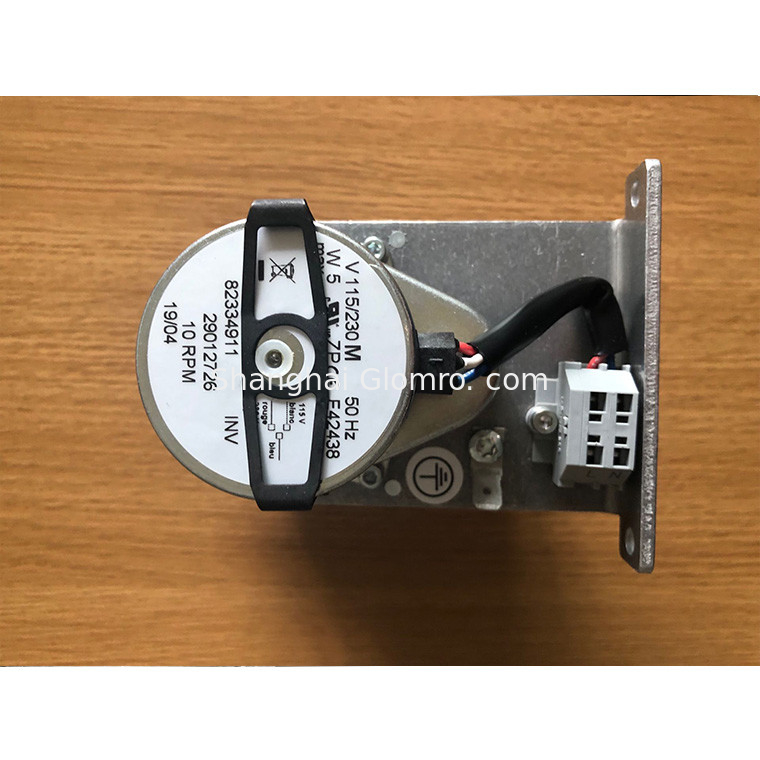

Thomas Pump 20251357 10rpm Peristaltic Pump Gas Analyzer Drainage Pump 20251355
Brand: Thomas, Germany
Model: 20251357
Speed: 10rpm
Assembly: original imported.
Product description:

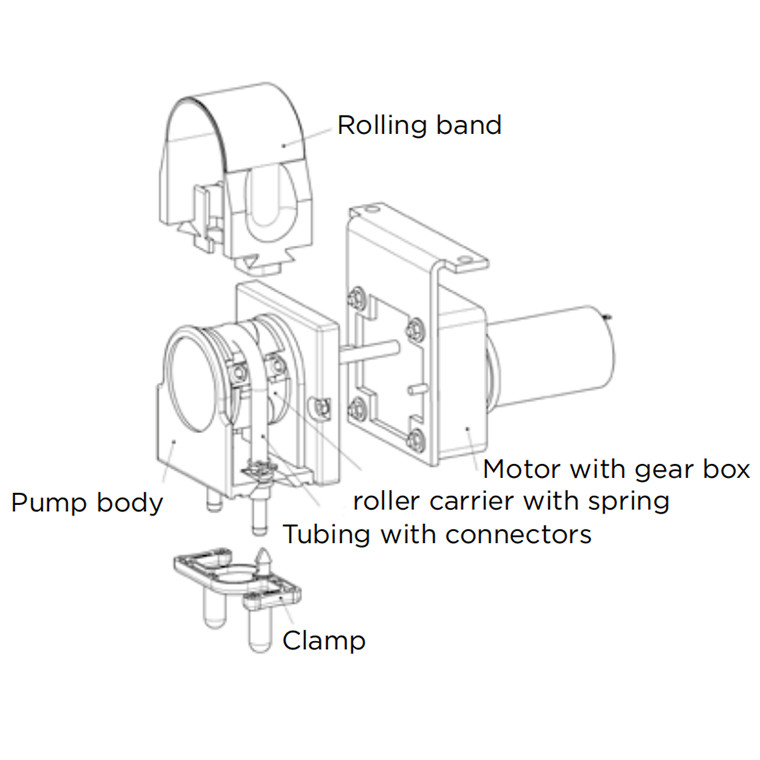

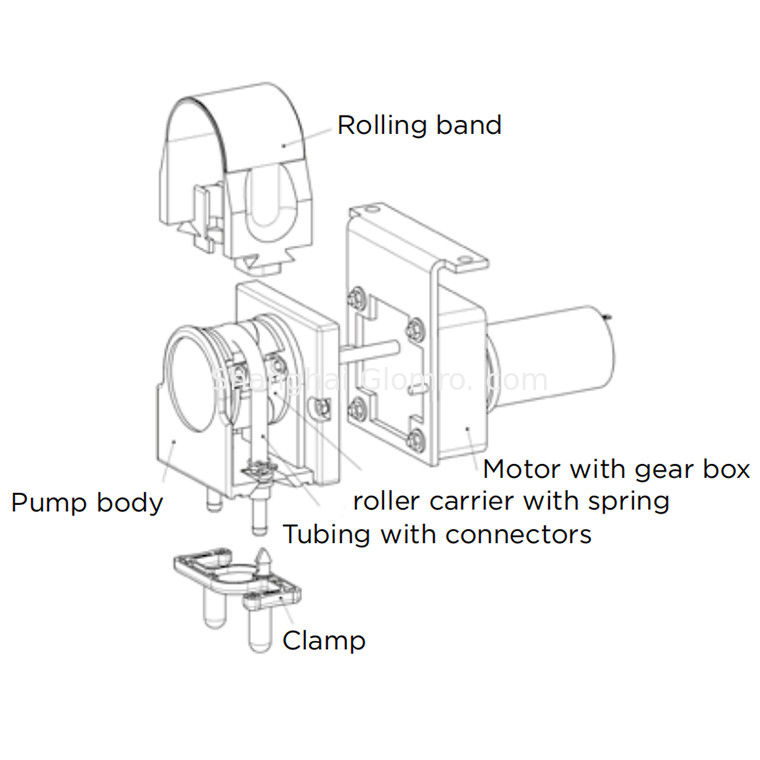

The flue gas drainage peristaltic pump is specially developed for the flue gas continuous monitoring system and consists of a pump head, a motor and a peristaltic pump tube. The original imported products are developed in combination with the process characteristics of the flue gas continuous monitoring system for condensing water.
Technical features:
1, with long-term continuous operation, automatic suction function.
2, with small size, light weight, corrosion resistance, long life, beautiful shape and so on.
3. It is a special product for process analysis and continuous elimination of “gas condenser” condensate.
4. The liquid discharge is 0.2L/h or more.
5. When the motor and transmission unit stop working, the original flowing condensate will not return.
6. The pump body is injection molded with engineering plastic and runs continuously at a slow speed (10 rpm).
7, using imported "Pharmd ultra long life peristaltic pump tube"
8, with good mechanical properties and chemical resistance.
9. The pump tube connection mechanism is simple and reliable, and it is very convenient to replace the pump tube.
Technical Parameters:
| Speed | 10r/min |
| Suction capacity | ≥ 0.2L/h |
| Extemal piping | 3.2 hose or OD6/4MM card holder |
| Attraction ability (max) | 0.22Mpa |
| Power connection | terminal 1.5mm2 |
| Ambient temperature | -5-+450C |
| Withstand pressure (max) | 0.22Mpa |
| Power supply mode | 220VAC 50Hz 10W |
| Imported pump tube specifications | OD8/5MM |
