| Place of Origin: | China |
|---|---|
| Brand Name: | BAXIT |
| Certification: | CE |
| Model Number: | KCN86.HW |
| Minimum Order Quantity: | 1 |
| Price: | USD648/UNIT |
| Packaging Details: | Carton |
| Delivery Time: | 3-5 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100Set per day |
| Flow: | 6L/min | Voltage: | AC230V/50Hz |
|---|---|---|---|
| Pressure: | 150kpa | ||
| High Light: | High Temperature CEMS Vacuum Pump,Non polluting Sampling Vacuum Pump,Anti Corrosion Sampling Pump |
||

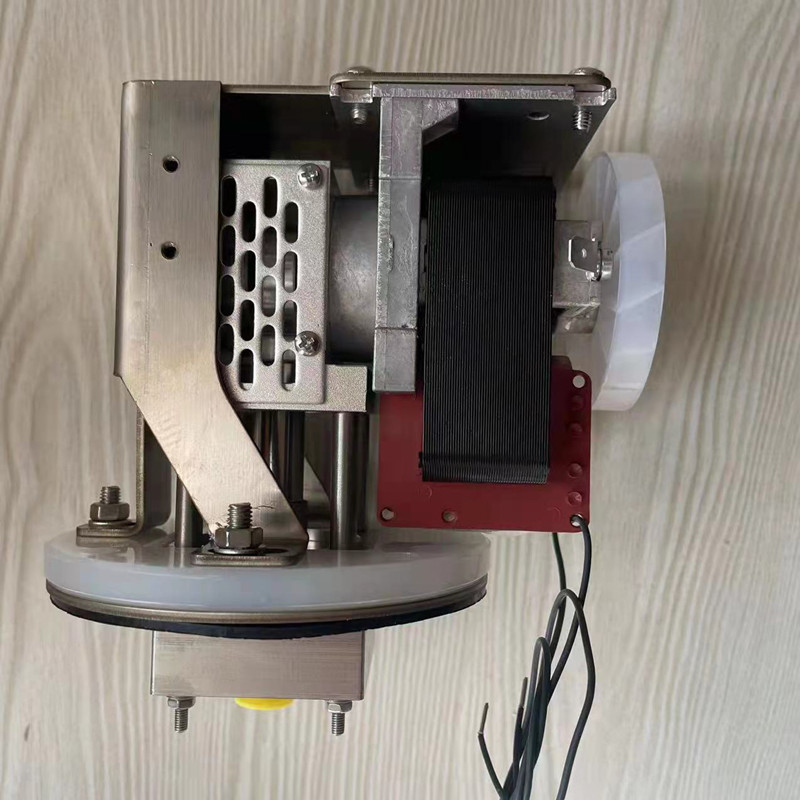

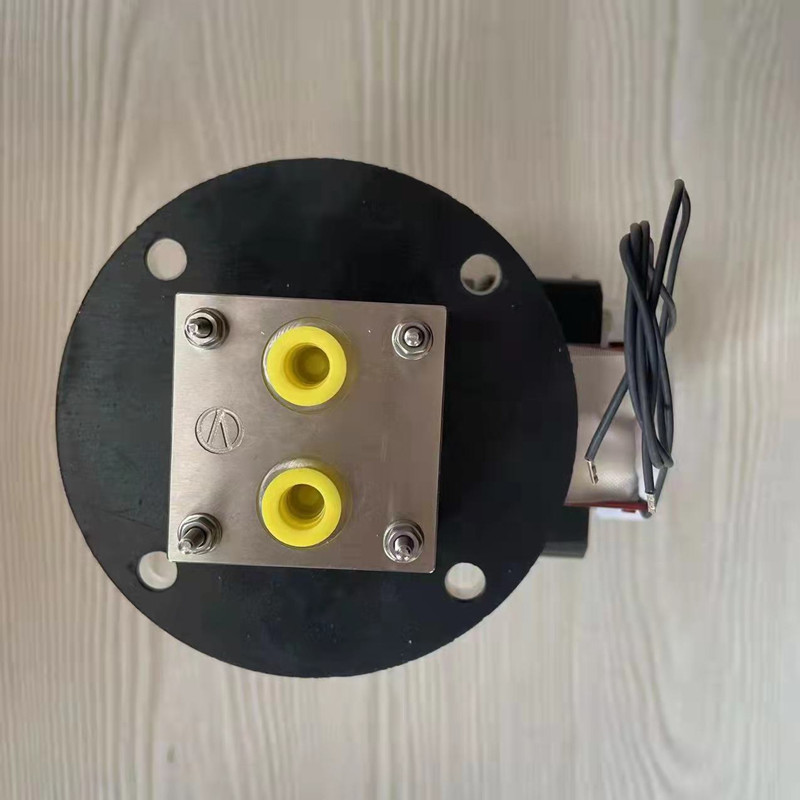

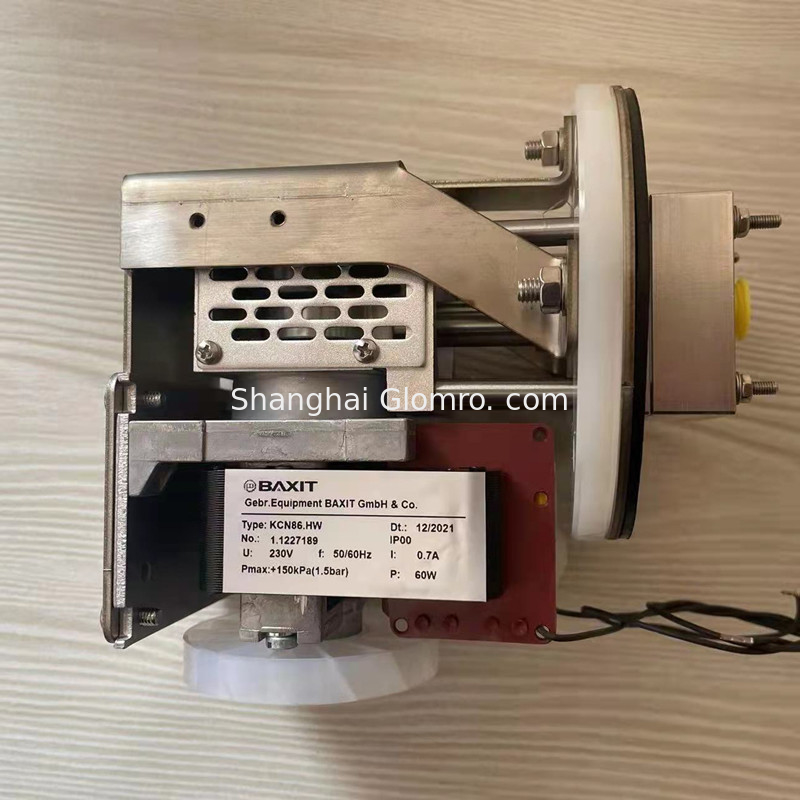

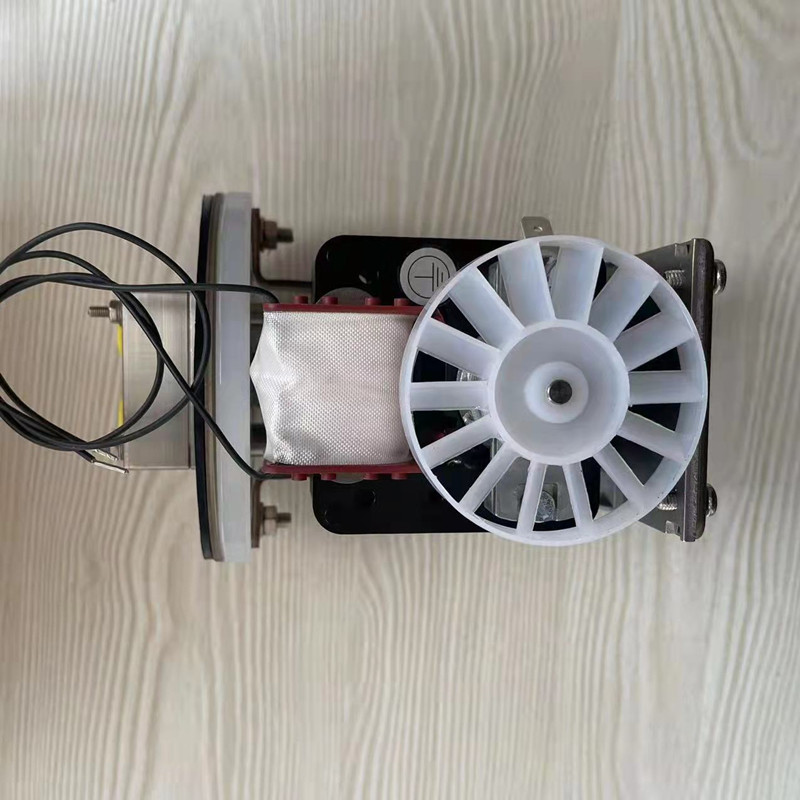

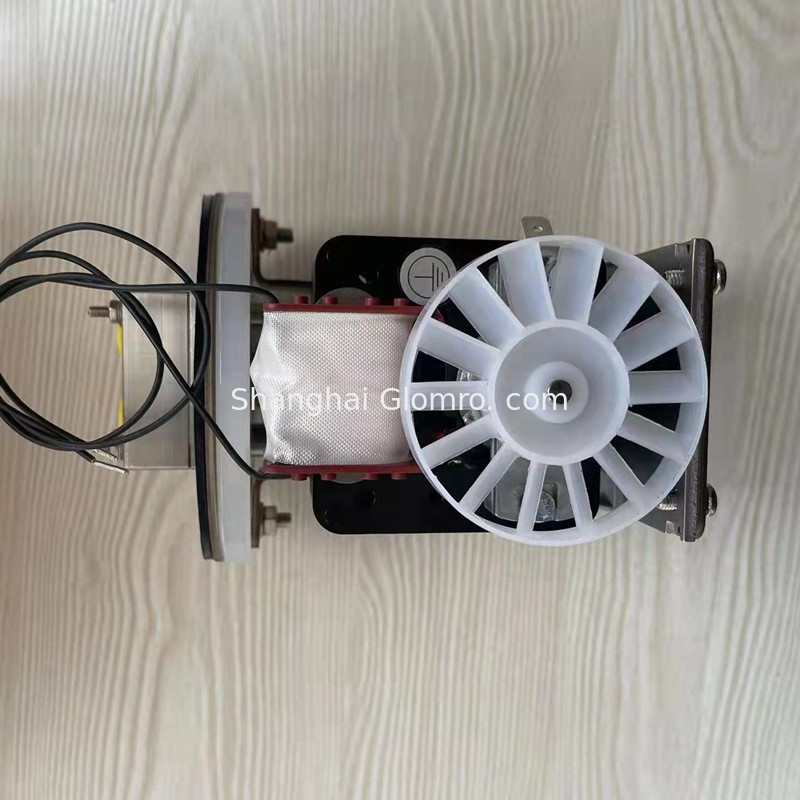

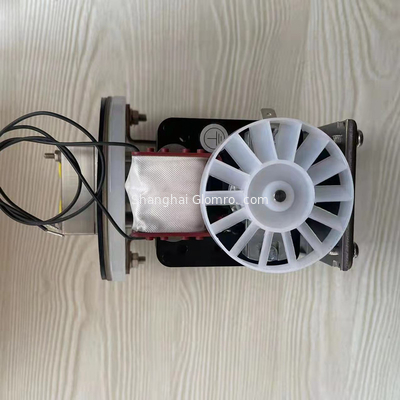

BAXIT High Temperature Resistant Diaphragm Vacuum Pump KCN86.HW
Adapt to the environment:
This product is used in industrial process gas continuous analysis system (extraction measurement), for gas extraction, internal anti-corrosion treatment, especially suitable for flue gas analysis. Extraction of gases such as SO2, NOX, CO2, CO, N2, O2, or a mixer can be performed.
Installation method:
This product is panel mounted, the mounting hole spacing is: 48mm, 48mm. The mounting hole size is: 4-Φ5.
Main feature:
1. Non-polluting transportation, discharge and compression;
2. High air tightness;
3. Low noise and low vibration;
4. Small size, light weight and high performance;
5, 100% oil-free, maintenance-free;
Daily maintenance:
This product is an oil-free diaphragm vacuum pump, no need to refuel. If the inside is clogged or contaminated, open the top four screws, clean the gasket, and clean the pump membrane. If there is serious pollution, resulting in air leakage or insufficient air supply during the sampling process, the pump membrane should be replaced in time.
