Power Supply: | AC 230V/50Hz | Pressure: | 7 Bar |
---|---|---|---|
Air Pumping Capacity: | 15L/min | Permissible Ambient Temperature: | +5~+40℃ |
Permissible Media Temperature: | +5~+40℃ | Weight: | 2.4kg |
Power: | 180W | ||
High Light: | 7 bar Swing Piston Vacuum Pump,180W Knf Piston Vacuum Pump,NPK 09.1.2 AC Piston Vacuum Pump |

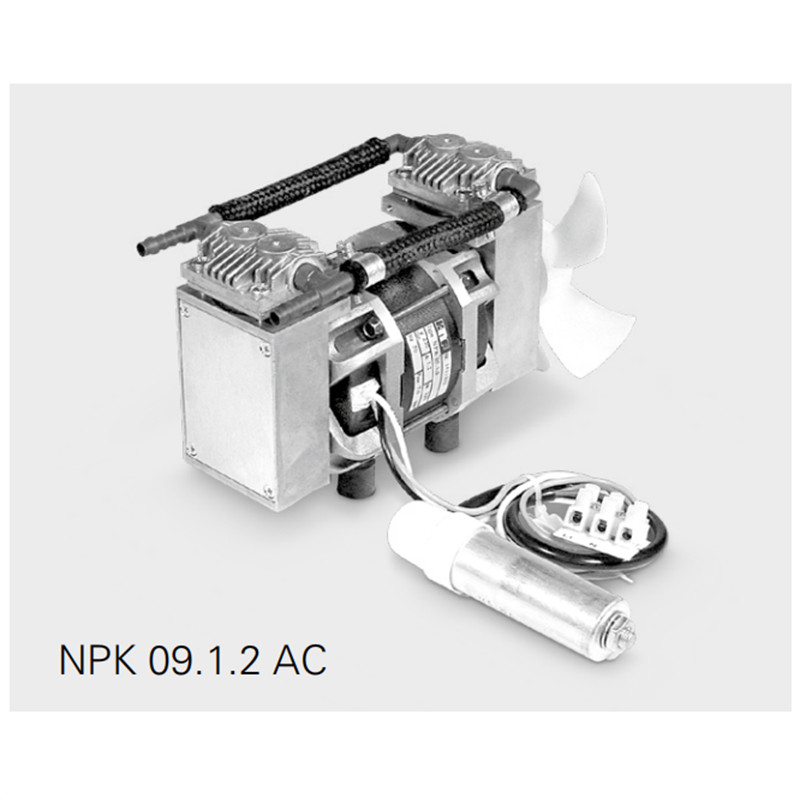

Germany KNF Swing Piston Vacuum Pump NPK 09.1.2 AC / NPK 09 AC / NPK 09 DC
This product is used in industrial process gas continuous analysis system (extraction measurement), for gas extraction, internal anti-corrosion treatment, especially suitable for flue gas analysis. Extraction of gases such as SO2, NOX, CO2, CO, N2, O2, or a mixer can be performed.

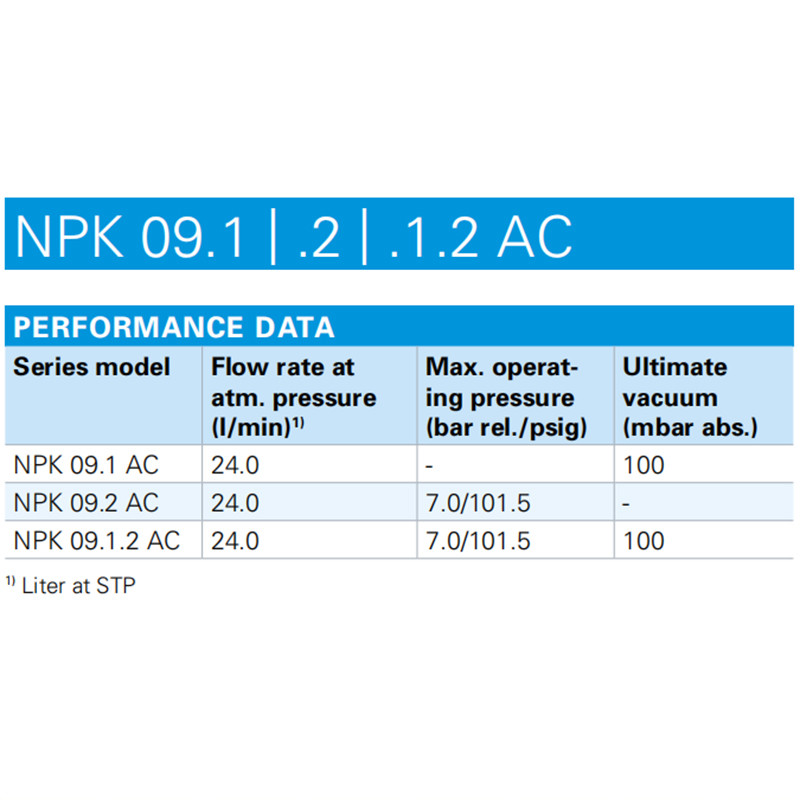

Technical Parameters:
(1) Model: NPK 09.1.2 AC
(2) Air pumping capacity: 24L/min
(3) Power supply: 230VAC 50Hz
(4) Interface: 1/8'' internal thread
(5) Piping: Φ6 PTFE tube
(6) Working pressure: 7bar
(7) Power: 180W
(8) Weight: 2.4 Kg
ADVANTAGES
(1)High level of performance in a compact size
(2)High pressure up to 7 bar rel./101.5 psig
(3)Robust design
POSSIBLE AREAS OF USE
(1)Diagnostics – transfer of liquids and gaseous samples for analysis
(2)Medical technology – e.g. inhalation devices
(3)Vacuum technology – pick & place applications
