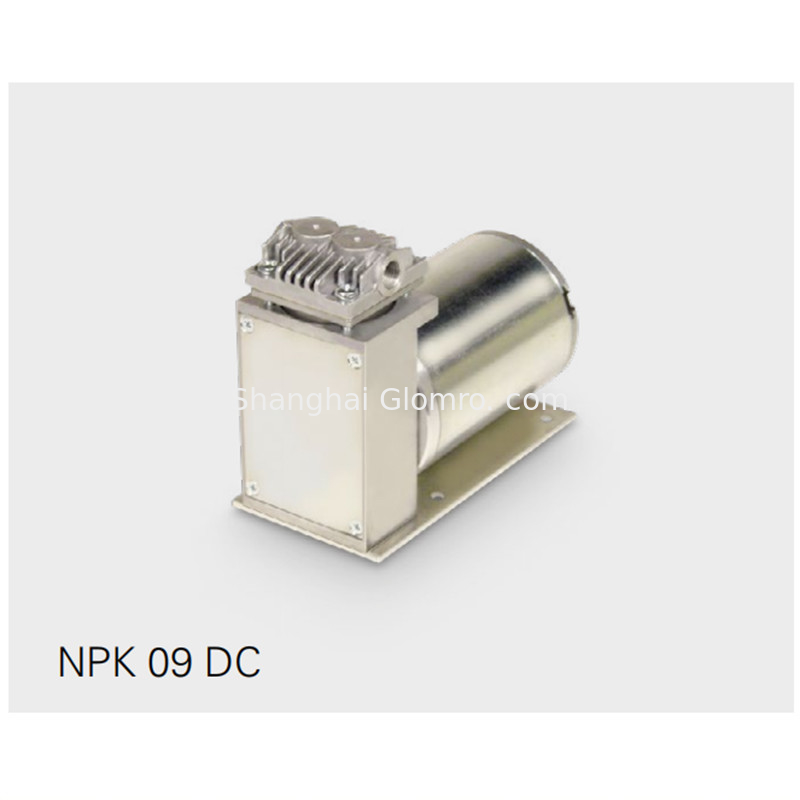

Germany KNF NPK 09 DC 12/24V Swing Piston Vacuum Pump NPK 09 AC

Basic Information
Place of Origin: Germany
Brand Name: KNF
Certification: CE
Model Number: NPK 09 DC
Minimum Order Quantity: 1unit
Price: USD714/unit
Packaging Details: Carton
Delivery Time: 3-5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000units
Detail Information
Power Supply: DC 12/24V Pressure: 7 Bar
Air Pumping Capacity: 15L/min Permissible Ambient Temperature: +5~+40℃
Permissible Media Temperature: +5~+40℃ Weight: 1.8kg
High Light:

KNF Swing Piston Vacuum Pump

,

NPK 09 DC Piston Vacuum Pump

,

Piston Vacuum Pump 7 Bar


Product Description

Germany KNF Vacuum Pump NPK 09 DC 12/24V Swing Piston Vacuum Pump NPK 09 AC

This product is used in industrial process gas continuous analysis system (extraction measurement), for gas extraction, internal anti-corrosion treatment, especially suitable for flue gas analysis. Extraction of gases such as SO2, NOX, CO2, CO, N2, O2, or a mixer can be performed.

Germany KNF NPK 09 DC 12/24V Swing Piston Vacuum Pump NPK 09 AC 0

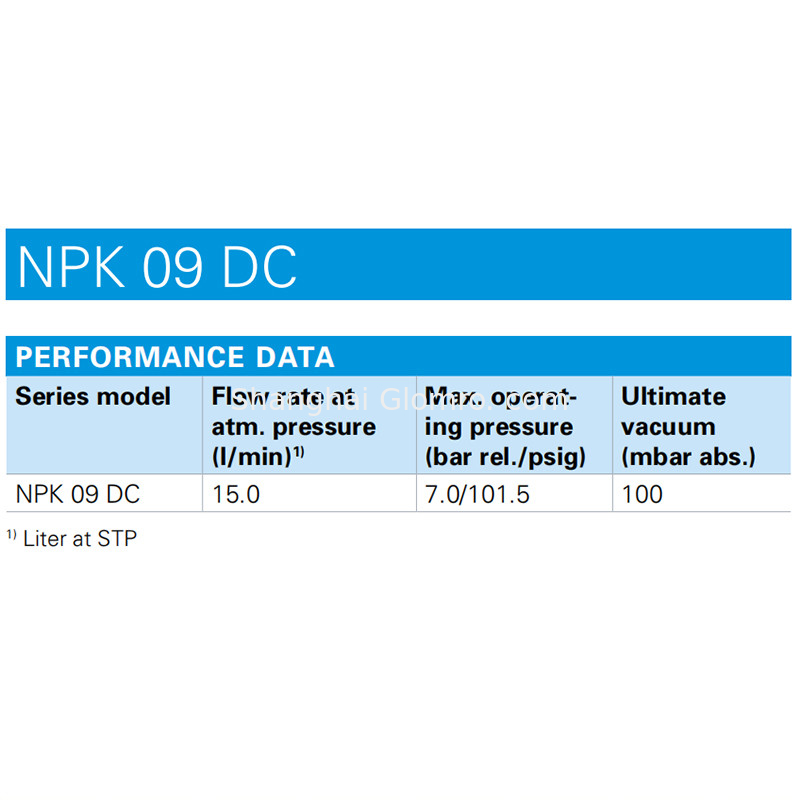

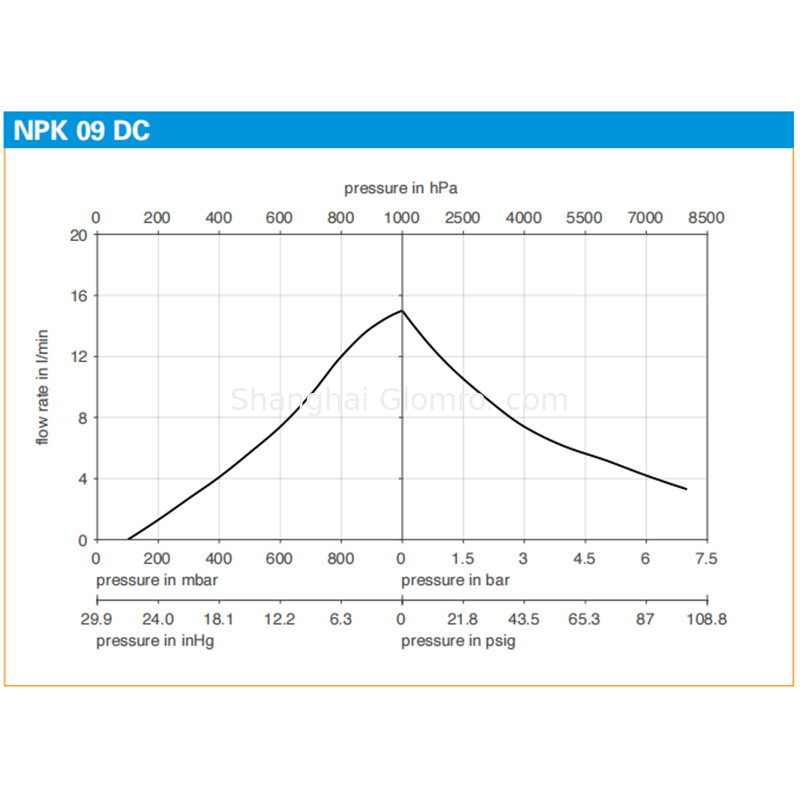

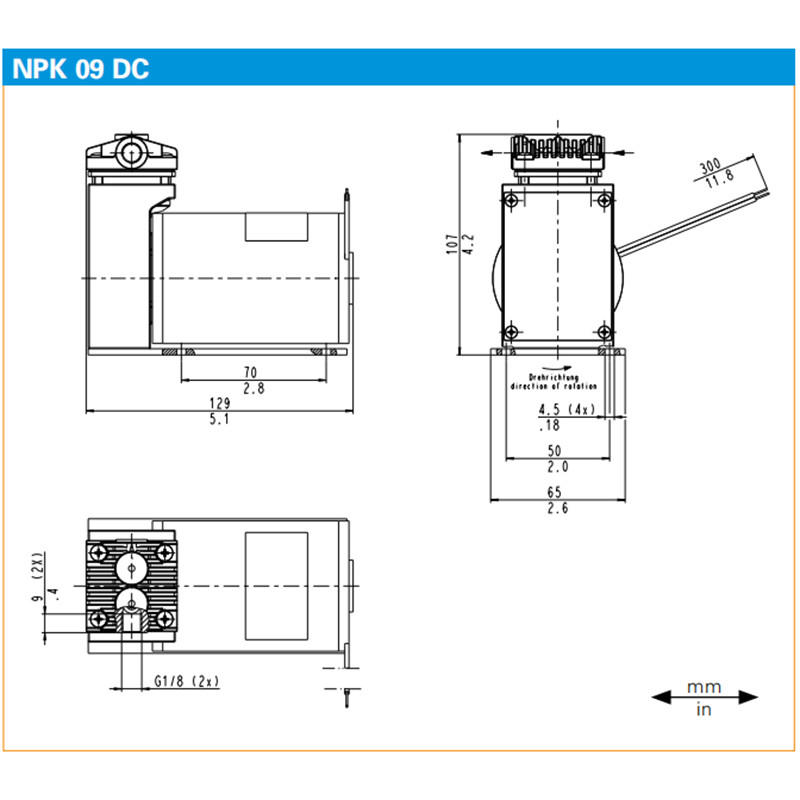

Technical Parameters:

(1) Model: NPK 09 DC

(2) Air pumping capacity: 15L/min

(3) Power supply: DC 12/24V

(4) Interface: 1/8'' internal thread

(5) Piping: Φ6 PTFE tube

(6) Working pressure: 7bar

(7) Weight: 1.6 Kg

Germany KNF NPK 09 DC 12/24V Swing Piston Vacuum Pump NPK 09 AC 1





ADVANTAGES

(1)High level of performance in a compact size

(2)High pressure up to 7 bar rel./101.5 psig

(3)Robust design



POSSIBLE AREAS OF USE

(1)Diagnostics – transfer of liquids and gaseous samples for analysis

(2)Medical technology – e.g. inhalation devices

(3)Vacuum technology – pick & place applications

Germany KNF NPK 09 DC 12/24V Swing Piston Vacuum Pump NPK 09 AC 2Germany KNF NPK 09 DC 12/24V Swing Piston Vacuum Pump NPK 09 AC 3
