| Place of Origin: | Germany |
|---|---|
| Brand Name: | KNF |
| Certification: | CE |
| Model Number: | NPK 09 AC |
| Minimum Order Quantity: | 1unit |
| Price: | USD714/unit |
| Packaging Details: | Carton |
| Delivery Time: | 3-5 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000units |
| Power Supply: | AC 230V/50Hz | Power: | 100W |
|---|---|---|---|
| Pressure: | 7 Bar | Air Pumping Capacity: | 12L/min |
| Permissible Ambient Temperature: | +5~+40℃ | Permissible Media Temperature: | +5~+40℃ |
| Weight: | 1.8kg | ||
| High Light: | KNF Piston Vacuum Pump,NPK 09 AC Piston Vacuum Pump |
||

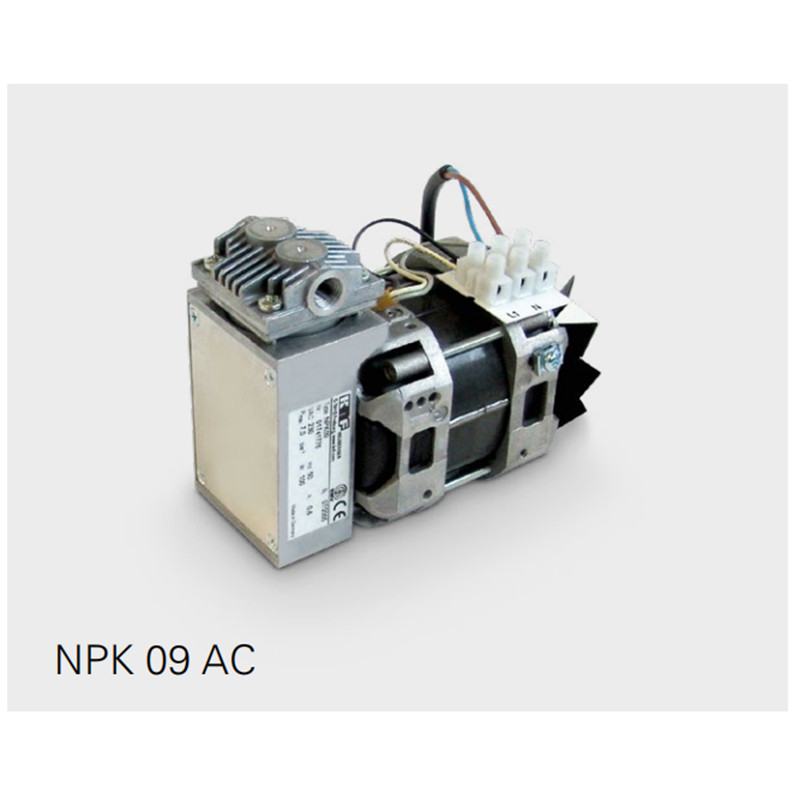

KNF Swing Piston Vacuum Pump and Compressors NPK 09 AC NPK 09 DC
This product is used in industrial process gas continuous analysis system (extraction measurement), for gas extraction, internal anti-corrosion treatment, especially suitable for flue gas analysis. Extraction of gases such as SO2, NOX, CO2, CO, N2, O2, or a mixer can be performed.

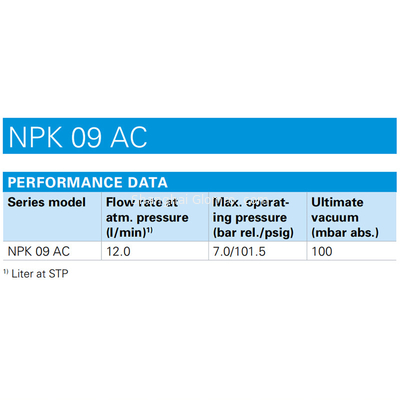

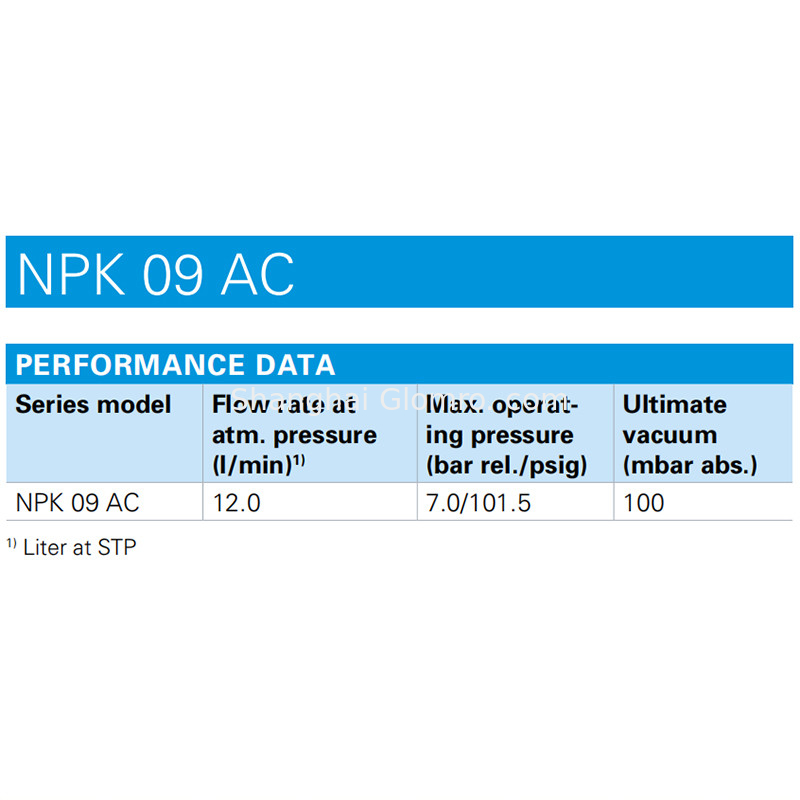

Technical Parameters:
(1) Model: NPK 09 AC
(2) Air pumping capacity: 12L/min
(3) Power supply: 230VAC 50Hz
(4) Interface: 1/8'' internal thread
(5) Piping: Φ6 PTFE tube
(6) Working pressure: 7bar
(7) Power: 100W
(8) Weight: 1.8 Kg
ADVANTAGES
(1)High level of performance in a compact size
(2)High pressure up to 7 bar rel./101.5 psig
(3)Robust design
POSSIBLE AREAS OF USE
(1)Diagnostics – transfer of liquids and gaseous samples for analysis
(2)Medical technology – e.g. inhalation devices
(3)Vacuum technology – pick & place applications
