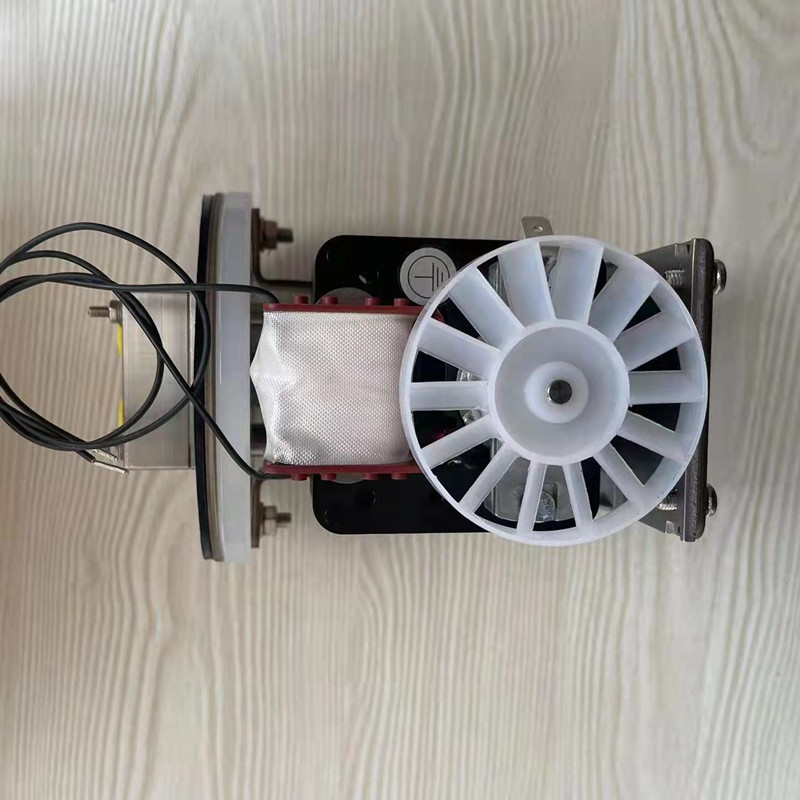

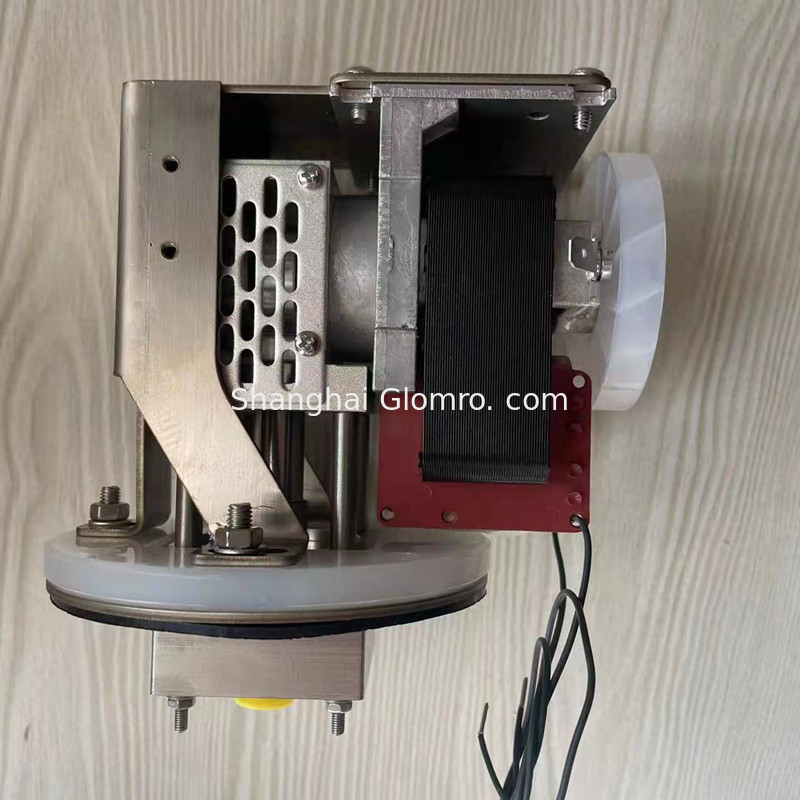

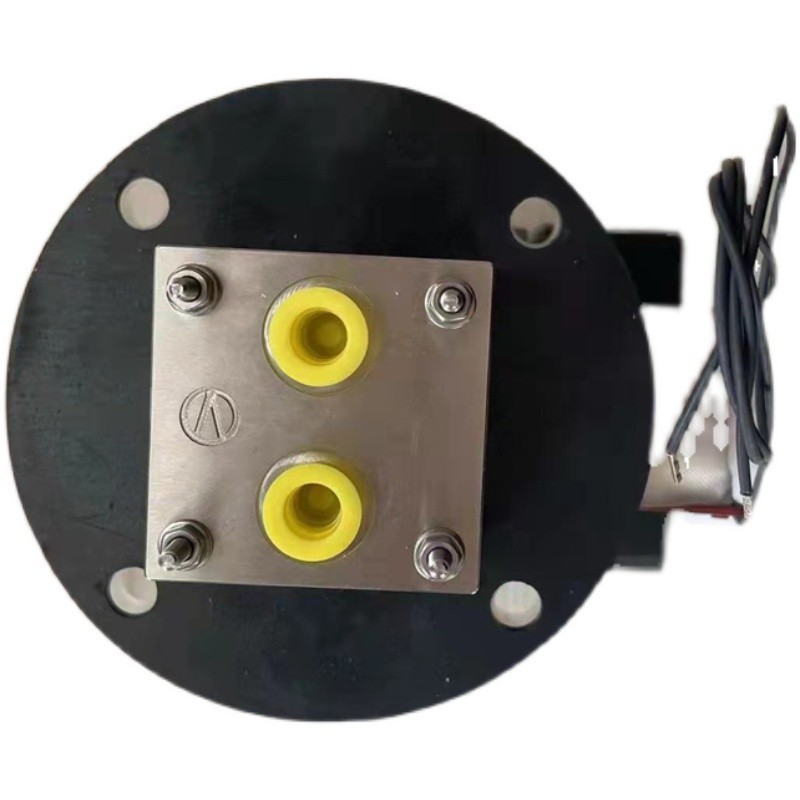

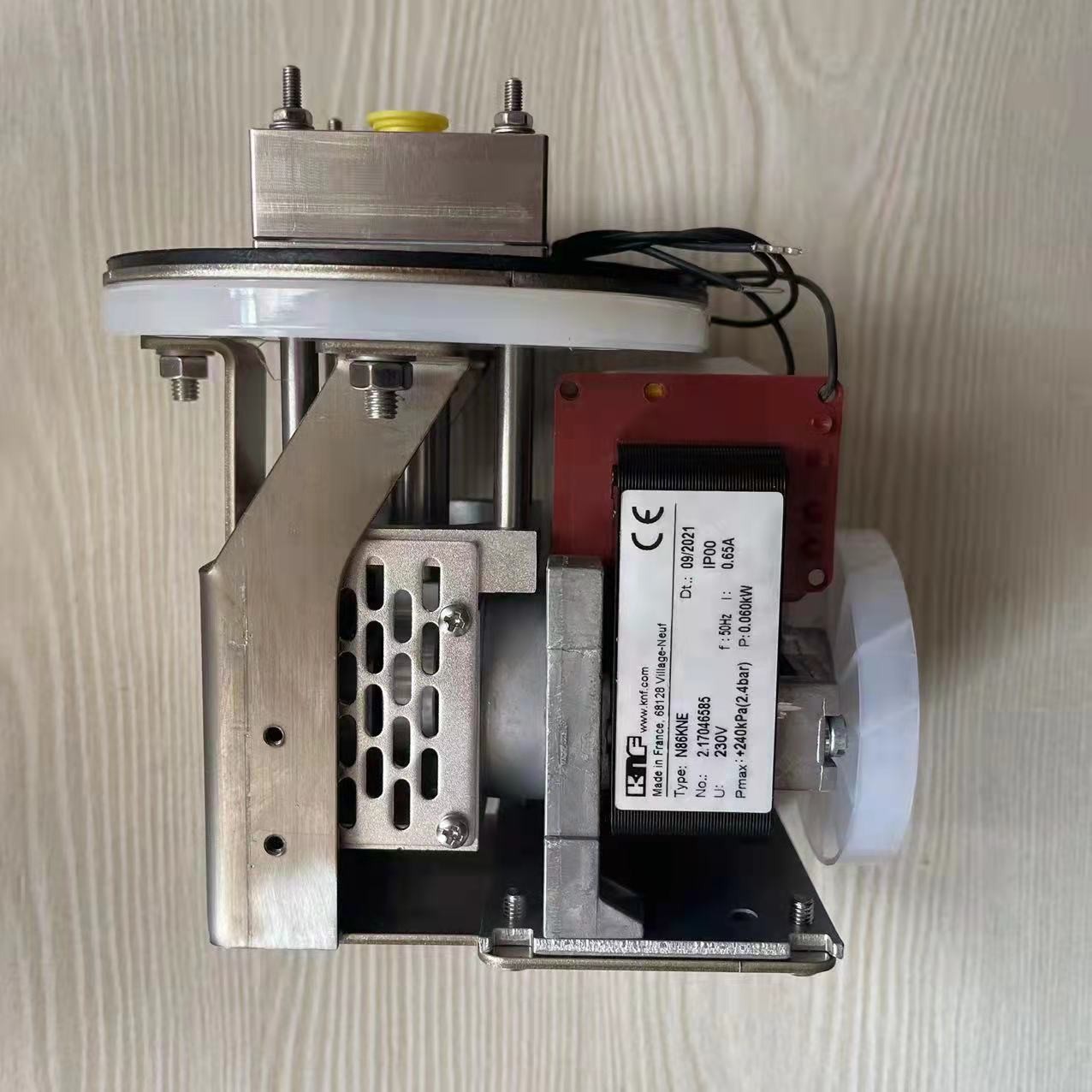

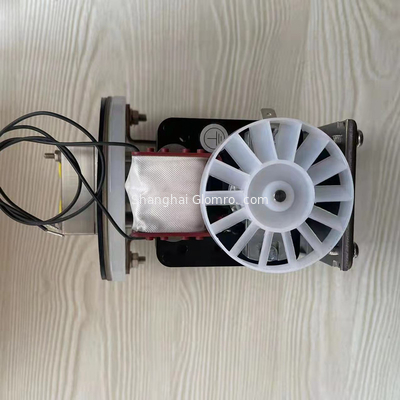

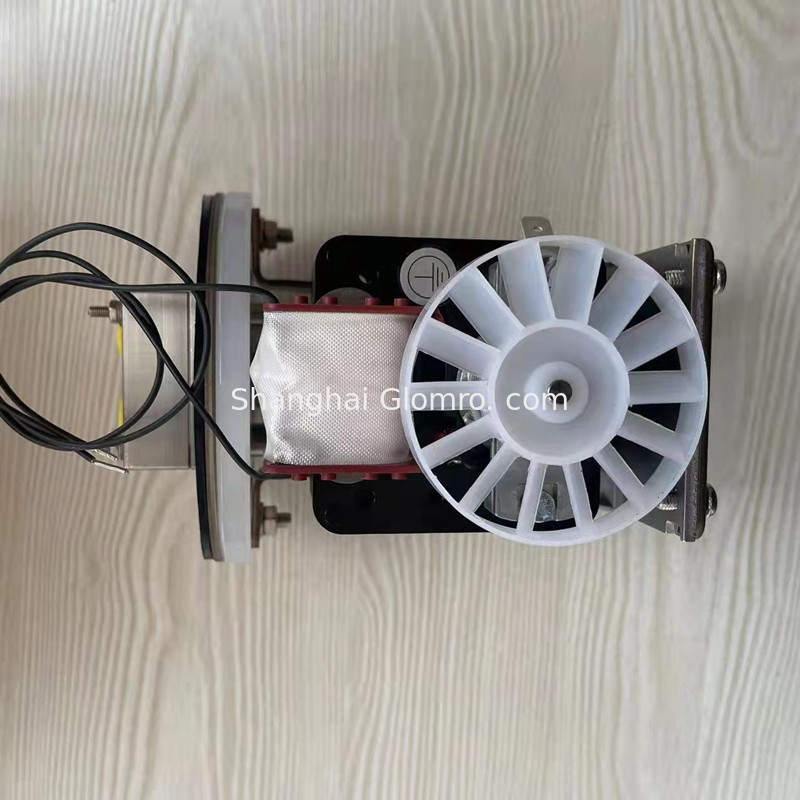

AC230 50Hz KNF Sampling Pump High Temperature Vacuum Pump

Basic Information
Place of Origin: China
Brand Name: BAXIT
Certification: CE
Model Number: KCN86.HW
Minimum Order Quantity: 1unit
Price: USD559/unit
Packaging Details: carton
Delivery Time: 1-3 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000units
Detail Information
Flow: 6L/min Voltage: AC230/50Hz
Power: 60W Pressure: 150kPa
High Light:

KNF Sampling Pump 60W

,

Knf High Temperature Vacuum Pump

,

60W Diaphragm Type Vacuum Pump


Product Description

KNF High Temperature Sampling Pump High Temperature Vacuum Pump

This product is used in industrial process gas continuous analysis system (extraction measurement), for gas extraction, internal anti-corrosion treatment, especially suitable for flue gas analysis. Extraction of gases such as SO2, NOX, CO2, CO, N2, O2, or a mixer can be performed.

AC230 50Hz KNF Sampling Pump High Temperature Vacuum Pump 0

Technical Parameters:

(1) Model: KCN86.HW

(2) Air pumping capacity: 6L/min

(3) Power supply: 230VAC 50Hz

(4) Interface: 1/8'' internal thread

(5) Piping: Φ6 PTFE tube

(6) Working pressure: 1.5Bar

(7) Power: 60W

(8) Weight: 2.4 Kg

Installation method:

This product is panel mounted, the mounting hole spacing is: 48mm, 48mm. The mounting hole size is: 4-Φ5.

Daily maintenance:

This product is an oil-free diaphragm vacuum pump, no need to refuel. If the inside is clogged or contaminated, open the top four screws, clean the gasket, and clean the pump membrane. If there is serious pollution, resulting in air leakage or insufficient air supply during the sampling process, the pump membrane should be replaced in time.
