Unidirectional (vertical/horizontal) bearing vibration testing machine/electromagnetic high frequency vibration

Basic Information
Brand Name: BAXIT
Certification: CE
Model Number: Glo-m56
Minimum Order Quantity: 1(Min. Order)
Price: USD1400-1600 Set|1 Set/Sets(Min. Order)
Delivery Time: 5-8work days
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 5
Detail Information
Vibration Direction: Single Direction (vertical/horizontal) Testing Table Size: Test Table:500*500mm(other Size Can Customized) Test Table Height Of Vertical Machine:220mm Test Table Height Of Horizontal Machine:240mm
Maximum Load: 100kg Frequency Range: 1Hz~600Hz
Amplitude: 0~5mm Maximum Acceleration: 0~20g(1g=9.8m/S2)

Product Description

Single direction (vertical/horizontal) vibration tester/Electromagnetic high frequency vibration testing machine

QUICK DETAILS



Suitable for low frequency vibration test of samples in labs and production lines in industries such as electronic components, components, electromechanical products, instrumentation, electronic toys, medicine and food packaging...etc. Such as quality appraisal test, reliability appraisal test, endurance test, vibration modal analysis, material property test, fatigue test, vibration prevention and improvement. Simulate the vibration environment that the product suffers during manufacturing, assembly, transportation, and use to assess the vibration resistance, reliability, and integrity of its structure.

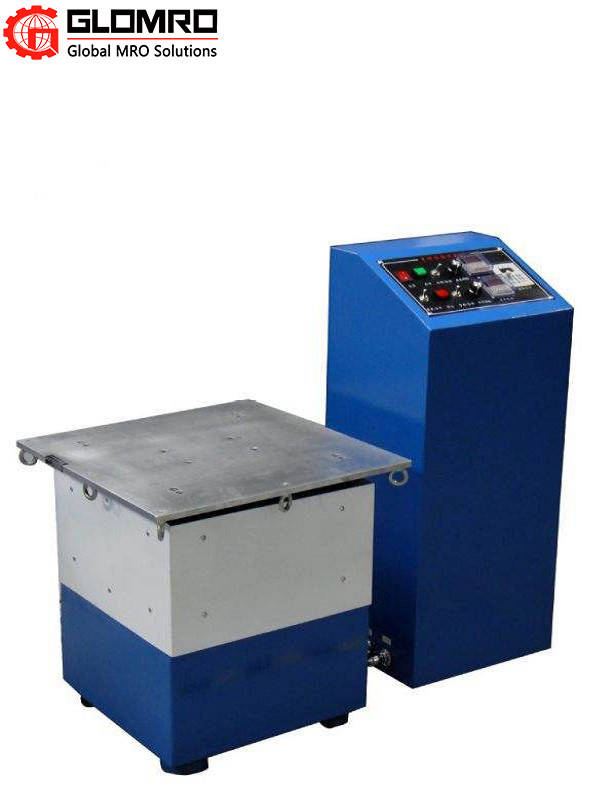

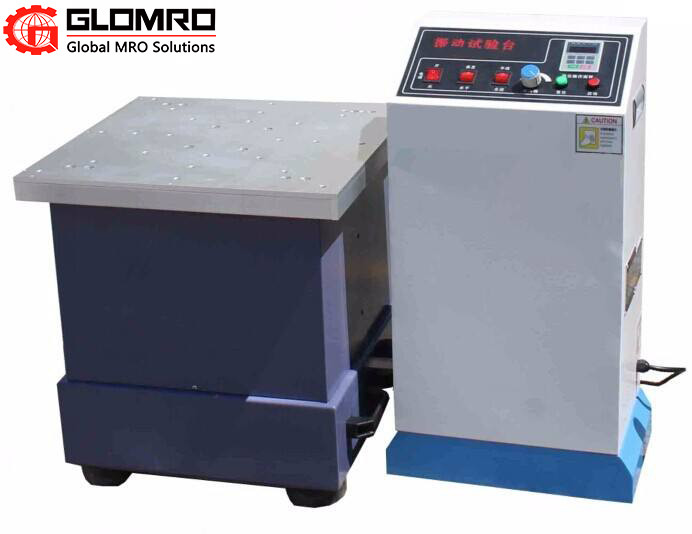

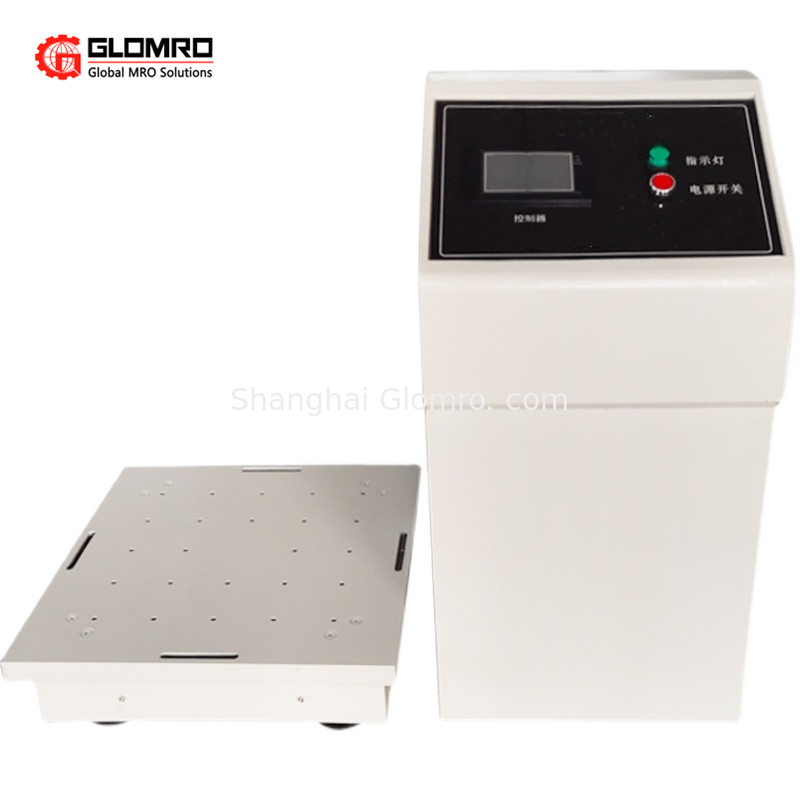

Unidirectional (vertical/horizontal) bearing vibration testing machine/electromagnetic high frequency vibration 0Unidirectional (vertical/horizontal) bearing vibration testing machine/electromagnetic high frequency vibration 1

Product name Model direction  of  vibration Size Frequency range
Vertical vibration
test stand
BXT-160 vertical 500x500x160MM 1~600

Horizontal vibration
test stand
BXT-260 horizontal 500x500x260MM 1~2000
Four dimensional
shaking table
BXT-360 Vertical +horizontal 500x500x360MM 1~3000
Six dimensional
shaking table
BXT-580 Up and down
left and right
front and back
500x500x580MM 1~5000
Maximum test load (KG) 100
Frequency range (0.01Hz) 1HZ~600HZ
Table size (CM) 50*1*50
Body size(CM) Vertical+Horizontal +front and rear (50*58*50)
The amplitude 0~5MM
Maximum acceleration 20G
The vibration direction Vertical +horizontal + front and rear
(automatic six-dimensional all-in-one shaking table)
frequency modulation Any frequency in the range of 1-600Hz
Frequency sweep 1-600Hz canbe set arbitrarily,real standard sweep back and forth
Programmable function 1-600Hz, 1-8 sections each section can be
set arbitrarily frequency and time, can be cyclic
Frequency doubling 8 sections multiplied,low to high frequency high to low frequency low to high and then high to high cycle
Logarithmic function Down to up frequency, up to down frequency,
down to up frequency and down to down
frequency-three modes logarithmic/recyclable
The vibration waveform Half wave/full wave
Time control Any time can be set
precision Frequency can be displayed to 0.01Hz,precision 0.1Hz
The total power 2.6 KW
Power supply voltage (V) 220v
Realize the function Sine wave, FM, sweep, programmable,
frequency doubling, logarithm, time control, random vibration

Unidirectional (vertical/horizontal) bearing vibration testing machine/electromagnetic high frequency vibration 2Unidirectional (vertical/horizontal) bearing vibration testing machine/electromagnetic high frequency vibration 3Unidirectional (vertical/horizontal) bearing vibration testing machine/electromagnetic high frequency vibration 4Unidirectional (vertical/horizontal) bearing vibration testing machine/electromagnetic high frequency vibration 5Unidirectional (vertical/horizontal) bearing vibration testing machine/electromagnetic high frequency vibration 6Unidirectional (vertical/horizontal) bearing vibration testing machine/electromagnetic high frequency vibration 7Unidirectional (vertical/horizontal) bearing vibration testing machine/electromagnetic high frequency vibration 8Unidirectional (vertical/horizontal) bearing vibration testing machine/electromagnetic high frequency vibration 9Unidirectional (vertical/horizontal) bearing vibration testing machine/electromagnetic high frequency vibration 10

FUNCTIONS



1, table size (mm): 500×1000 other sizes can be customized

2. Amplitude: 0~5mm

3, the maximum load: 100kg

4, frequency: 1Hz~600Hz

5, the maximum acceleration: 0 ~ 20g (1g = 9.8m/S2)

6, vibration waveform: sine wave (half-wave, full-wave)

7. Sweep function (1~600Hz): (up frequency/down frequency/time range) can be set arbitrarily to standard sweep back and forth.

8. Programmable function (1~600Hz): 1~15 segments. The time and frequency of each segment can be arbitrarily set to achieve the cycle detection function.

9, vibration direction: 1 vertical (Z axis), 2 horizontal (X, Y axis), 3 vertical + horizontal (Y, X, Z axis)

10, precision: frequency can be displayed to 0.01Hz

11. Shaking table power: 4.5kw

12, power supply voltage: 380V 50Hz

13, the maximum current: 10A

16, time control: any time can be set (seconds)

17, to achieve the function: sine wave, FM, frequency sweep, programmable, maximum acceleration, amplitude modulation, time control.

18, measuring instrument (optional): if you need to read the amplitude, acceleration

ADVANTAGES



1. Using 7 inch touch screen instrument and self-designed PLC module control


2. U disk can export data, install related software can be connected to the computer control


3. Has a single point, segment, multi-segment time setting function


4. The control parameters are displayed synchronously in real time. No manual intervention


5. Accurately achieve controllable results. And can display the control curve


6. The background communication protocol can be opened according to customer requirements, and the customer can program it on the computer (the conventional one-way vibration table does not have this function)


7. Golden ratio laser cutting table, integrated work table


The bottom of the machine is equipped with non-slip cushion rubber pad, no need to install it separately



Unidirectional (vertical/horizontal) bearing vibration testing machine/electromagnetic high frequency vibration 11
