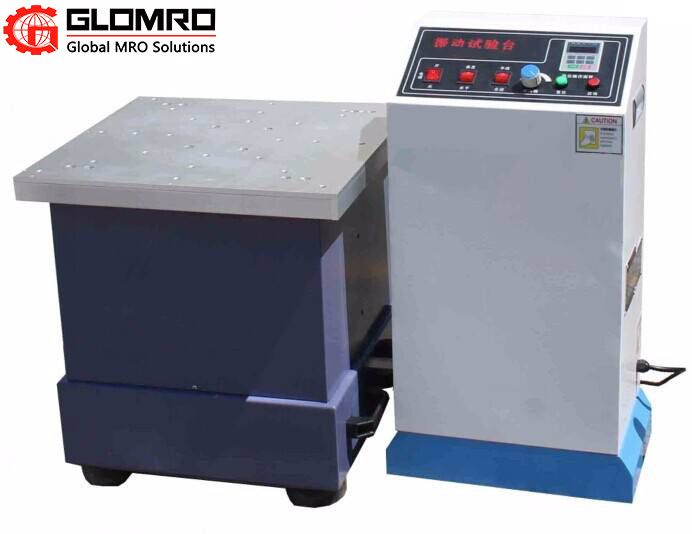

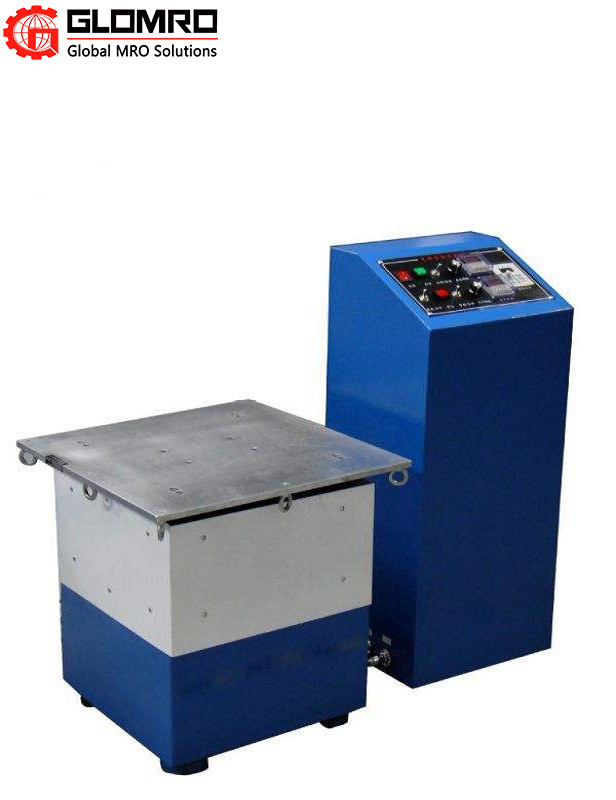

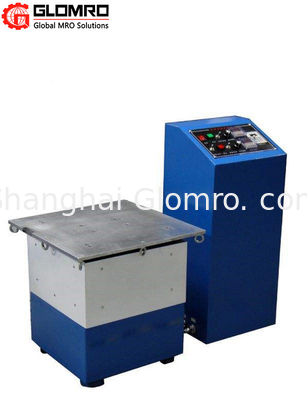

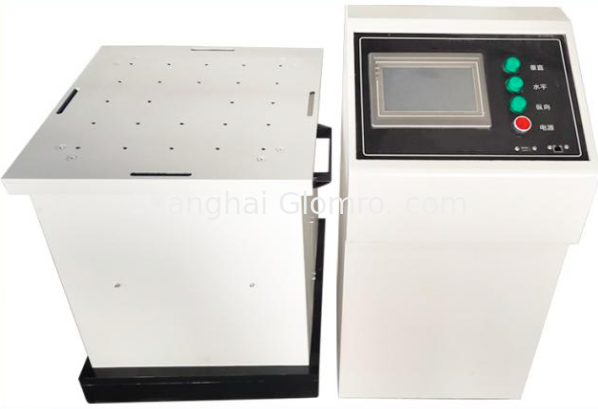

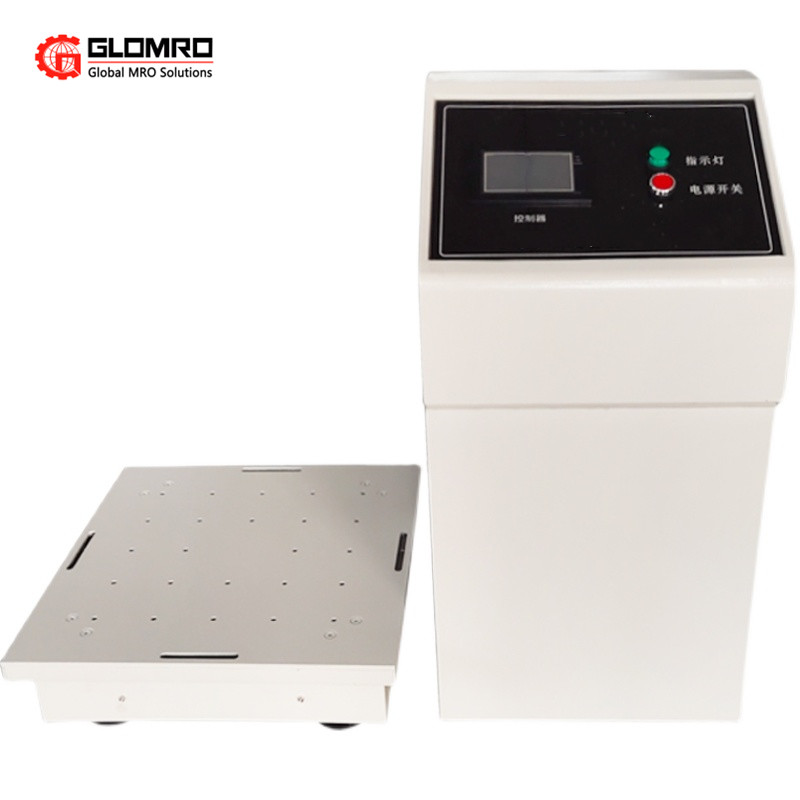

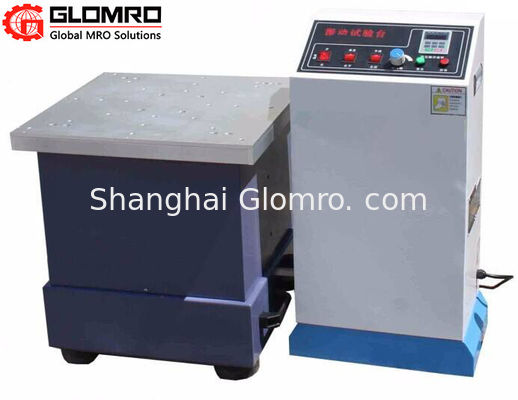

Single direction (vertical/horizontal) vibration tester/Electromagnetic high frequency vibration testing machine
QUICK DETAILS
suitable for electronic,electromechanical,optical communications,packaging,auto parts,toys and other industry research,development,quality control and manufacturing.quality control inspection and production line,assembly line.It is more suitable for quality inspection of finished product for improving product quality.The independently developed CIMS +FCS is adopted for the shaking table software system,which can be expanded and configured with acceleration sensor and PC monitoring.The latest international vibration test standards are quoted to realize the selection of fixed frequency,sweep frequency, frequency doubling,program,logarithm and random vibration modes.
| Maximum test load (KG) |
100 |
| Frequency range (0.01Hz) |
1HZ~600HZ |
| Table size (CM) |
50*1*50 |
| Body size(CM) |
Vertical+Horizontal +front and rear (50*58*50) |
| The amplitude |
0~5MM |
| Maximum acceleration |
20G |
| The vibration direction |
Vertical +horizontal + front and rear
(automatic six-dimensional all-in-one shaking table) |
| frequency modulation |
Any frequency in the range of 1-600Hz |
| Frequency sweep |
1-600Hz canbe set arbitrarily,real standard sweep back and forth |
| Programmable function |
1-600Hz, 1-8 sections each section can be
set arbitrarily frequency and time, can be cyclic |
| Frequency doubling |
8 sections multiplied,low to high frequency high to low frequency low to high and then high to high cycle |
| Logarithmic function |
Down to up frequency, up to down frequency,
down to up frequency and down to down
frequency-three modes logarithmic/recyclable |
| The vibration waveform |
Half wave/full wave |
| Time control |
Any time can be set |
| precision |
Frequency can be displayed to 0.01Hz,precision 0.1Hz |
| The total power |
2.6 KW |
| Power supply voltage (V) |
380v |
| Realize the function |
Sine wave, FM, sweep, programmable,
frequency doubling, logarithm, time control, random vibration |
FUNCTIONS
1, table size (mm): 500×1000 other sizes can be customized
2. Amplitude: 0~5mm
3, the maximum load: 100kg
4, frequency: 1Hz~600Hz
5, the maximum acceleration: 0 ~ 20g (1g = 9.8m/S2)
6, vibration waveform: sine wave (half-wave, full-wave)
7. Sweep function (1~600Hz): (up frequency/down frequency/time range) can be set arbitrarily to standard sweep back and forth.
8. Programmable function (1~600Hz): 1~15 segments. The time and frequency of each segment can be arbitrarily set to achieve the cycle detection function.
9, vibration direction: 1 vertical (Z axis), 2 horizontal (X, Y axis), 3 vertical + horizontal (Y, X, Z axis)
10, precision: frequency can be displayed to 0.01Hz
11. Shaking table power: 4.5kw
12, power supply voltage: 380V 50Hz
13, the maximum current: 10A
16, time control: any time can be set (seconds)
17, to achieve the function: sine wave, FM, frequency sweep, programmable, maximum acceleration, amplitude modulation, time control.
18, measuring instrument (optional): if you need to read the amplitude, acceleration
ADVANTAGES
1.X,y and Z axis vibration can be realized on the same table,with program control,accurate and balanced frequency,and no drift during long-term operation;
2.With single point,segment and multi segment time timing;
3.Stepless amplitude adjustment,with frequency sweeping and frequency fixing functions,to meet the test requirements of different industries;
4.Embedded amplitude prediction program,four point synchronous excitation,uniform table vibration;
5.The anti-interference circuit is added to solve the interference of strong electromagnetic field to the control circuit,and the table top is non-magnetic and static.
6.It is made of composite industrial materials,precision processing,beautiful and generous platform, humanized operation and control,and adopts special measurement and control module to make the equipment work more stable.
