PJ30080-N86-2.01 VOC Vacuum Sampling Pump CEMS Flue Gas Analysis

Basic Information
Place of Origin: France
Brand Name: KNF
Certification: CE
Model Number: PJ30080-N86-2.01
Minimum Order Quantity: 1
Packaging Details: Carton
Delivery Time: 3-5 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000units
Detail Information
Pumping Volume: 6L/min Power Supply: 220-230V/50Hz
Interface: 1/8' Internal Thread Piping: Φ6 PTFE Tube
Working Pressure: 2.4Bar Power: 60W
Weight: 1.1kg
High Light:

VOC Vacuum Sampling Pump

,

Flue Gas Analysis Vacuum Sampling Pump

,

6L/Min Vacuum Sampling Pump


Product Description

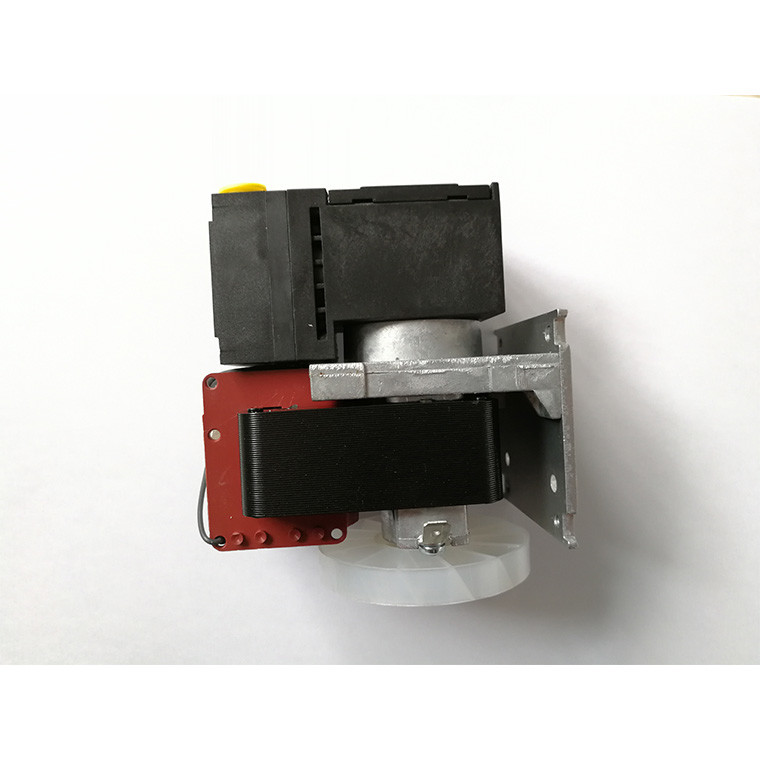

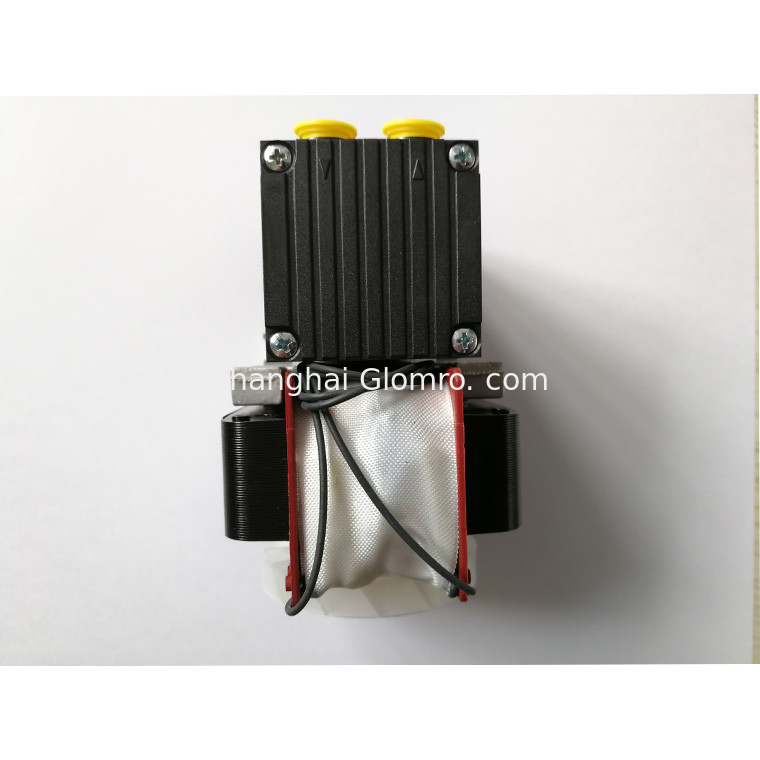

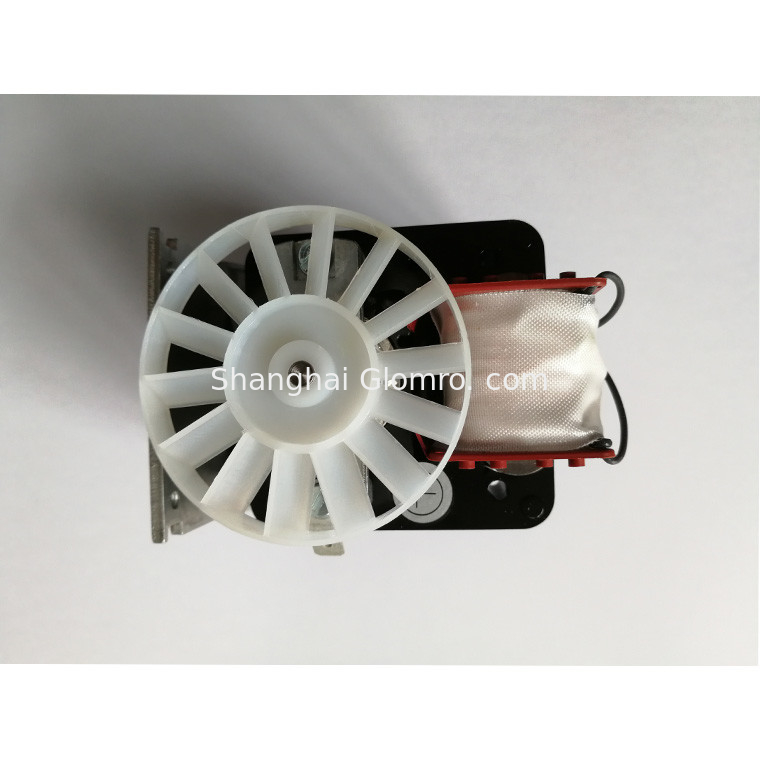

Germany KNF original PJ30080-N86-2.01 Sampling pump VOC Vacuum pump CEMS flue gas analysis Pump







Adapt to the environment:
This product is used in industrial process gas continuous analysis system (extraction measurement), for gas extraction, internal anti-corrosion treatment, especially suitable for flue gas analysis. Extraction of gases such as SO2, NOX, CO2, CO, N2, O2, or a mixer can be performed.



Technical Parameters:
(1) Model: PJ30080-N86-2.01
(2) Air pumping capacity: 6 L/min
(3) Power supply: 220-230VAC 50HZ
(4) Interface: 1/8'' internal thread
(5) Piping: Φ6 PTFE tube
(6) Working pressure: Pmax: 0.5 Bar
(7) Power: 60W
(8) Weight: 1.1 Kg

Installation method:
This product is panel mounted, the mounting hole spacing is: 48mm, 48mm. The mounting hole size is: 4-Φ5.



Daily maintenance:
This product is an oil-free diaphragm vacuum pump, no need to refuel. If the inside is clogged or contaminated, open the top four screws, clean the gasket, and clean the pump membrane. If there is serious pollution, resulting in air leakage or insufficient air supply during the sampling process, the pump membrane should be replaced in time.



PJ30080-N86-2.01 VOC Vacuum Sampling Pump CEMS Flue Gas Analysis 0

PJ30080-N86-2.01 VOC Vacuum Sampling Pump CEMS Flue Gas Analysis 1

PJ30080-N86-2.01 VOC Vacuum Sampling Pump CEMS Flue Gas Analysis 2

PJ30080-N86-2.01 VOC Vacuum Sampling Pump CEMS Flue Gas Analysis 3
