Flame Monitor Industrial MRO Products D-LX 100 UA-B1/M3/94EX/PCG

Basic Information
Place of Origin: China
Brand Name: DURAG
Certification: CE
Model Number: D-LX 100 UA-B1/M3/94EX/PCG
Minimum Order Quantity: 1unit
Packaging Details: carton package
Delivery Time: 8-12 weeks
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000units
Detail Information
Safety: Self-monitoring And Fail-safe Auxiliary Supply: 24 VDC
Flame Relay: 1x NO Contact, 230 VAC, 2 A Status Relay: 1x NO Contact, 230 VAC, 2 A
Flame Failure Detection Time (FFDT): 1, 3, 5 S Flame Intensity: 0/4...20 MA
High Light:

Flame Monitor Industrial MRO Products

,

D-LX 100 UA-B1/M3/94EX/PCG

,

24VDC Industrial MRO Products


Product Description

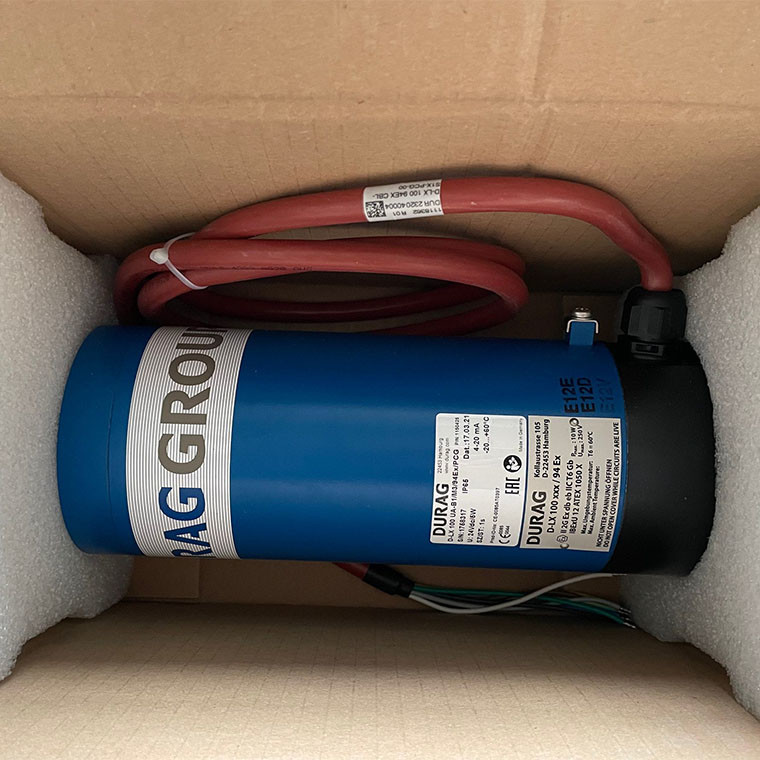

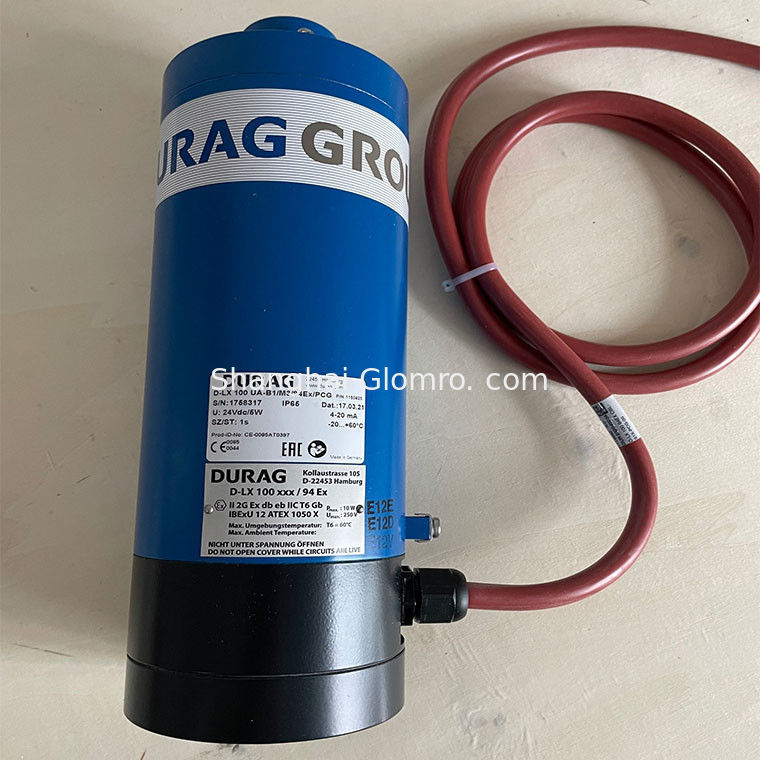

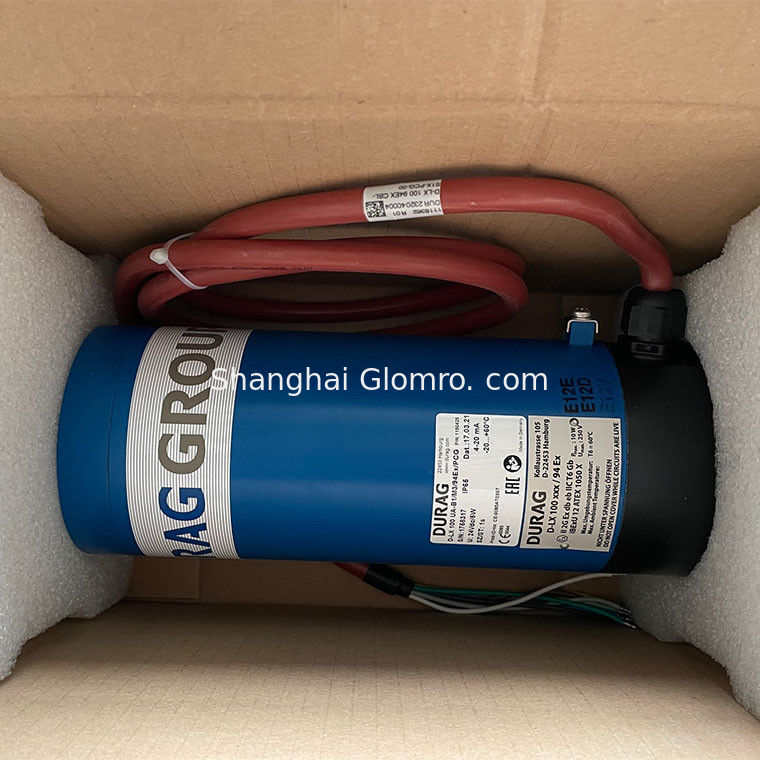

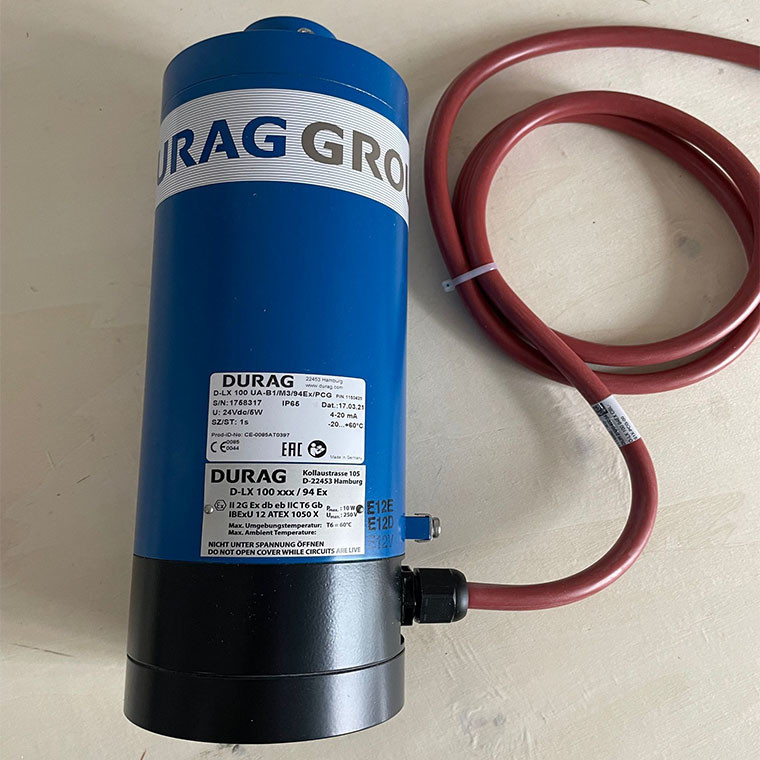

DURAG Flame Monitor Flame Controller Fire Detection D-LX 100 UA-B1/M3/94EX/PCG





Self-monitoring and fail-safe compact flame monitor for the monitoring of gas, oil and coal flames with integrated UV, VIS or IR flame sensor, primarily in single burner view applications.

Overview

For ambient temperatures from -40°C up to +75/70°C, certified and without need for accessories to isolate, heat or cool.

Highest safety combined with highest availability

Ideal support for Functional Safety within safety chains up to SIL3

Flame relay output as changeover relay (SPDT, 1 x NO, 1 x NC)

All variants of the D-LX 110 also available for combination with fibre optic systems (see D-LX 710)

Easy exchange of consumables

Local display of settings and operational status for the whole ambient temperature range, visible for all versions at a single glance

Applications

Simple combustion plants with single burners or optically separated burners

Combustion processes with continuous operation

Thermal processing plants

Chemical industry

Refineries

Waste incinerators

Petrochemical plants

Steel industry

Steam generators

Heating plants

Technical Parameters

D-LE 703 IG-CG DURAG Flame Monitor Flame Controller Fire Detection



Flame Monitor Industrial MRO Products D-LX 100 UA-B1/M3/94EX/PCG 1
