| Place of Origin: | China |
|---|---|
| Brand Name: | BAXIT |
| Certification: | CE |
| Model Number: | BXT-75B |
| Minimum Order Quantity: | 1 |
| Price: | USD1600 |
| Packaging Details: | Wooden Package |
| Delivery Time: | 5-8 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets |
| Voltage: | AC220V/50Hz | Volume: | 75L |
|---|---|---|---|
| Power: | 4500W | Fixed Work Stress: | 0.22MPa |
| Temperature Control Range: | 50-134℃ | Heating Time: | 40min |
| Sterilization Time S: | 4-120min | ||
| High Light: | 75L High Pressure Steam Sterilizer,4500W High Pressure Steam Sterilizer,PID High Pressure Steam Sterilizer |
||

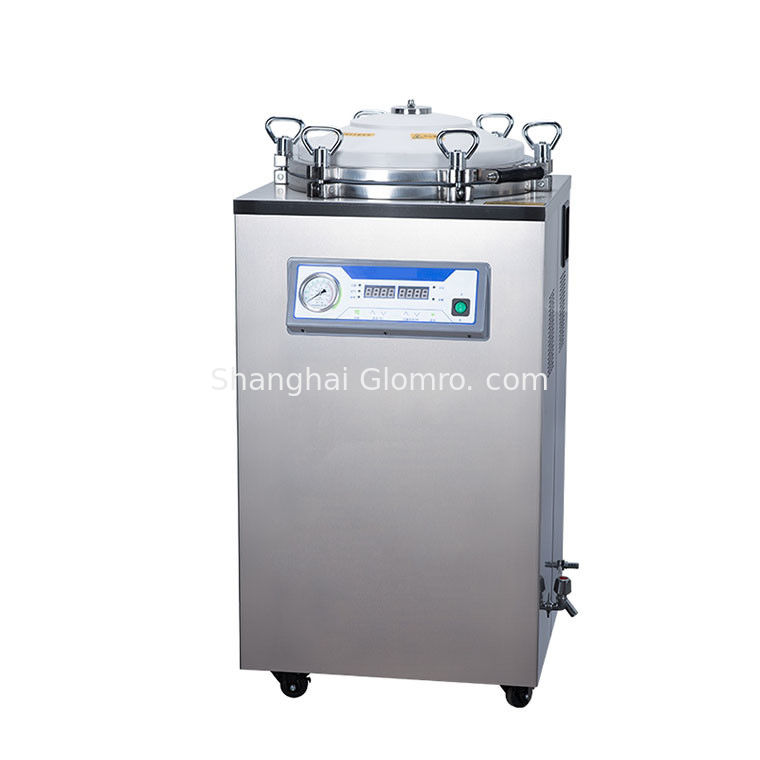

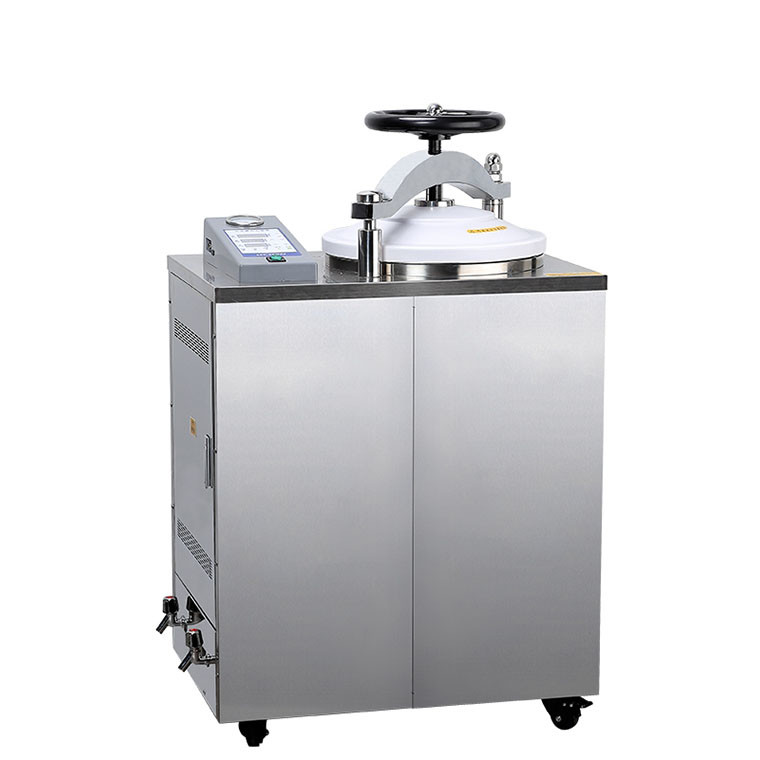

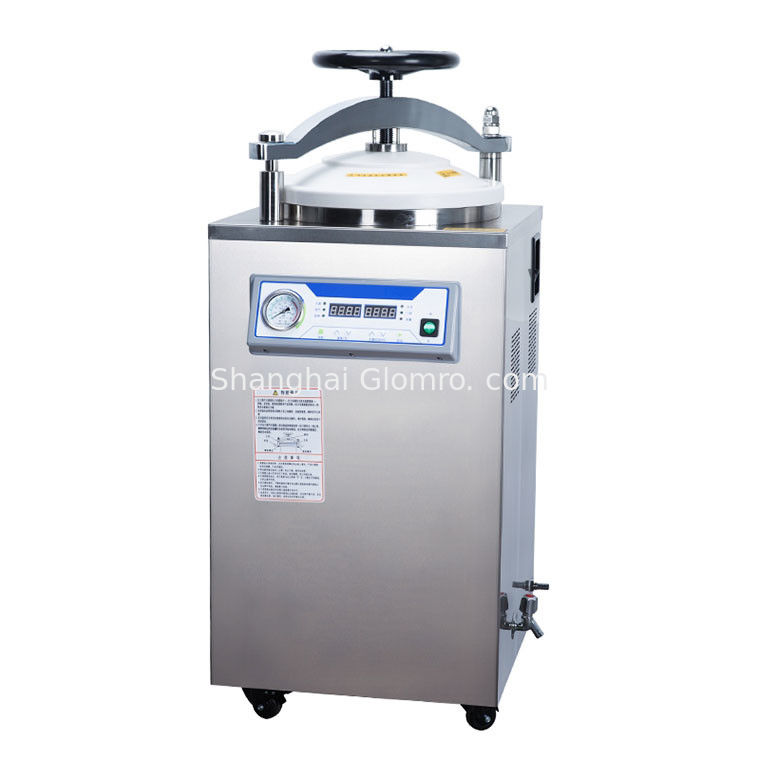

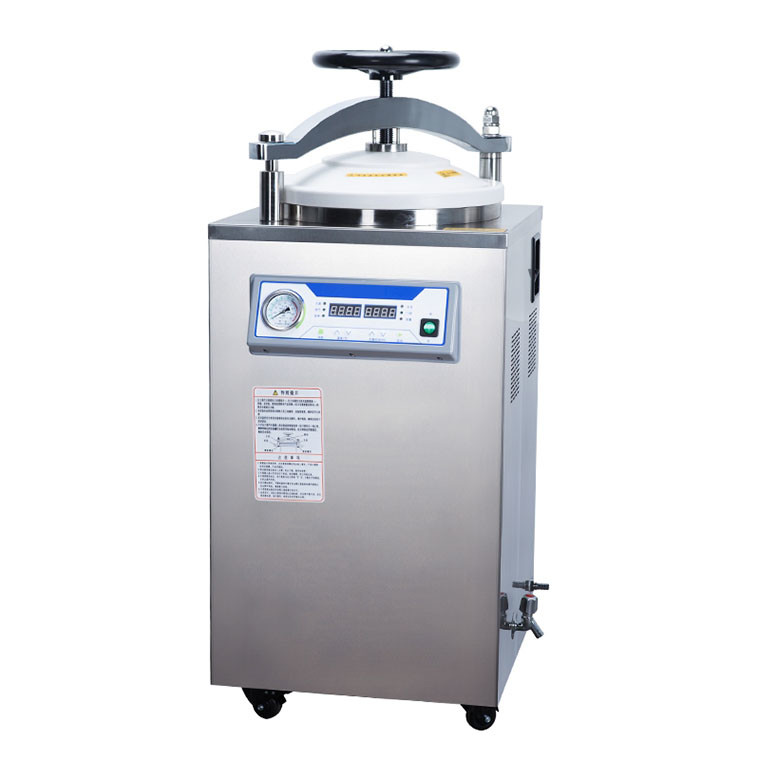

75L Digital Display Vertical Type Autoclave High Pressure Steam Sterilizer
Sterilizer is a rapid and reliable disinfection and sterilization equipment using pressure saturated steam, which is suitable for medical and health institutions, scientific research, agriculture and other units; it is also suitable for disinfection and sterilization of dressings, glassware, solution cultures, etc. It can be used as steaming equipment for high-quality drinking water by enterprises and institutions in plateau areas, and also as a source of high-temperature steam.
Features:
1. Over-temperature automatic protection device: the system automatically cuts off the heating power when the set temperature is exceeded;
2. Anti-dry burning protection device: when the water level is too low, the system automatically cuts off the heating power;
3. Overpressure automatic relief device: if the opening pressure of the safety valve is exceeded, the safety valve will open and release the pressure;
4. Overcurrent protection device: When the equipment is overloaded, the overcurrent protection switch will act and the system will automatically cut off the power supply;
5. Leakage protection device: When the equipment has a leakage fault, the system will automatically cut off the power supply.
6. Safety interlock device: a new type of pressure and temperature double safety interlock, the door cannot be opened after the equipment is pressurized.
7. Door detection device: Only when the sterilizer door is closed in place, the power supply can be turned on and heated to produce steam.
8. The shell, cavity and basket of the sterilizer are all made of 304 stainless steel, which is corrosion-resistant, high-temperature resistant and easy to clean.
9. Multi-parameter display on the operation panel, pressure gauge reading indication, clear observation
10. Microcomputer control, LED digital display, PID function, self-tuning heating parameters, rapid heating, precise temperature control
11. There are two universal wheels and two directional wheels at the bottom of the sterilizer, which can move freely and move the use position lightly.
Technical Parameters:
| Model | BXT-35B BXT-35GI(with drying) BXT-35BL(with bolts) BXT-35L(inner loop) |
BXT-50B BXT-50GI(with drying) BXT-50BL(with bolts) BXT-50L(inner loop) |
BXT-75B BXT-75GI(with drying) BXT-75BL(with bolts) BXT-75L(inner loop) |
BXT-100B BXT-100GI(with drying) BXT-100BL(with bolts) BXT-100L(inner loop) |
BXT-150F |
| Power Supply | AC220V | AC220V | AC220V | AC220V | AC380V |
| Frequency | 50Hz | 50Hz | 50Hz | 50Hz | 50Hz |
| Power | 3.5KW | 3.5KW | 4.5KW | 4.5KW | 6.0KW |
| Volume | 35L | 50L | 75L | 100L | 150L |
| Fixed work stress | 0.22Mpa | 0.22Mpa | 0.22Mpa | 0.22Mpa | 0.165Mpa |
| Temperature control range |
50-134℃ | 50-134℃ | 50-134℃ | 50-134℃ | 50-126℃ |
| Heating time | 40min | 40min | 40min | 40min | / |
| Sterilization time setting range |
4-120min | 4-120min | 4-120min | 4-120min | 0-9999min |
| Drying time equipment range |
BXT-B type does not have this function, with drying and internal circulation type is 0-240min | / | |||
| Max sterilization working temp |
134℃ | 126℃ | |||
| Sterilization room specifications(mm) |
Φ350×400 Φ300×500(B bolt) |
Φ350×525 | Φ400×625 | Φ450×650 | Φ510×920 |
|
Inner cylinder size(mm) |
Φ330×320 Φ280×400(B bol |
Φ330×460 | Φ380×560 | Φ420×540 | Φ510×920 |
| Net basket size (mm) |
/ | Φ320×240×2 | Φ410×300×2 | Φ410×300×2 | Φ450×240×3 |
| Stamping method | BXT-B,BXT-GI and BXT-F type are capped for handwheel BXT-B (bolt) and internal circulation type are capped by bolt |
||||
| Working temp | 5-40℃ | ||||
| Net weight | 78kg 80kg 41kg 110kg |
80kg 82kg 59kg 112kg |
85kg 90kg 78kg 116kg |
97kg 102kg 85kg 129kg |
130kg |
| Product size (mm) |
498×498×940 498×498×940 400×436×840 698×498×940 |
498×498×1100 498×498×1100 480×525×920 698×498×1100 |
570×570×1185 570×570×1185 522×567×1020 770×570×1185 |
588×588×1255 588×588×1255 555×599×1080 788×588×1255 |
660×660×1520 |
