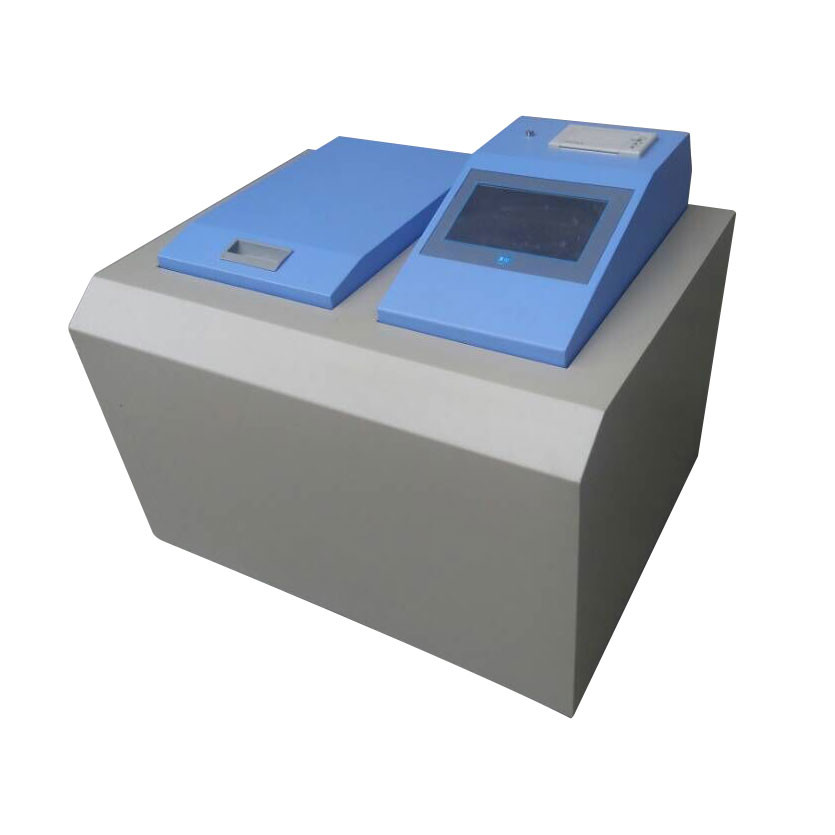

Auto ASTM E711 Oxygen Bomb Calorimeter For Coal Testing

Basic Information
Place of Origin: CHINA
Brand Name: BAXIT
Certification: CE,ISO
Model Number: ZDHW-9B
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 5-8 working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000UNIT /30DAYS
Detail Information
Energy Measurement Range: 0~50000J Temperature Range: 5-40 ° C
Single Calorie Measurement Time: About 15 Minutes Standard: ASTM E711,AS 1038.5,ISO 1928
Temperature Resolution: About 0.0001K Color: White
Highlight:

ASTM E711 Oxygen Bomb Calorimeter

,

Auto Oxygen Bomb Calorimeter

,

Coal Testing Oxygen Bomb Calorimeter


Product Description

Digital Display Oxygen Bomb Calorimeter Heat Absorption





Scope of application:

The automatic calorimeter is suitable for measuring the power, coal, metallurgy, petrochemical, quality inspection, environmental protection cement, papermaking, geological exploration, scientific research institutes and other industrial sectors. Measuring the calorific value of coal, coke, petroleum, cement, brick and other solid or liquid combustibles, in line with the national standard GB/T213-2008 "calculation method of coal calorific value".

In the calorimetric system of the calorimeter, in addition to the heat absorbed by the water, the oxygen bomb, the inner cylinder, the thermometer and the agitator absorb heat, and the respective heat absorption conditions are different. Various factors are complicated, and it is impossible to rely on simple Mathematical calculations can only use the reference of known calorific value, such as benzoic acid, to actually calibrate the heat absorbed by the calorimeter system for every 1 °C increase, that is, to calibrate the calorimeter's heat capacity.



Features:

Ultra-large capacity water tank for large batch continuous 24 hour experiment

1. The experimental data full curve tracking function, can easily view the temperature and time in the curve.

2. With instructions for operation, failure, etc., the experiment ends with automatic voice report results.

3. The window display uses a 7.0-inch color LCD touch screen, the display content is intuitive and easy to understand.

4. Simple and convenient, the control core uses ARM9 microprocessor, fast, real-time.

5. The user only needs to install the oxygen bomb when the user operates, and the remaining electronic balance is used to read the sample weight, oxygen, oxygen bomb, oxygen bomb, quantitative inner cylinder water, ignition, completion test, oxygen bomb deflation, experiment Results statistics and other processes can be fully automated.

6. Automatically adjust the temperature difference between the inner and outer cylinders to ensure that the inner cylinder is about 1K higher than the outer cylinder temperature at the end point, which fully meets the requirements of the national standard 8.2.4, and the test results are stable for a long time.

7. It can carry out experiments for more than 72 hours, which solves the technical problem that the calorimeter without cooling device needs to suspend the experiment due to the increase of the outer cylinder water temperature (overshoot).

8. Imported mechanical parts, automatic oxygenation, automatic deflation, automatic lifting oxygen bombs and other sports.

9. The compressor cooling and special heating device are adopted to realize the automatic control of the water temperature of the outer cylinder, and the temperature control accuracy meets the requirements of the national standard 7.1.4 (±0.1K).



Technical Parameters:

Temperature resolution 0.0001K
Precision ≦0.05%
Conformance with Standard ASTM D5865, ASTM D240, ASTM D4809, ASTM E711, ASTM D5468, AS 1038.5,BS EN 15400, BIS1350,ISO 1928, ISO 9831,ISO18125,GB/T 213,GB/T 30727
Energy Measurement Range 0~50000J
External water tank capacity about 40L
Inner water tank capacity about 2.1L
Temperature range 5-40 ° C
Power ≦100W
Dimensions(cm) 70*73*63
Machine weight 70KG
Power supply voltage AC220V 50Hz
Single calorie measurement time about 15 minutes

Auto ASTM E711 Oxygen Bomb Calorimeter For Coal Testing 0Auto ASTM E711 Oxygen Bomb Calorimeter For Coal Testing 1

Auto ASTM E711 Oxygen Bomb Calorimeter For Coal Testing 2

Auto ASTM E711 Oxygen Bomb Calorimeter For Coal Testing 3

Auto ASTM E711 Oxygen Bomb Calorimeter For Coal Testing 4Auto ASTM E711 Oxygen Bomb Calorimeter For Coal Testing 5
