Izod Pendulum Impact Test Machine For Plastic Charpy

Basic Information
Place of Origin: China
Brand Name: BAXIT
Certification: CE
Model Number: BXT-241
Minimum Order Quantity: 1 set
Packaging Details: 1360*810*1000mm
Delivery Time: 5-8workdays
Payment Terms: T/T, L/C
Supply Ability: 100+sets+5days
Detail Information
Condition:: New Brand Name: GLOMRO
Place Of Origin: China Model Number: GLO-XJL-5/5.5D
Impact Speed: 3.5m/s,2.9m/s Harpy Impact Tester Impact Energy: 1J,2J,4J,5J
Power: Electronic
High Light:

Charpy Impact Tester


Izod Pendulum Impact Test Machine


2.9m/s Plastic Impact Tester

Product Description

Izod Pendulum Impact Test Machine For Plastic/ Charpy Impact Tester



Product Introduction:

This instrument is a new type of multi-functional cantilever beam and simply supported beam integrated impact testing machine. It does not need to disassemble the fixture and sample holder. The cantilever beam and simple beam test method are automatically switched. It is easy to use, simple to operate and high in test accuracy. It is mainly used for the determination of the impact toughness of non-metallic materials such as rigid thermoplastic molding and extrusion materials, hard thermosetting molding materials and fiber-reinforced thermosetting and thermoplastic composites.


Implementation Of Standards:

1. ISO179-2000 "Determination of impact strength of simply supported beams of plastics - hard materials"

2. GB/T1043—2008 “Stiff Test Method for Hard Plastic Simply Supported Beams”

3. JB/T8762-1998 "Plastic simply supported beam impact testing machine"

4. GB/T 18743-2002 "Standard test method for simple supported beams of thermoplastic pipes for fluid transport" (for pipe fittings)

5. ISO180—2000 "Determination of impact strength of plastic-hard material cantilever beam"

6. GB/T1843—2008 “Hard plastic cantilever beam impact test method”

7. JB/T8761—1998 “Plastic Cantilever Beam Impact Tester”

8. ASTM D256-2010 "Test Method for Determining Impact Strength of Plastic IZOD Pendulum"


Product Features:

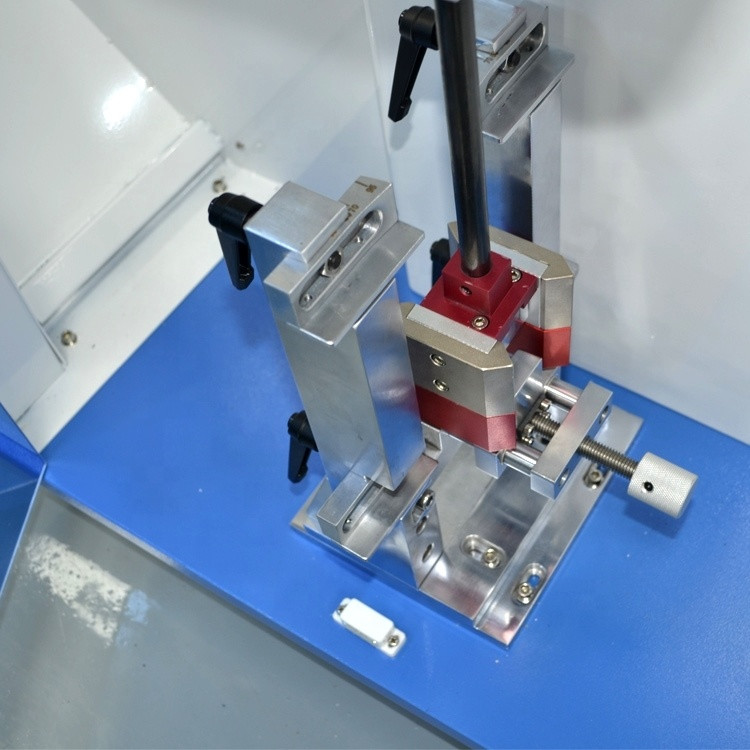

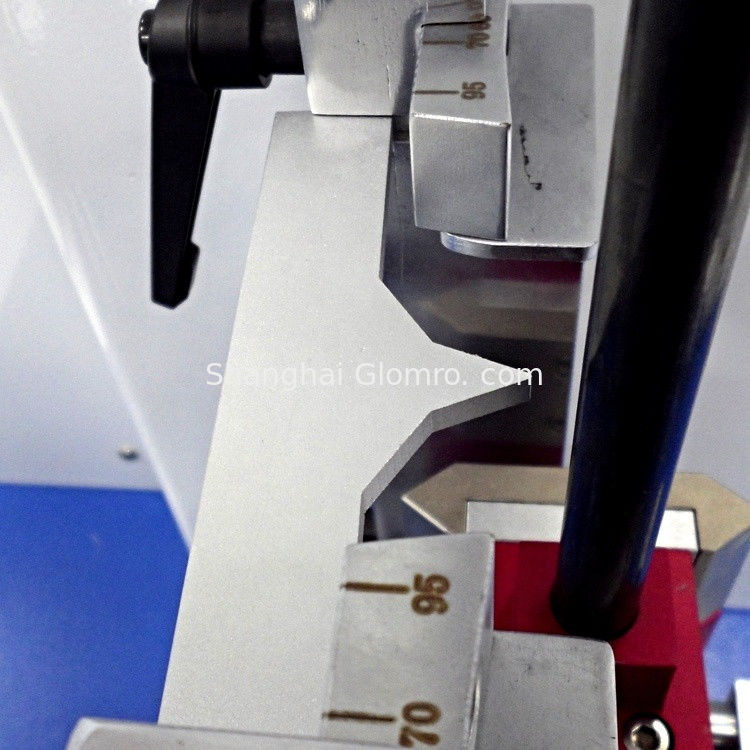

1. Cantilever beam and simple beam integrated impact, no need to disassemble fixture and sample holder

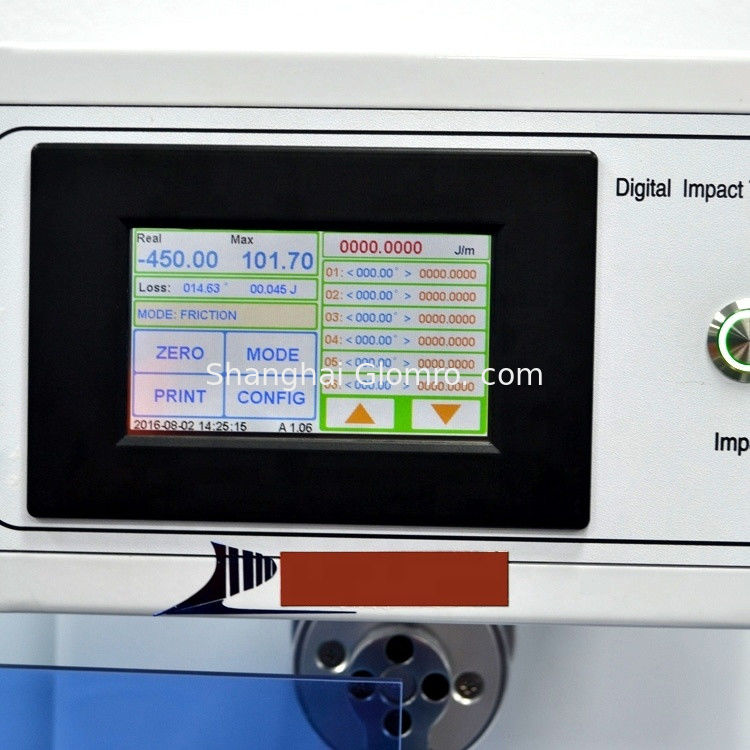

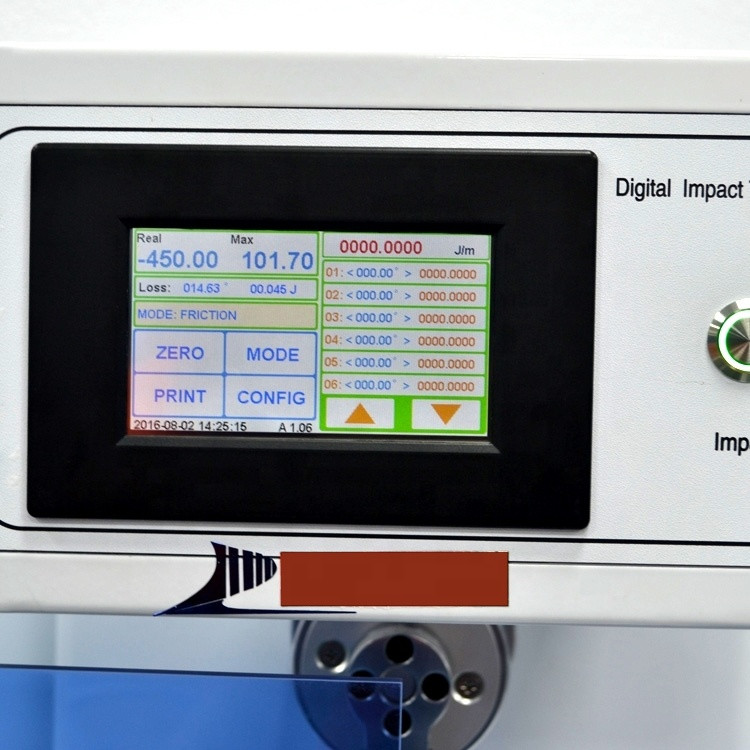

2. High-precision intelligent controller with LCD display for intuitive and accurate data reading

3. The first domestic use of carbon fiber pendulum (patent applied), in the impact direction, improve the rigidity of the material, and focus the impact mass on the centroid of the pendulum, truly vibration-free impact test, and the service life increases.

4. Imported high-resolution digital encoder, the angle test accuracy is higher and more stable

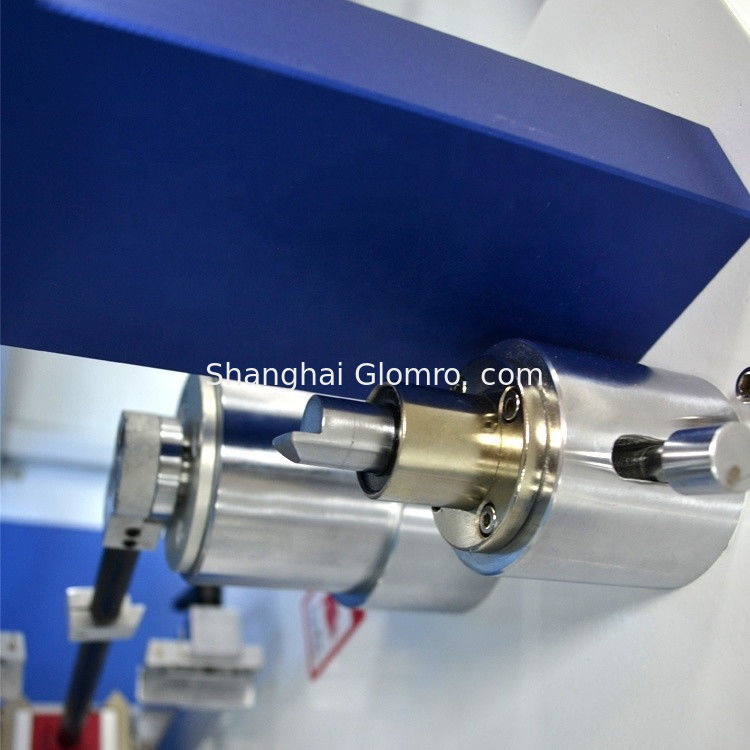

5. Aerodynamic principle of impact hammer and imported ball bearing, greatly reducing the friction loss caused by machinery

6. Automatic calculation of the final result, the test data can save 12 sets of data and average

7. Choice of Chinese and English operation interface, test results can choose J/m, KJ/m2, kg-cm/cm, ft-ib/in and other units

8. Built-in micro printer print test data

Product Details:

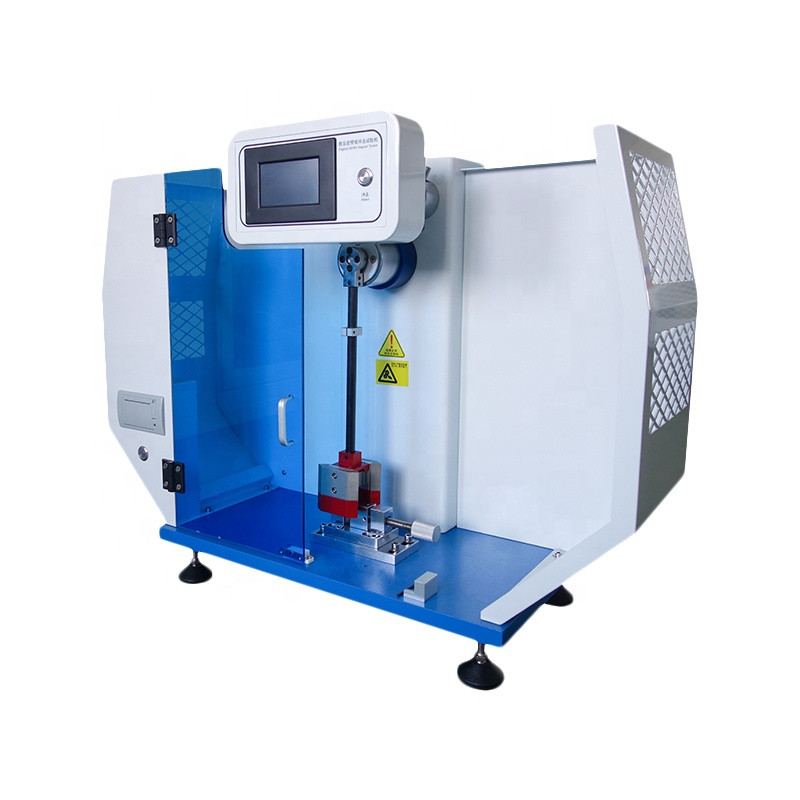

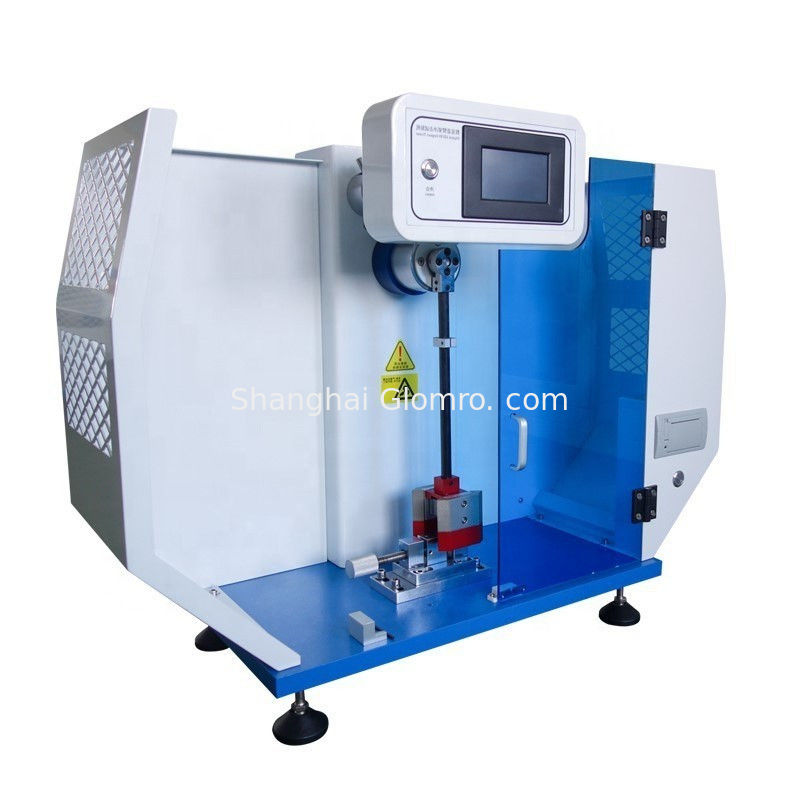

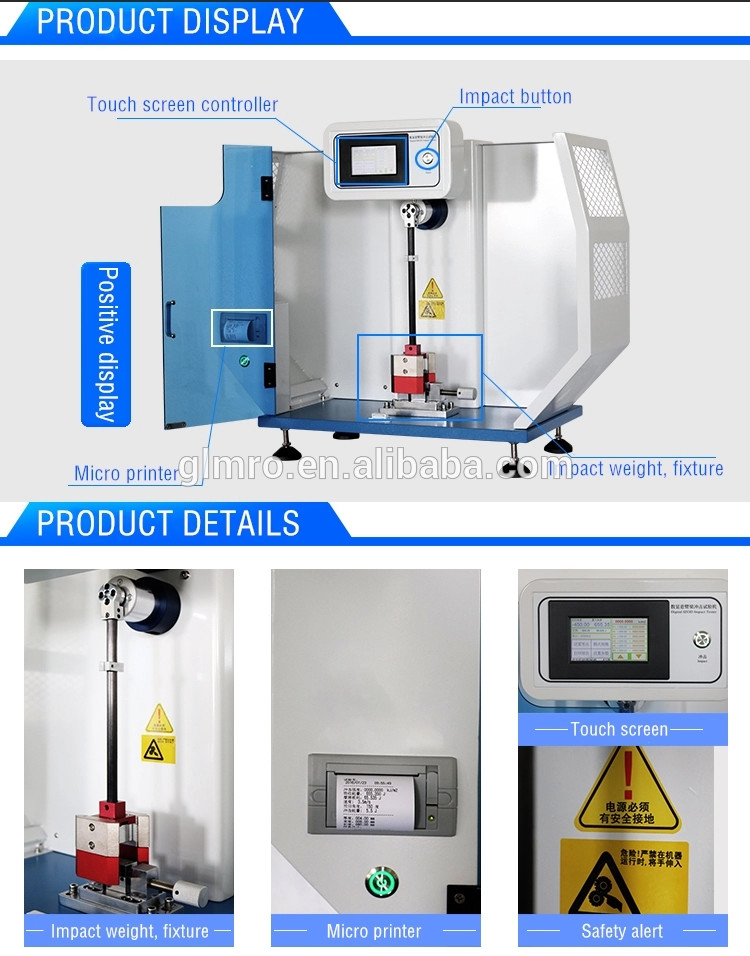

Izod Pendulum Impact Test Machine For Plastic Charpy 0

Izod Pendulum Impact Test Machine For Plastic Charpy 1

Izod Pendulum Impact Test Machine For Plastic Charpy 2

Izod Pendulum Impact Test Machine For Plastic Charpy 3

Izod Pendulum Impact Test Machine For Plastic Charpy 4Izod Pendulum Impact Test Machine For Plastic Charpy 5Izod Pendulum Impact Test Machine For Plastic Charpy 6Izod Pendulum Impact Test Machine For Plastic Charpy 7Izod Pendulum Impact Test Machine For Plastic Charpy 8Izod Pendulum Impact Test Machine For Plastic Charpy 9Izod Pendulum Impact Test Machine For Plastic Charpy 10



Packaging & Shipping

1. Aluminium box and carton box, careful and tight package, make sure the package is intact

2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the orderIzod Pendulum Impact Test Machine For Plastic Charpy 11




Our Services

If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.

1. Pre-service

24 Hours online service for customers' consultation.

2. Middle service

--Fullfill customer's request:

--Payment method depends on customer.

--Promptly production and delivery

--Can provide invoice value if you want to decrease your tax.

3. After sale service

--One year warranty service and all life maintenance.

--Technical Egineer are avalible for oversea trainning.

--Remote control technical consult




Company Information

Shanghai Glomro Industrial Co., Ltd was founded in 2012. Specializing in the production of testing equipment and industrial measurements and instruments products. Products of high quality, fashionable, widely used in a variety of industrial areas, not only has the broad masses of the domestic sales market, but also exported to Europe and the United States.
Glomro hinge over the years has always adhered to "quality of products in order to survive, credibility and development services" business purposes. Committed to providing you with high-quality products and quality services. Have a professional, dedicated design management team, from product design, mold making, molding to the Product assembly, for each aspect and processes are rigorously testing and control.

Over the past few years of production and management and exploration, Longtai set up its own quality management system. Industry standards including SAE,IEC JEDEC,ASTM and MIL-STD,ISO:9001,UL,CE certified. Glomro always implement the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions to technical problems,further exploration innovation,and excellence.

Warmly welcome you and opening up the boundaries of communication. We synchronize with your ideal partner!

Izod Pendulum Impact Test Machine For Plastic Charpy 12

Izod Pendulum Impact Test Machine For Plastic Charpy 13Izod Pendulum Impact Test Machine For Plastic Charpy 14

Izod Pendulum Impact Test Machine For Plastic Charpy 15

Izod Pendulum Impact Test Machine For Plastic Charpy 16






Q:Are your company a trading one or a factory?

A:Factory + trade (integration),More than 10 years focusing on test instruments field,6 years exporting experience.

Q:After an order is placed, when to deliver?

A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?

A:The testing machine is guaranteed for 12 months by Shanghai Glomro Building Industrial Co.Ltd ,One year promise including free maintenance and changing Instrument components.Besides, Full-life cycle technical support is provided.

Q:What about the product' services and quality?

A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you n
