Carbon Black Dispersion Detector Plastic Tube Polyolefin Pipes Dispersity Tester

Basic Information
Place of Origin: China
Brand Name: BAXIT
Certification: CE
Model Number: BXT-1593
Minimum Order Quantity: 1SET
Packaging Details: 1200*200*220mm
Delivery Time: 5-8work days
Payment Terms: L/C, T/T
Supply Ability: 100+sets+5days
Detail Information
Condition: New Warranty: 1 YEAR
Power: Electronic Color: White
Image Size: 640*480, 1024*768, 2048*1536, 2592*1944; Detection Range: 0.5um - 1cm
Optical Magnification: 100 Times Power Supply: 220V /2A/50Hz
High Light:

Carbon Black Dispersion Detector

,

Polyolefin Pipes Dispersity Tester

,

Carbon Black Dispersion Tester


Product Description

Carbon Black Dispersion Detector/plastic tube polyolefin pipes carbon black dispersity tester

QUICK DETAILS



The carbon black dispersion detector is an instrument for detecting the dispersion of pigments or carbon black in polyolefin pipes, pipe fittings and compounding materials. Through the measurement of the scale, shape and dispersion of carbon black particles, the intrinsic relationship between these parameters and macroscopic performance indexes such as mechanical properties, antistatic properties and moisture absorption properties can be established. This will have a positive impact on the quality assurance of plastic materials, production processes, new product development, and promote the rapid improvement of the technical level of enterprises and industries.



TESTING STANDARD

GB/T 18251-2000:Method for the assessment of pigment or carbon black dispersion in polyolefin pipes,fittings and compounds

ISO/DIS 18553:1999:Method for the assessment of pigment or carbon black dispersion in polyolefin pipes,fittings and compound

GB/T 2951.41-2008:Common test methods for insulating and sheathing materials of electric and optical cables—Part 41(ISO 18553:2002,IEC 60811-4-1:2004)

GB/T 15558.1-2015:Buried polyethylene(PE)piping systems for the supply of gaseous fuels—Part 1:Pipes(ISO 4437-1:2014;ISO 4437-2:2014)

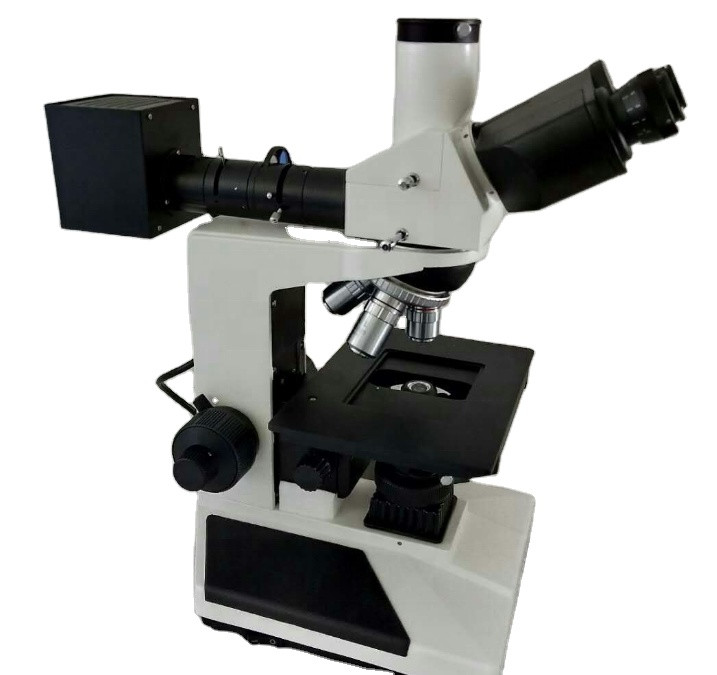

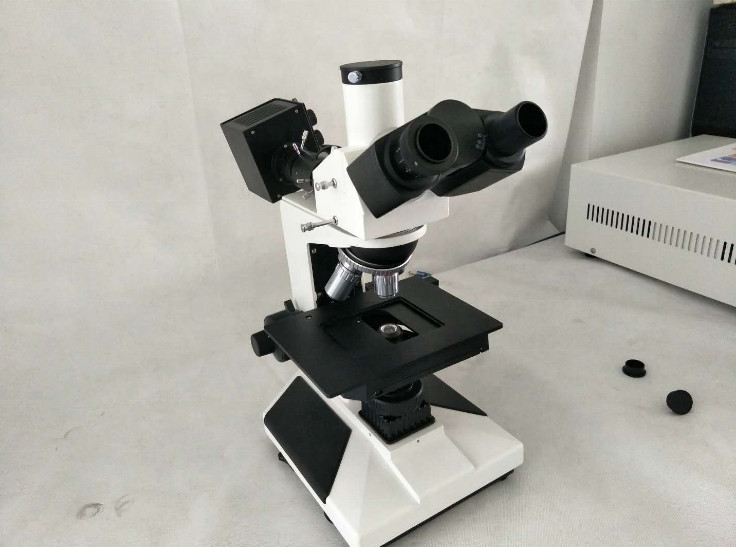

Carbon Black Dispersion Detector Plastic Tube Polyolefin Pipes Dispersity Tester 0Carbon Black Dispersion Detector Plastic Tube Polyolefin Pipes Dispersity Tester 1




FEATURES



1. Using the professional image analysis method, the dispersity grade of carbon black is determined by computer, and the detection accuracy is high.

2. The particle size of target carbon black can be analyzed from micrometer to millimeter scale

3. equipped with professional microscope, equipped with 5 million CMOS image transmitter

4. you can save a single image, the size of the image by 640*4801024*7681280*10242592*1944 four sizes to choose from

5. rich image processing function, to meet the needs of a variety of image processing

6. the software has two ways of automatic and manual black carbon image segmentation
7. the software can meet the requirements of local analysis
8. equipped with micrometer scale, pixel size calibration can be carried out, and the software has the function of moving ruler, can be measured at any distance between two points
9. customers can build their own standard library
10.the output results cover the number of carbon black particles, particle size, area, etc., and can be output in the form of data statements and excel
11. Provide grayscale distribution map, particle size distribution map, particle size distribution map
12. the report results include: sample name, standard name, original image, gray scale map, etc.. The report output format is diverse, you can choose picture format or PDF format for preservation.
13. software test various mainstream operating system, and win7/win10/winXP and other good compatibility.
14. using USB2.0 data interface, can be adapted to a variety of acquisition devices (such as: camera or digital camera)



TECHNICAL PARAMETERS



Model FS-3600
detection range 0.5um - 1cm
imaging resolution 2592*1944 (5 million pixel CCD digital camera)
optical magnification 100 times
The irradiation angle of the light source 30 degrees
power supply 220V /2A/50Hz
image size 640*480,1024*768,2048*1536,2592*1944



Carbon Black Dispersion Detector Plastic Tube Polyolefin Pipes Dispersity Tester 2Carbon Black Dispersion Detector Plastic Tube Polyolefin Pipes Dispersity Tester 3
