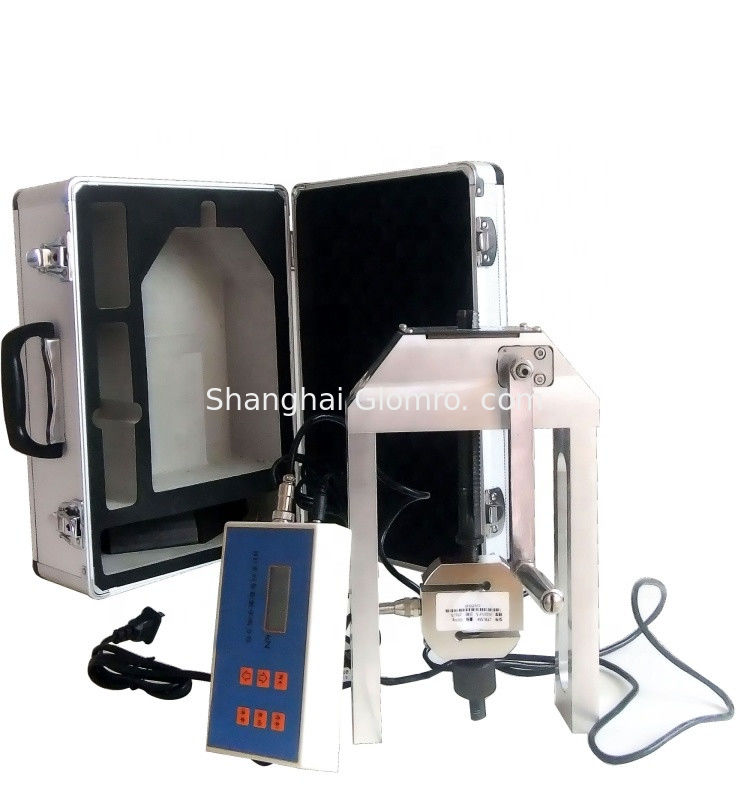

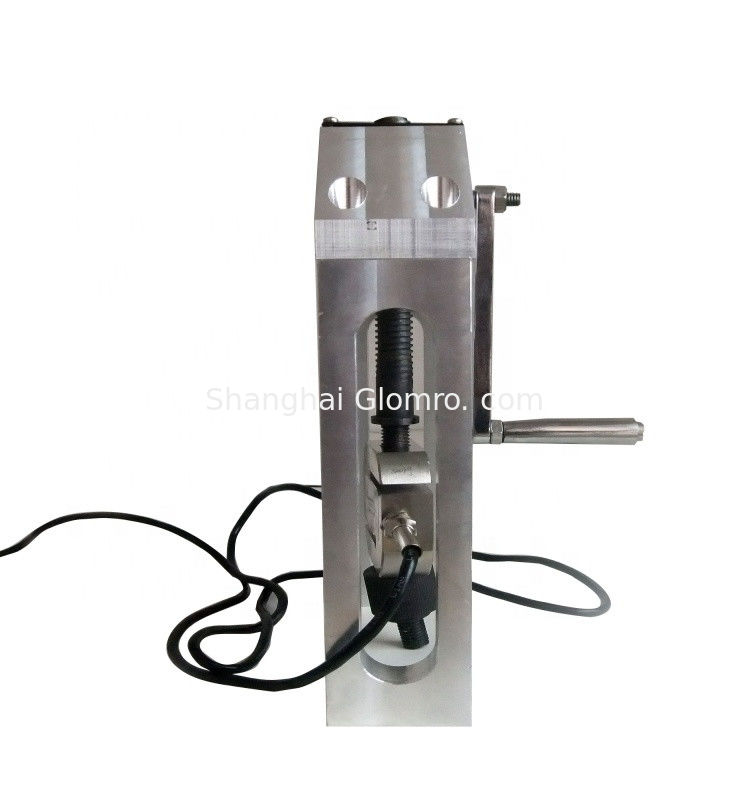

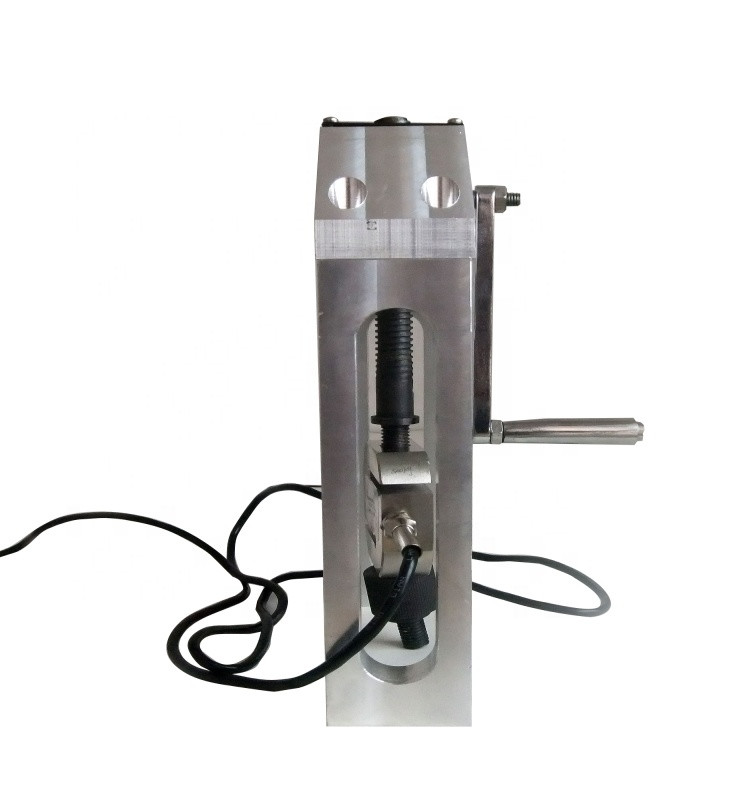

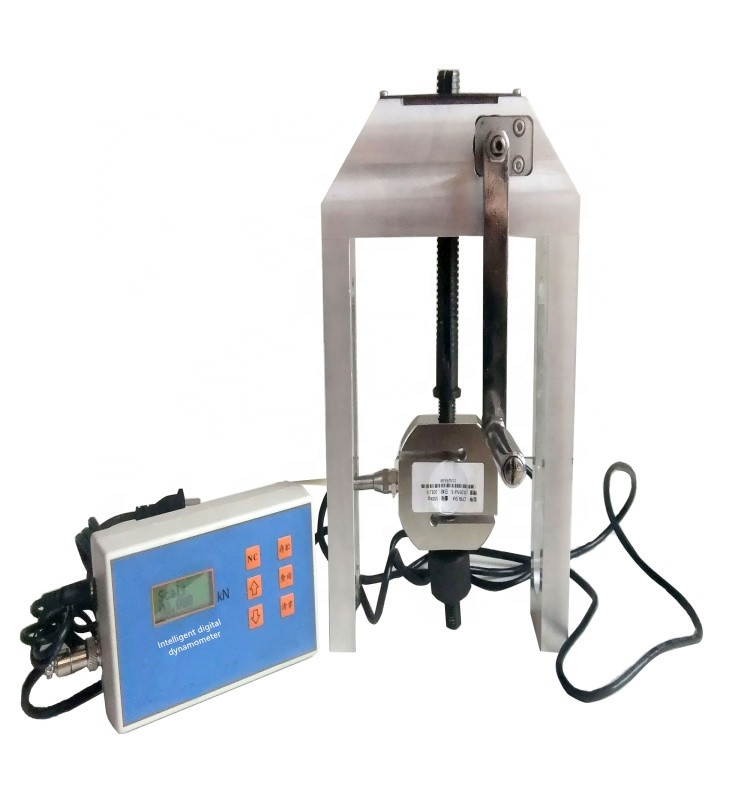

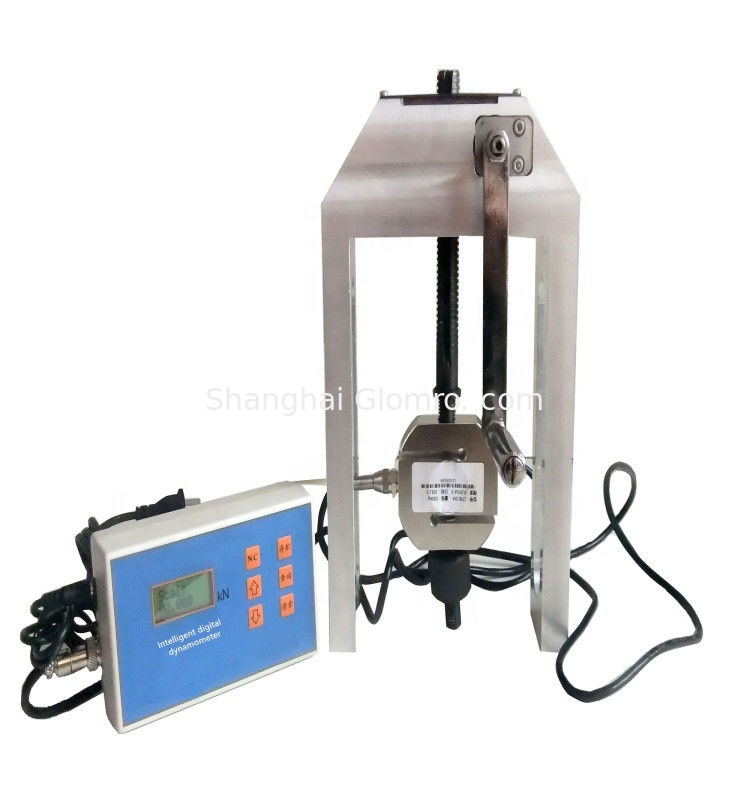

Multifunctional bond strength tester
The scope of use
Adhesive strength testing for facing bricks, tiles, insulation boards, paints, paints, rivets, anchor bolts, mortars, etc.
Firstly, according to the characteristics of low adhesive strength and small adhesive force of the facing tiles, the maximum tensile force of the HD series multi-functional adhesive strength tester is designed to be 10KN to ensure the detection accuracy of the instrument. In the design, the stroke of the equipment is extended within the allowable range, taking into consideration the rivet pull test. HD series multi-functional bond strength tester can be continuously and uniformly loaded, compact structure, durable, using liquid crystal display adhesive force value, automatically and accurately record the bond strength value and give the peak to maintain, the product dry battery power supply, compact and lightweight, The total weight of about 3 kg, easy to carry and use on the spot.
The device can be customized
||0 ~ 10KN (can be customized according to customer needs)
||100mm (Drawing test for rivets available)
||≤±1% (better than 1.5% for other testing machines)
||positive peak hold
||50 data can be stored
||Rechargeable Battery Section 1
||Temperature 0 ~ 45 °C Humidity <85%
||sample block 40*40 45*95 two specifications each
||100*100 three (optional)
|Rivet pull fixture
JGJ3056-1999 "Digital Display Bond Strength Tester"
JGJ110-2008 Inspection Standard for Adhesion Strength of Building Facing Tiles
JGJ126-2000 "Construction and Acceptance Regulations for Exterior Facing Tiles"
JGJ144-2009 Technical Specification for External Thermal Insulation Engineering
JG158-2004 "Powder Polystyrene Particles Exterior Insulation System"
JG149-2003 "Expanded polystyrene board thin plaster external wall insulation system"
GB14907-2002 "General technical conditions for fire-retardant coatings for steel structures"
Packaging & Shipping

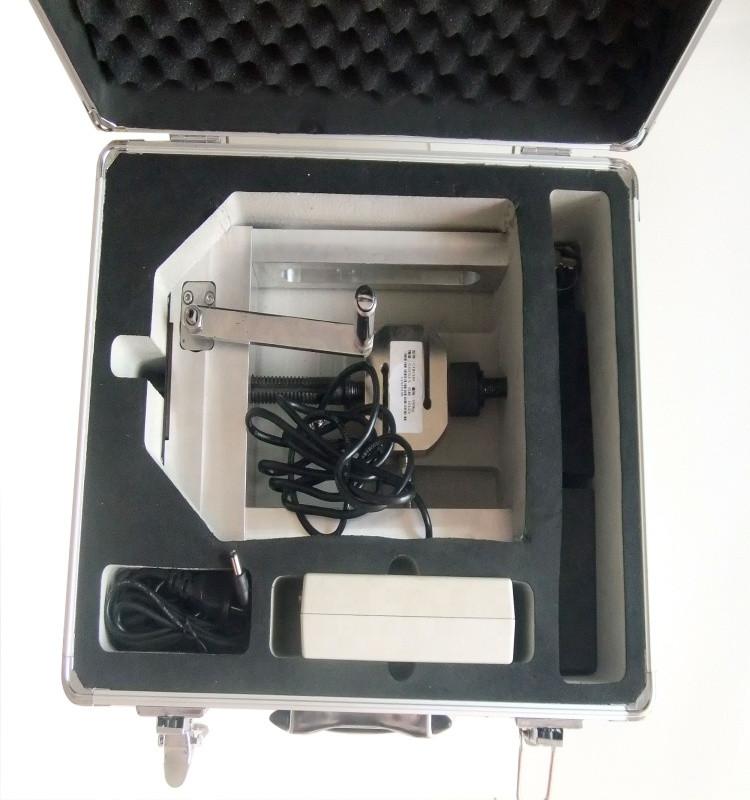

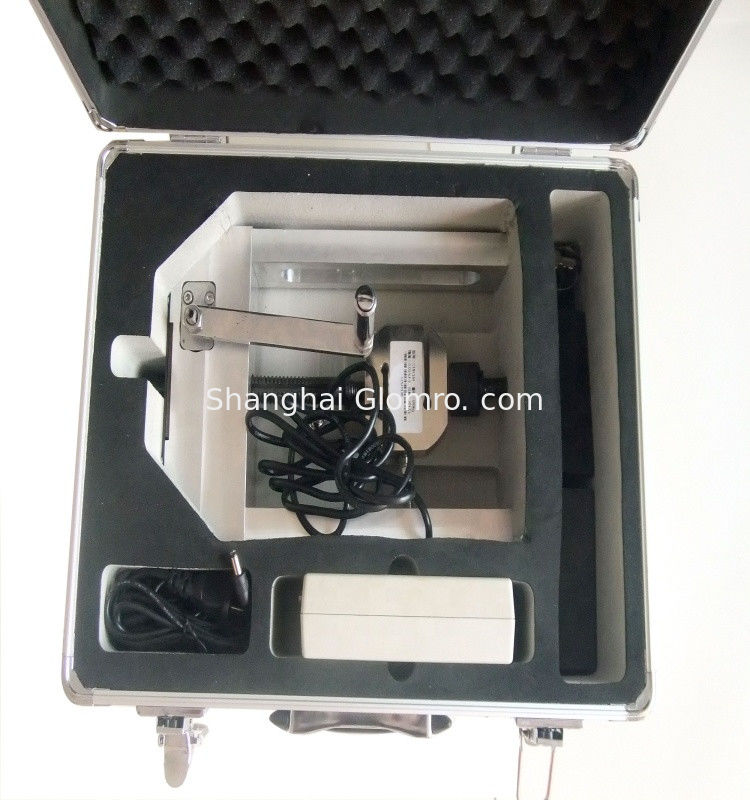

1. Aluminium box and carton box, careful and tight package, make sure the package is intact
2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.
If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.
24 Hours online service for customers' consultation.
2. Middle service
--Fullfill customer's request:
--Payment method depends on customer.
--Promptly production and delivery
--Can provide invoice value if you want to decrease your tax.
3. After sale service
--One year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Remote control technical consult
Shanghai Glomro Industrial Co., Ltd was founded in 2012. Specializing in the production of testing equipment and industrial measurements and instruments products. Products of high quality, fashionable, widely used in a variety of industrial areas, not only has the broad masses of the domestic sales market, but also exported to Europe and the United States.
Glomro hinge over the years has always adhered to "quality of products in order to survive, credibility and development services" business purposes. Committed to providing you with high-quality products and quality services. Have a professional, dedicated design management team, from product design, mold making, molding to the Product assembly, for each aspect and processes are rigorously testing and control.
Over the past few years of production and management and exploration, Longtai set up its own quality management system. Industry standards including SAE,IEC JEDEC,ASTM and MIL-STD,ISO:9001,UL,CE certified. Glomro always implement the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions to technical problems,further exploration innovation,and excellence.
Warmly welcome you and opening up the boundaries of communication. We synchronize with your ideal partner!
Q:Are your company a trading one or a factory?
A:Factory + trade (integration),More than 10 years focusing on test instruments field,6 years exporting experience.
Q:After an order is placed, when to deliver?
A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.
Q:What about the warranty with after - sales services?
A:The testing machine is guaranteed for 12 months by Shanghai Glomro Building Industrial Co.Ltd ,One year promise including free maintenance and changing Instrument components.Besides, Full-life cycle technical support is provided.
Q:What about the product' services and quality?
A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
