Water Evaporation: | 1000ml-2000ml/h | Minimum Feed: | 50ml |
---|---|---|---|
Average Drying Time: | 1.0-1.5s | Voltage: | 220V/50Hz |
Material: | 304 Stainless Steel | Inlet Treatment: | Fiber Cotton Filter |
Color: | Metallic/White | Dimensions: | 550(W)*650(D)*1300(H)mm |
Highlight: | mro goods,mro solutions |

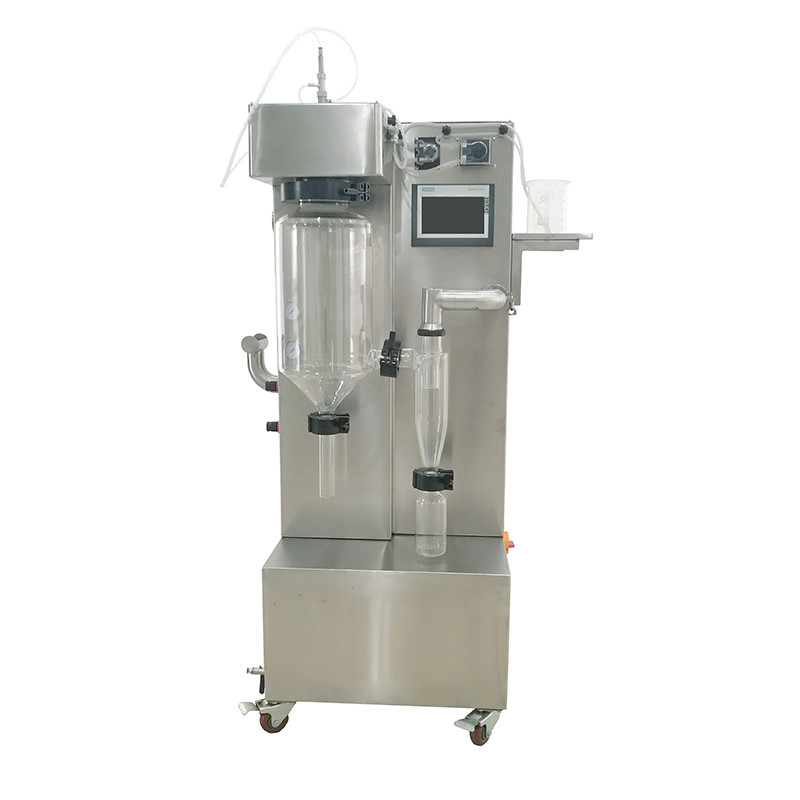

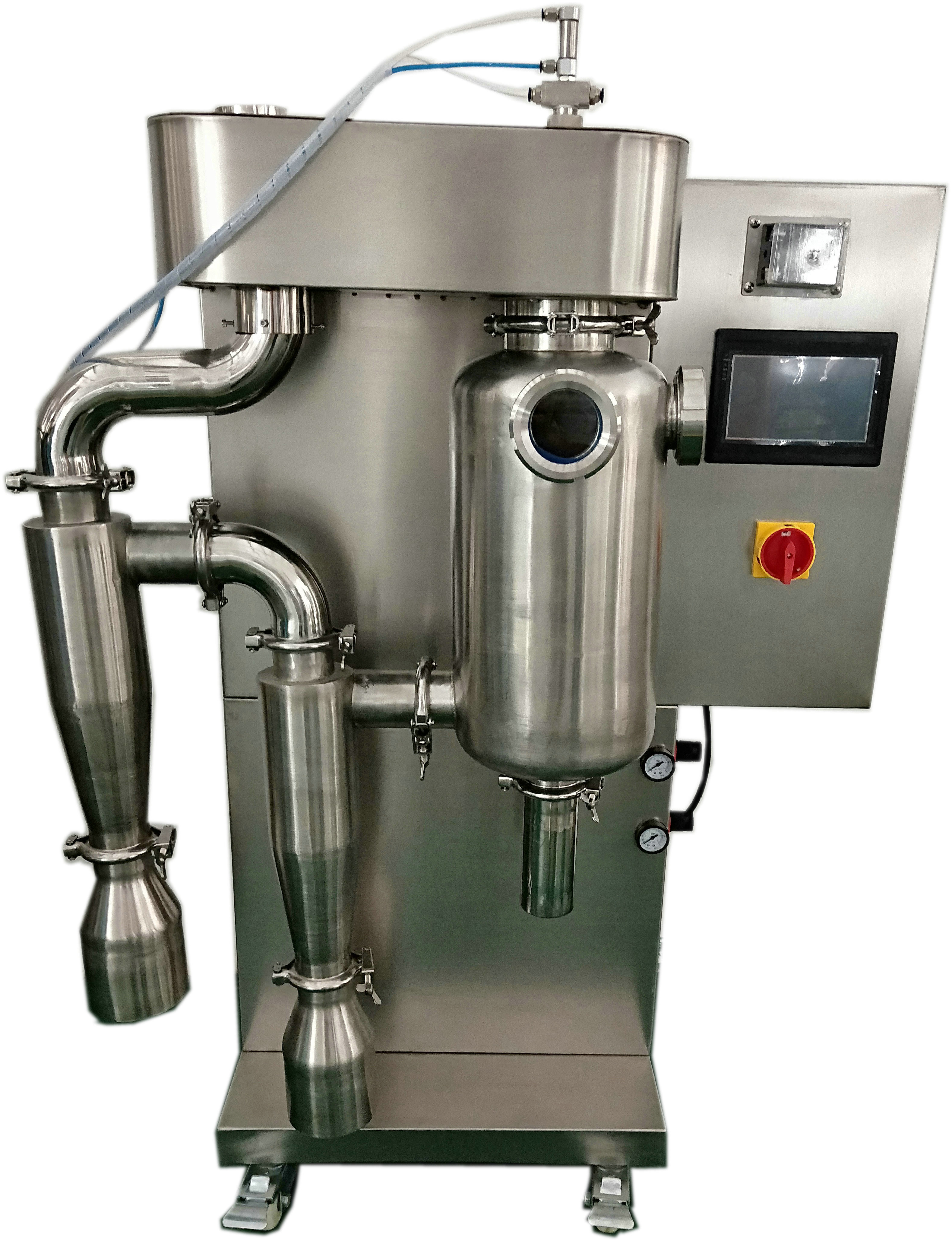

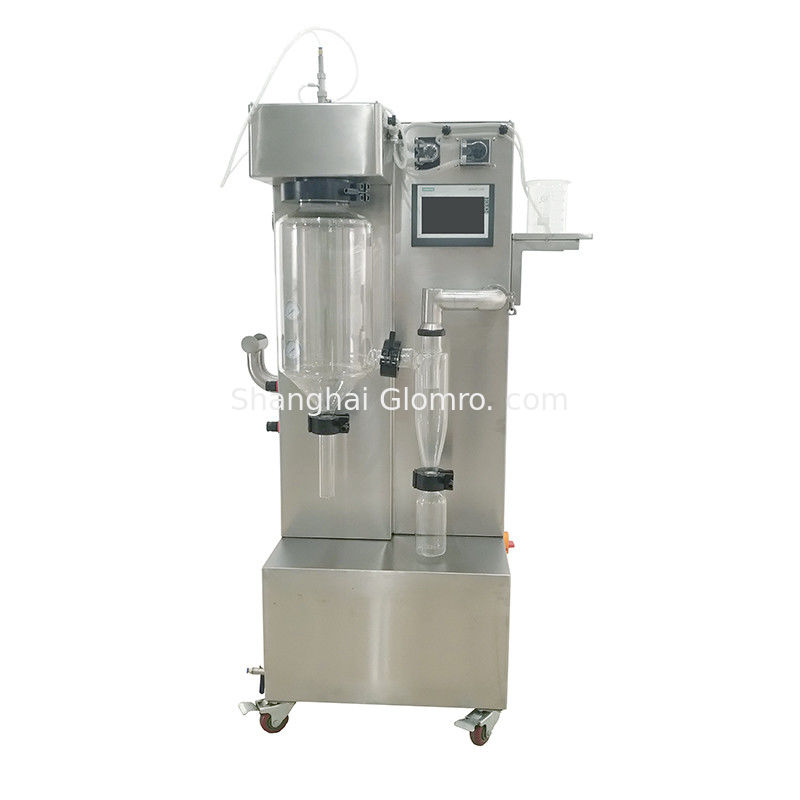

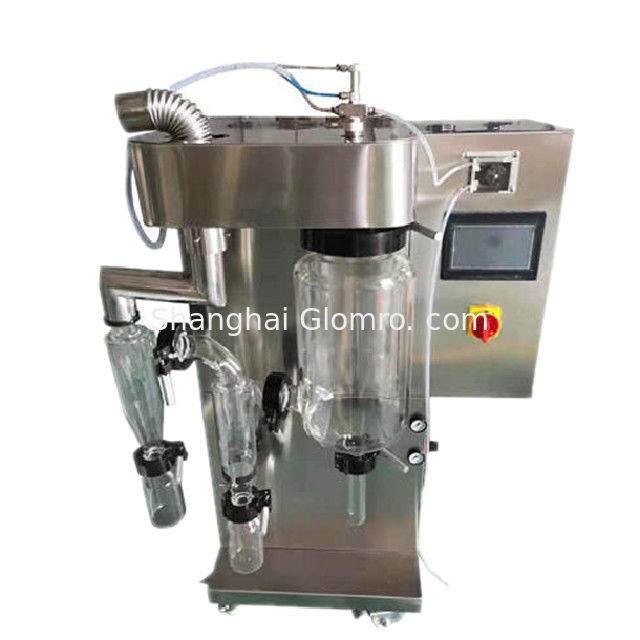

The experimental spray dryer (small spray dryer) has a compact design and can be placed independently
in a laboratory or placed on a specially designed stainless steel rack. It is self-contained and can be operated
without other facilities. One-button start-up, large color LCD touch screen operation, two operating modes, fully
automatic or manual monitoring, can be used to facilitate operation and monitoring of the experimental process.
It is currently a spray dryer with the smallest volume, the least noise and excellent drying effect.
1. Color LCD touch screen parameter display: air inlet temperature / air outlet temperature / peristaltic pump speed / air volume / needle frequency.
2. Nozzle cleaner (through needle): when the nozzle is blocked, it will be automatically cleared, and the frequency of the needle can be adjusted automatically.
3. Built-in imported oil-free air compressor,:the particle diameter of the powder spray is normally distributed, the fluidity is very good, the noise is very low, less than 60db.
4. Real-time control PID constant temperature control technology: make the temperature control in the full temperature zone accurate, and the heating temperature control accuracy is ±1℃.
5. Air inlet filter: keep the sample pure (for benzene, methanol, ethanol and other materials, it is safer to choose to add a nitrogen device).
It can make milk powder, egg yolk, soy sauce, coffee, starch, protein, hormone, serum, antibiotic, enzyme, flavor extract, wax, dye, detergent, surfactant, pesticide, preservative, synthetic resin, pigment, ferrite , Ceramics, copying powders, magnetic materials, metal powders, photosensitive materials, various industrial medicines,etc. sample waste, etc.
