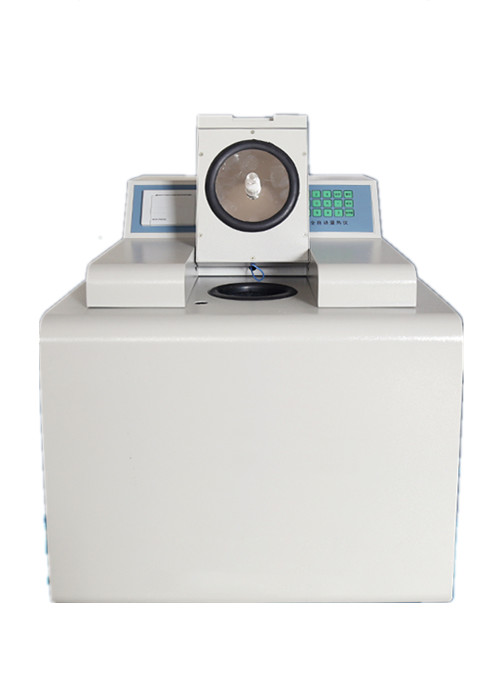

Automatic Lab Testing Instruments High Accuracy For Calorific Value Measuring

Basic Information
Place of Origin: CHINA
Brand Name: BAXIT
Model Number: ZDHW-9B
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 5-8 working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000UNIT /30DAYS
Detail Information
Usage: Measuring The Calorific Power Of Material Power Supply: 220V 50Hz
Function: Measuring The Calorific Power Of Material Warranty: 1 Year
Name: Laboratory Instrument Oxygen Bomb Calorimeter Lab Testing Equipment Type: Automatic Lab Testing Equipment Oxygen Bomb Calorimeter(TP-1B)
High Light:

calorific value measurement instrument

,

laboratory testing equipment


Product Description

Automatic Lab Oxygen Bomb Calorimeter





Product advantages:

1. The environment adaptability is strong and the test results are accurate and stable.

2. The experimental data full curve tracking function, can easily view the temperature and time in the curve.

3. With instructions for operation, failure, etc., the experiment ends with automatic voice report results.

4. The window display uses a 7.0-inch color LCD touch screen, the display content is intuitive and easy to understand.

5. Simple and convenient, the control core uses ARM9 microprocessor, fast, real-time.

6. Reliability fault self-tuning function, the device has a variety of protection functions.

7. Using internal and external tube photoelectric isolation, strong anti-interference ability.

8. Internal loading has standards, instructions and common troubleshooting methods.



Working principle:

Using advanced single-chip system, the operation is fully automated. All the labor needs to do is to weigh, load and oxygenate. The instrument automatically completes the quantitative water injection, automatic mixing, ignition, output printing results, drainage, etc.

In the calorimetric system of the calorimeter, in addition to the heat absorbed by the water, the oxygen bomb, the inner cylinder, the thermometer and the agitator absorb heat, and the respective heat absorption conditions are different. Various factors are complicated, and it is impossible to rely on simple Mathematical calculations can only use the reference of known calorific value, such as benzoic acid, to actually calibrate the heat absorbed by the calorimeter system for every 1 °C increase, that is, to calibrate the calorimeter's heat capacity.



Features:

Ultra-large capacity water tank for large batch continuous 24 hour experiment

1. The user only needs to install the oxygen bomb when the user operates, and the remaining electronic balance is used to read the sample weight, oxygen, oxygen bomb, oxygen bomb, quantitative inner cylinder water, ignition, completion test, oxygen bomb deflation, experiment Results statistics and other processes can be fully automated.

2. Automatically adjust the temperature difference between the inner and outer cylinders to ensure that the inner cylinder is about 1K higher than the outer cylinder temperature at the end point, which fully meets the requirements of the national standard 8.2.4, and the test results are stable for a long time.

3. It can carry out experiments for more than 72 hours, which solves the technical problem that the calorimeter without cooling device needs to suspend the experiment due to the increase of the outer cylinder water temperature (overshoot).

4. Imported mechanical parts, automatic oxygenation, automatic deflation, automatic lifting oxygen bombs and other sports.

5. The compressor cooling and special heating device are adopted to realize the automatic control of the water temperature of the outer cylinder, and the temperature control accuracy meets the requirements of the national standard 7.1.4 (±0.1K).



Technical Parameters:

Temperature resolution 0.0001K
Precision ≦0.05%
Conformance with Standard ASTM D5865, ASTM D240, ASTM D4809, ASTM E711, ASTM D5468, AS 1038.5,BS EN 15400, BIS1350,ISO 1928, ISO 9831,ISO18125,GB/T 213,GB/T 30727
Energy Measurement Range 0~50000J
External water tank capacity about 40L
Inner water tank capacity about 2.1L
Temperature range 5-40 ° C
Power ≦100W
Dimensions(cm) 70*73*63
Machine weight 70KG
Power supply voltage AC220V 50Hz
Single calorie measurement time about 15 minutes

 Automatic Lab Testing Instruments High Accuracy For Calorific Value Measuring 0Automatic Lab Testing Instruments High Accuracy For Calorific Value Measuring 1
