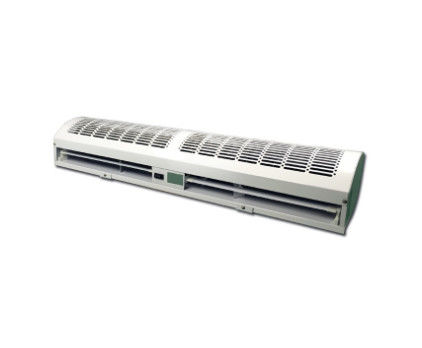

Dustproof Commercial Air Curtain For Shopping Mall / Restaurant /Supermarket

Basic Information
Place of Origin: CHINA
Brand Name: BXT
Certification: CE
Model Number: GLOMRO
Minimum Order Quantity: 1SET
Price: negotiable
Packaging Details: Wooden Package
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Month
Detail Information
Application: Shopping Malls, Restaurants, Supermarkets, Airports, Warehou Function: Dustproof, Heat Insulation, Anti-mosquito, Preservation, Block
Power Supply: AC 220V 50Hz Machine Size: 60*19*16cm
Wind Speed: 12.0m/s Input Power: 100W
High Light:

mro products

,

mro solutions


Product Description

Industrial products supermarket open air curtain door air curtain





Application:

The air curtain machine is installed in the refrigerating, air-conditioning, dust-proof and heat-insulating shopping malls, theaters, hotels, restaurants, conference halls, refrigerators, operating rooms and homes. The machine is started to separate the indoor and outdoor air. It is easy to enter and exit, and can prevent indoor and outdoor hot and cold air exchange. At the same time, it has the functions of dustproof, anti-pollution and anti-mosquito.

Widely used in shopping malls, restaurants, supermarkets, airports, warehouses, electronic instruments, textiles, pharmaceuticals, food plants, hospitals and other industries and places.



Features:

1. Full metal casing, high fire resistance, compact overall structure, easy installation, easy cleaning and simple maintenance

2, this air curtain machine can choose piano-type control, remote control, high and low speed, suitable for different occasions

3, unique air deflector design, wind direction can be adjusted at will, and applicable to various environments

4, the use of centrifugal front curved blade wheel structure, with efficient volute design, to achieve the best performance of the fan

5, computer optimization design motor, reliable performance, continuous operation for more than 5000 hours without failure

6, applicable height: there are 3M, 4M, 5M installation height

7, optional length specifications: 900mm / 1200mm / 1500mm / 1800mm



Function:

1. Insulation: Air curtains eliminate the need to constantly open and close doors in areas where customers such as restaurants, shops and entertainment venues frequently enter and exit. This can ensure the indoor cold and warm air temperature with an efficiency of 60-80%, and only allows slight temperature changes.

2. Dust-proof function: If the air curtain machine is installed in the entrance hall of the food factory or clothing store of the precision machinery factory or the cotton bus lane, the dust outside can be effectively shielded and kept clean at 60~80%. .

3. Insect-proof function: It can be found that annoying and harmful insects cannot pass through the wind curtain wall. This will make it easier and more convenient to maintain the health of the fruit counter, the fast food room, and the meat sales point.

4. Preservation function: Prevents strange smells from machinery such as vegetable storage rooms and frozen meat in chemical laboratories or stores. And can organize harmful gases emitted by cars outside.

5. Blocking ability: The blocking ability of the air curtain is determined by the wind speed of the air supply center. The powerful function of the Panasonic air curtain machine keeps them at a high wind speed level within the effective distance of the air curtain to keep Higher blocking ability.



model volage(V) frequency(Hz) input power(W) wind speed(m/s) air volume(m3/h) weight(kg) machine size(cm) noise(dB)
FM-1206 220 50 80 12 900 5.0 60*19*16 50
FM-1209 220 50 100 12 1000 6.8 90*19*16 54
FM-1210 220 50 120 12 1200 7.2 100*19*16 54
FM-1212 220 50 135 12 1400 8.0 120*19*16 54
FM-1215 220 50 180 12 1700 10 150*19*16 56
FM-1218 220 50 200 12 2000 12 180*19*16 57
FM-1218 S 220 50 500 12 2200 13 200*19*16 59
FM-1220 S 220 50 560 12 2400 15 200*19*16 59



Dustproof Commercial Air Curtain For Shopping Mall / Restaurant /Supermarket 0



Packaging & Shipping

1. Aluminium box and carton box, careful and tight package, make sure the package is intact

2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.
