Walk - In Environmental Testing Machine , Constant Temperature Humidity Chamber

Basic Information
Place of Origin: CHINA
Brand Name: BXT
Certification: CE ISO
Model Number: GLO-39
Minimum Order Quantity: 1SET
Price: negotiable
Packaging Details: wooden or carton packaging
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Month
Detail Information
Power: Electronic Product Name: Walk-in Constant Temperature Humidity Environmental Tester
Power Supply: 220V 50Hz Inner Dimension: 200*150*150
Humidity Range: 10%~98%R.H Temperature Range: -40℃~100℃
High Light:

climatic test chamber

,

environmental test equipment


Product Description

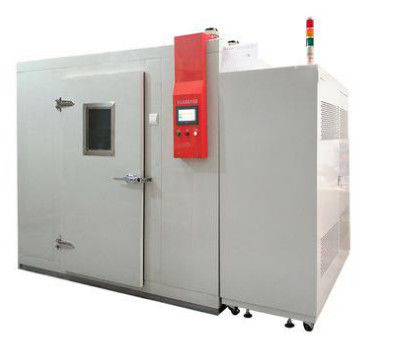

Walk-in Constant Temperature Humidity Environmental Tester




Product Description


Equipment Overview

Walk-in constant temperature and humidity laboratory for aerospace products, electronic information instruments, materials, electrical, electronic products, a variety of electronic vitality in high and low temperature or hot and humid environment, test its performance indicators.





Technical Parameter

Model GLO-HS89 GLO-HS90 GLO-SH91 GLO-SH92
Inner dimension 200*150*150 200*200*150 200*200*200 250*200*200
temperature range Low temperature (25°C, 0°C, -20°C, -40°C); High temperature 100°C
hunidity range 20%~98%RH.(10%~98%R.H)
Temperature and humidity resolution 0.1°C; 0.1% R.H
Temperature and humidity distribution accuracy ±2.0°C; ±3.0%R.H
Temperature and humidity control accuracy ±0.5°C;±2.5%R.H
Insulation Material High temperature high density ethyl acetate foam insulation material
Security system No fuse switch, compressor overload protection,Hyper high and low voltage protection, ultra-humidity ultra-temperature protection, fuse fault warning system, water alarm protection





Main Features

1. Walk-in constant temperature and humidity chamber shell using high-quality stainless steel (SUS # 304) CNC machining.
2. Liner imported stainless steel (SUS304) mirror panel.
3. Insulation material: high-density glass fiber cotton insulation thickness of 100mm
4. Temperature and humidity cycle system: a special air-conditioning low noise long axis fan motor, stainless steel multi-wing high and low temperature impeller to reach the intensity convection vertical diffusion cycle
5. Between the door and the box using double high temperature resistant high tensile seal to ensure that the test area closed
6. The use of non-reaction door handle, the operation easier
7. Walk-in constant temperature and humidity chamber at the bottom of the high-quality fixed PU movable wheel.
8. The observation window using multi-layer hollow glass, the inner side of the conductive adhesive film defrosting (clearly observe the test process)
9. Test hole (left side of the machine) can be external test power line or signal



Our Services



If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.



1. Pre-service

24 Hours online service for your consult.

Help choose right model,and a series of service,person,advise.



2. Middle service

-- Give you best offer

-- Provide discount for many sets order

-- Do customer's request:

-- Choose payment term you convienent.

-- Promptly production and delivery,inform you in time.

-- Can provide invoice value as you like to decrease your tax.



3. After sale service

-- 1 year warranty service and all life maintenance.

-- Technical Egineer are avalible for oversea trainning.

-- Free change for some parts

-- Remote control technical consult

-- Free installation DVD

-- Maintenance plan



4. Commitment

We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.



5. Good Packaging

Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
