Accurate Calorific Value Measurement Instrument , Automatic Lab Testing Equipment

Basic Information
Place of Origin: CHINA
Brand Name: BAXIT
Certification: CE
Model Number: ZDHW-9B
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 5-8 working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000UNIT /30DAYS
Detail Information
Oxygen Bomb Working Pressure (oxygen Charging): 2.8-3.0mpa Ignition Voltage: AC24V
Pressure Test (water Pressure): 20.0Mpa Ignition Mode: Fusible Cotton Wire Ignition
Power Supply: AC220V±5%, 50Hz Temperature Resolution: 0.001K
High Light:

calorific value measurement instrument


laboratory testing equipment

Product Description

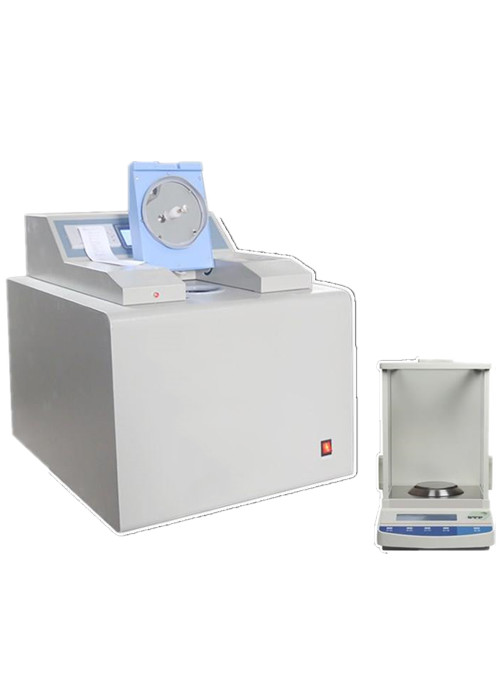

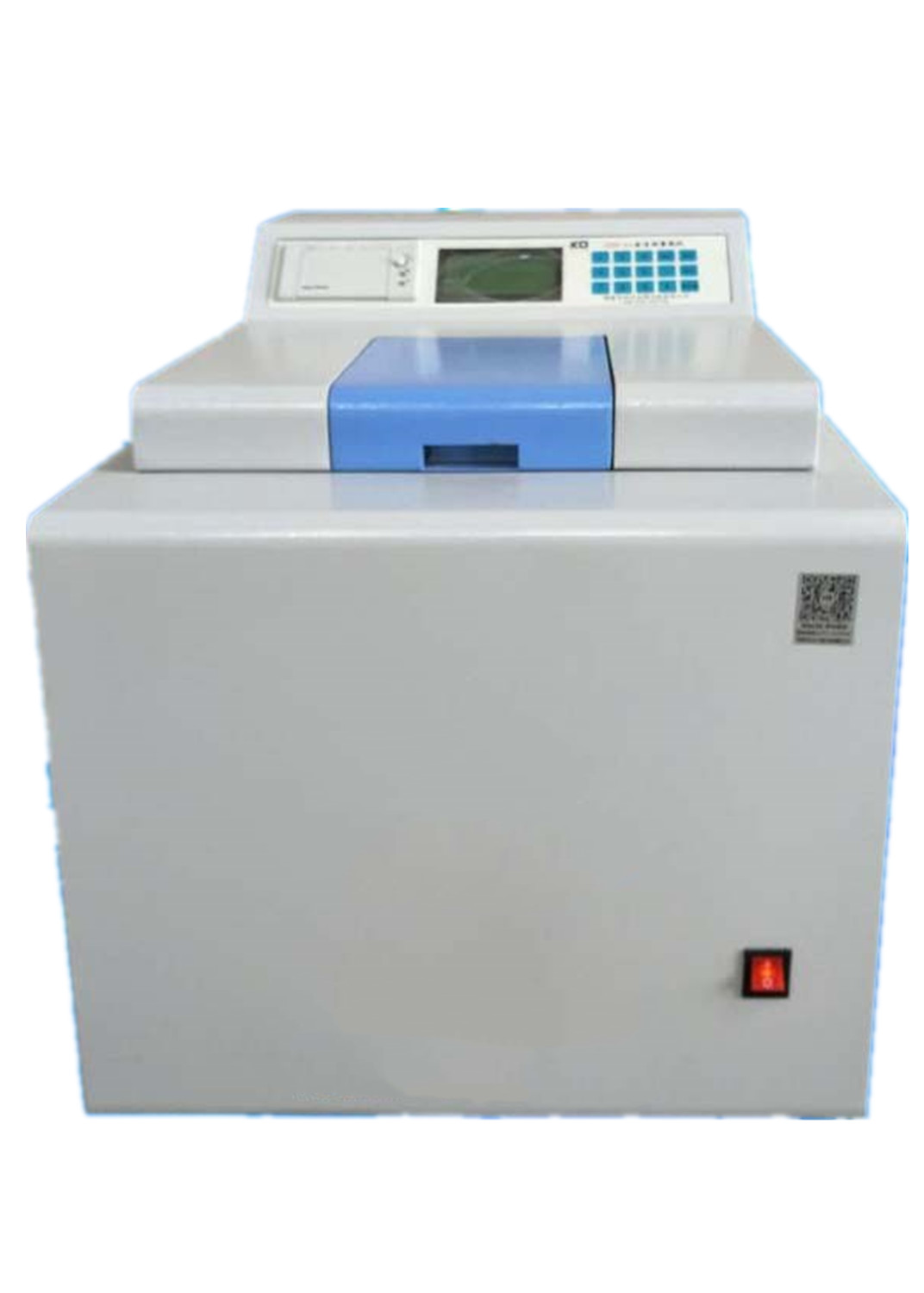

Laboratory Instrument Oxygen Bomb Calorimeter Lab Testing Equipment



Product advantages:

1. The embedded system is composed of intelligent MCU with simple structure.

2. The time temperature curve is drawn in the experimental process.

3. Reliable performance and strong anti-interference ability.

4. The operation is fully automatic.

5. Imported high-precision components are used to realize high-precision temperature measurement.

6. Single pump displacement type water injection and drainage can eliminate the problem.

7. With the complete and unique water injection and drainage system and calorimetric system, the thermal capacity of the system can be automatically calibrated.

8. The measurement accuracy can be greatly improved by the well-designed calculation program.


Working principle:

Using advanced single-chip system, the operation is fully automated. All the labor needs to do is to weigh, load and oxygenate. The instrument automatically completes the quantitative water injection, automatic mixing, ignition, output printing results, drainage, etc.

In the calorimetric system of the calorimeter, in addition to the heat absorbed by the water, the oxygen bomb, the inner cylinder, the thermometer and the agitator absorb heat, and the respective heat absorption conditions are different. Various factors are complicated, and it is impossible to rely on simple Mathematical calculations can only use the reference of known calorific value, such as benzoic acid, to actually calibrate the heat absorbed by the calorimeter system for every 1 °C increase, that is, to calibrate the calorimeter's heat capacity.


Service conditions:

1. The test room shall be set in a separate room, and other test items shall not be carried out in the same room at the same time. It is better to face the north of the laboratory to avoid sunlight, otherwise the instrument should be placed in a place away from direct sunlight.

2. The room temperature should be kept relatively stable.

3. There should be no strong air convection in the room, so there should be no strong heat source, cold source, fan, etc. during the test, doors and windows should not be opened. If air conditioning has been installed in the laboratory, it is necessary to avoid direct air conditioning to the instrument.


Technical Parameters:

Temperature resolution 0.0001K
Precision ≦0.05%
Conformance with Standard ASTM D5865, ASTM D240, ASTM D4809, ASTM E711, ASTM D5468, AS 1038.5,BS EN 15400, BIS1350,ISO 1928, ISO 9831,ISO18125,GB/T 213,GB/T 30727
Energy Measurement Range 0~50000J
External water tank capacity about 40L
Inner water tank capacity about 2.1L
Temperature range 5-40 ° C
Power ≦100W
Dimensions(cm) 70*73*63
Machine weight 70KG
Power supply voltage AC220V 50Hz
Single calorie measurement time about 15 minutes

Accurate Calorific Value Measurement Instrument , Automatic Lab Testing Equipment 0Accurate Calorific Value Measurement Instrument , Automatic Lab Testing Equipment 1Accurate Calorific Value Measurement Instrument , Automatic Lab Testing Equipment 2Accurate Calorific Value Measurement Instrument , Automatic Lab Testing Equipment 3
