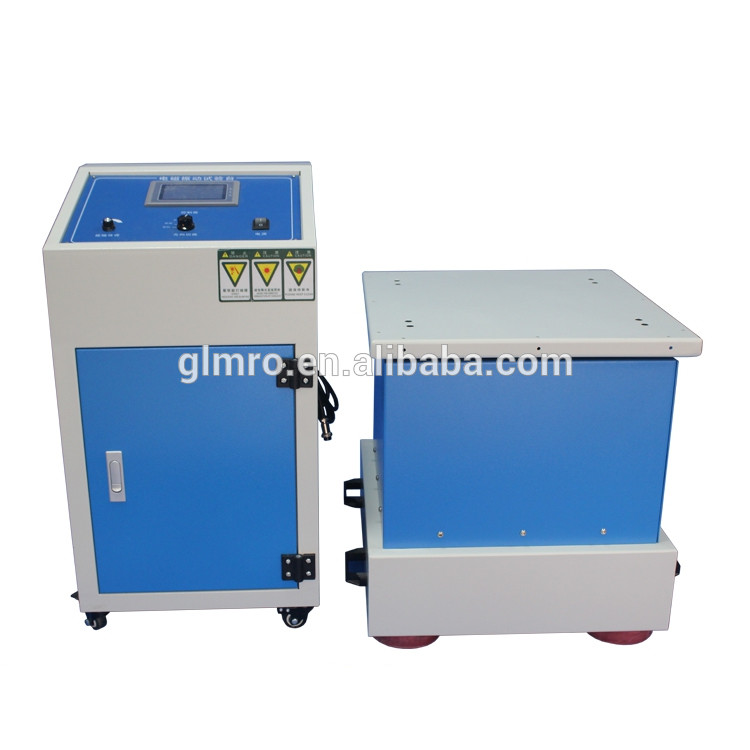

Vibration Table Testing Equipment

Basic Information
Place of Origin: Shanghai, China(mainland)
Brand Name: BAXIT
Model Number: GLO-M59
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 5-8 days
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 10Set per day
Detail Information
Power: Electronic Usage: Vibration Testing Machine
Color: Silver Warranty: 1 Year
Certificate: CE ISO Power Supply: 220V 50Hz
Testing Table Size: 500mm*500mm(can Customized) Maximum Load: 100kg
Frequency Range: 1Hz~600Hz Amplitude: 0~5mm
High Light:

vibration measuring equipment

,

vibration testing equipment


Product Description

FUNCTIONS



1, table size (mm): 500×1000 other sizes can be customized

2. Amplitude: 0~5mm

3, the maximum load: 100kg

4, frequency: 1Hz~600Hz

5, the maximum acceleration: 0 ~ 20g (1g = 9.8m/S2)

6, vibration waveform: sine wave (half-wave, full-wave)

7. Sweep function (1~600Hz): (up frequency/down frequency/time range) can be set arbitrarily to standard sweep back and forth.

8. Programmable function (1~600Hz): 1~15 segments. The time and frequency of each segment can be arbitrarily set to achieve the cycle detection function.

9, vibration direction: 1 vertical (Z axis), 2 horizontal (X, Y axis), 3 vertical + horizontal (Y, X, Z axis)

10, precision: frequency can be displayed to 0.01Hz

11. Shaking table power: 4.5kw

12, power supply voltage: 380V 50Hz

13, the maximum current: 10A

16, time control: any time can be set (seconds)

17, to achieve the function: sine wave, FM, frequency sweep, programmable, maximum acceleration, amplitude modulation, time control.

18, measuring instrument (optional): if you need to read the amplitude, acceleration



ADVANTAGES



1. Using 7 inch touch screen instrument and self-designed PLC module control


2. U disk can export data, install related software can be connected to the computer control


3. Has a single point, segment, multi-segment time setting function


4. The control parameters are displayed synchronously in real time. No manual intervention


5. Accurately achieve controllable results. And can display the control curve


6. The background communication protocol can be opened according to customer requirements, and the customer can program it on the computer (the conventional one-way vibration table does not have this function)


7. Golden ratio laser cutting table, integrated work table


The bottom of the machine is equipped with non-slip cushion rubber pad, no need to install it separately

Vibration Table Testing Equipment 0Vibration Table Testing Equipment 1



TECHNICAL PARAMETERS



Vibration direction 2-axis direction (vertical+horizontal),test table split into vertical table and horizontal table
Testing table size

Test table:500*500mm(other size can customized)

Height of vertical test table:220mm
Height of horizontal test table:240mm

Maximum load 100kg
Frequency range 1Hz~600Hz
Amplitude 0~5mm
Maximum acceleration

0~20g(1g=9.8m/S2)



Packaging & Shipping



1.Aluminium box and carton box, careful and tight package, make sure the package is intact

2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.



Vibration Table Testing Equipment 2





Our Services



If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.

1. Pre-service

24 Hours online service for customers' consultation.

2. Middle service

--Fullfill customer's request:

--Payment method depends on customer.

--Promptly production and delivery

--Can provide invoice value if you want to decrease your tax.

3. After sale service

--One year warranty service and all life maintenance.

--Technical Egineer are avalible for oversea trainning.

--Remote control technical consult

Company Information



Shanghai Glomro Industrial Co., Ltd was founded in 2012. Specializing in the production of testing equipment and industrial measurements and instruments products. Products of high quality, fashionable, widely used in a variety of industrial areas, not only has the broad masses of the domestic sales market, but also exported to Europe and the United States.
Glomro hinge over the years has always adhered to "quality of products in order to survive, credibility and development services" business purposes. Committed to providing you with high-quality products and quality services. Have a professional, dedicated design management team, from product design, mold making, molding to the Product assembly, for each aspect and processes are rigorously testing and control.

Over the past few years of production and management and exploration, Longtai set up its own quality management system. Industry standards including SAE,IEC JEDEC,ASTM and MIL-STD,ISO:9001,UL,CE certified. Glomro always implement the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions to technical problems,further exploration innovation,and excellence.

Warmly welcome you and opening up the boundaries of communication. We synchronize with your ideal partner!



Vibration Table Testing Equipment 3Vibration Table Testing Equipment 4
