| Place of Origin: | Shanghai, China(mainland) |
|---|---|
| Brand Name: | BAXIT |
| Model Number: | GLO-ZD600 |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/A, D/P, Western Union |
| Supply Ability: | 10 Set per day |
| Power: | Electronic, 1.8KW | Application: | Defense, Aviation, Codefense, Aviation, Communications, Electronics, Automotivedefense, Aviation, Communications, Electronics, Automotivemmunications, Electronics, Automotive |
|---|---|---|---|
| Function: | Used To Detect Early Failures | Power Supply: | AC220V 50Hz |
| Warranty: | 1 Year | Test Load: | 100KG |
| Vibration Direction: | Vertical + Horizontal (manual Switching) | Machine Size (mm): | Table 500*500mm, Console 700*400*350mm |
| Total Weight: | About 200kg | ||
| High Light: | vibration testing equipment,shaker testing device |
||
Place of Origin:China
Brand Name:Glomro
Model Number:GLO-ZD600
Power:Electronic, 1.8KW
Product name:Electromagnetic Vibration Testing Machine/Table
Application:defense, aviation, communications, electronics, automotive
Function:Used to detect early failures
Power supply:AC220V 50HZ
Warranty:12 Months
Test load:100KG
Vibration direction:vertical + horizontal (manual switching)
Machine size (mm):Table 500*500mm, console 700*400*350mm
Total weight of the machine:About 200kg
Packaging Details: WOODEN PACKAGE
Port: SHANGHAI
Lead Time :
| Quantity(Sets) | 1 - 5 | >5 |
| Est. Time(days) | 20 | To be negotiated |

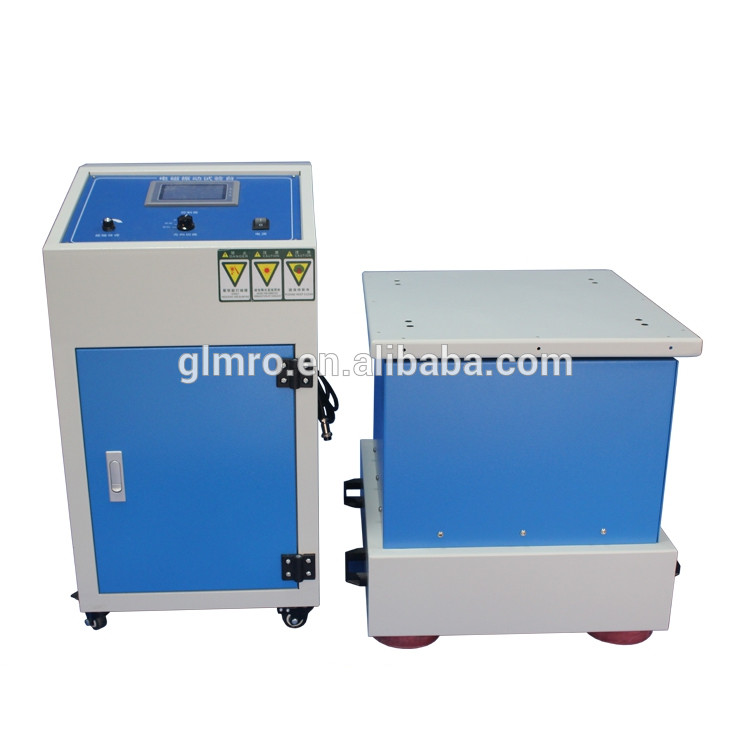

Electromagnetic Vibration Testing Machine/Table
| Product Usage |
Electromagnetic vibration tables are widely used in defense, aviation, communications, electronics, automotive, home appliances, and other industries. This type of equipment is used to find early faults, simulate actual working condition assessment and structural strength test. The product has a wide range of applications, wide application range, and remarkable and reliable test results. Sine wave, frequency modulation, frequency sweep, programmable, multiplier, logarithm, time control.
|
| Product Features |
1. Using the most advanced and simple operation technology, fixed frequency, sweeping frequency is convenient to switch at any time. 2. With time timing, countdown display function 3. Touch controller, easy to operate, solves the shortcomings of digital display operation 4. The control parameters are displayed in real time, without manual intervention. 5. The base of the machine adopts the vibration-proof device, which is easy to install and runs smoothly. It is not necessary to install the anchor screws. 6. Embedded amplitude prediction program and easy to adjust amplitude 7. Four-point synchronous excitation, uniform vibration of the table 8. Stepless adjustment of amplitude, fixed frequency and frequency sweep operation function to adapt to various test requirements of different industries 9. Increase the anti-interference circuit to solve the interference of the control circuit due to the strong electromagnetic field 10. Curve display function, you can view the frequency waveform change at any time.
|
| Technical Parameters | |
| Test load | 100KG |
| Vibration direction | vertical + horizontal (manual switching) |
| Machine size (mm) | Table 500×500mm, console 700*400*350mm, vibrating table 500*500*500mm |
| Total weight of the machine | About 200kg |
| Amplitude (P-P) | 0-5mm (random, varies with frequency, adjustable) |
| Sweep frequency | 1-600HZ can be set arbitrarily (true standard back and forth frequency sweep) |
| Maximum acceleration | 10g |
| Indicator function | Frequency modulation, frequency sweep, time |
| Precision | Frequency can be displayed to 0.1Hz, precision 0.1Hz |
| Vibration waveform | Sine wave |
| Time control | Time can be se |
| Power | 1.8KW |
2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.
If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.
