|Power:||Electronic, 1.8KW||Application:||Defense, Aviation, Codefense, Aviation, Communications, Electronics, Automotivedefense, Aviation, Communications, Electronics, Automotivemmunications, Electronics, Automotive|
|Function:||Used To Detect Early Failures||Power Supply:||AC220V 50Hz|
|Warranty:||1 Year||Test Load:||100KG|
|Vibration Direction:||Vertical + Horizontal (manual Switching)||Machine Size (mm):||Table 500*500mm, Console 700*400*350mm|
|Total Weight:||About 200kg|
vibration measuring equipment,
vibration testing equipment
Place of Origin:China
Product name:Electromagnetic Vibration Testing Machine/Table
Application:defense, aviation, communications, electronics, automotive
Function:Used to detect early failures
Power supply:AC220V 50HZ
Vibration direction:vertical + horizontal (manual switching)
Machine size (mm):Table 500*500mm, console 700*400*350mm
Total weight of the machine:About 200kg
Packaging Details: WOODEN PACKAGE
Lead Time :
|Quantity(Sets)||1 - 5||>5|
|Est. Time(days)||20||To be negotiated|

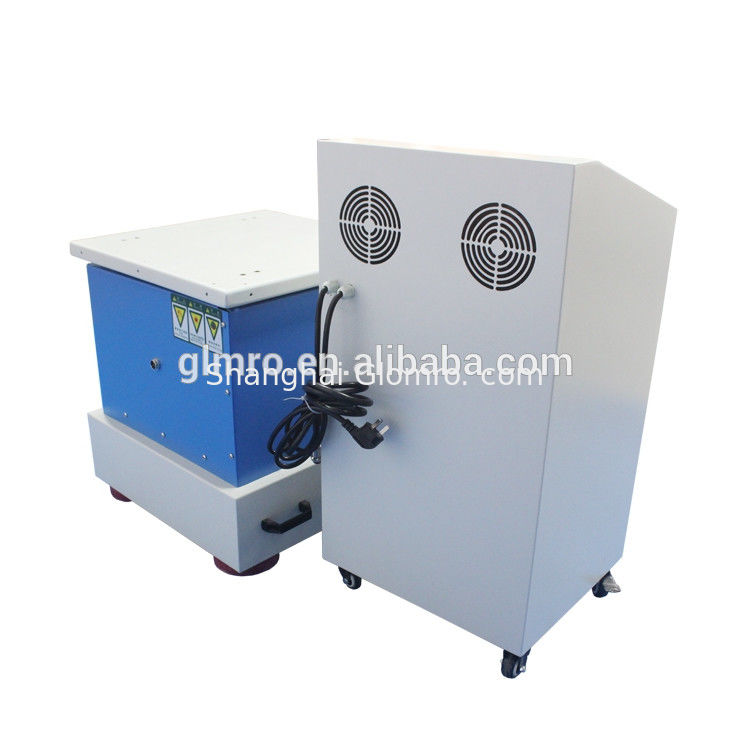

Electromagnetic Vibration Testing Machine/Table
Electromagnetic vibration tables are widely used in defense, aviation, communications, electronics, automotive, home appliances, and other industries. This type of equipment is used to find early faults, simulate actual working condition assessment and structural strength test. The product has a wide range of applications, wide application range, and remarkable and reliable test results. Sine wave, frequency modulation, frequency sweep, programmable, multiplier, logarithm, time control.
1. Using the most advanced and simple operation technology, fixed frequency, sweeping frequency is convenient to switch at any time.
2. With time timing, countdown display function
3. Touch controller, easy to operate, solves the shortcomings of digital display operation
4. The control parameters are displayed in real time, without manual intervention.
5. The base of the machine adopts the vibration-proof device, which is easy to install and runs smoothly. It is not necessary to install the anchor screws.
6. Embedded amplitude prediction program and easy to adjust amplitude
7. Four-point synchronous excitation, uniform vibration of the table
8. Stepless adjustment of amplitude, fixed frequency and frequency sweep operation function to adapt to various test requirements of different industries
9. Increase the anti-interference circuit to solve the interference of the control circuit due to the strong electromagnetic field
10. Curve display function, you can view the frequency waveform change at any time.
|Vibration direction||vertical + horizontal (manual switching)|
|Machine size (mm)||Table 500×500mm, console 700*400*350mm, vibrating table 500*500*500mm|
|Total weight of the machine||About 200kg|
|Amplitude (P-P)||0-5mm (random, varies with frequency, adjustable)|
|Sweep frequency||1-600HZ can be set arbitrarily (true standard back and forth frequency sweep)|
|Indicator function||Frequency modulation, frequency sweep, time|
|Precision||Frequency can be displayed to 0.1Hz, precision 0.1Hz|
|Vibration waveform||Sine wave|
|Time control||Time can be se|
