Thermal Resistance Tester / Thermal Conductivity Tester for Rubber

Basic Information
Place of Origin: CHINA
Brand Name: BAXIT
Model Number: GLO-CT6
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 5-8 WORK DAY
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 Set/Sets per Month
Detail Information
Power: Electronic Usage: Plastic Testing Machine
Product Name: Thermal Resistance Tester / Thermal Conductivity Tester For Ru Warranty: 1 Year
Power Supply: Supply: 220V 50Hz Application: Silicon Rubber, Plastic Board, Perlite
High Light:

laboratory testing machines

,

lab testing equipment


Product Description

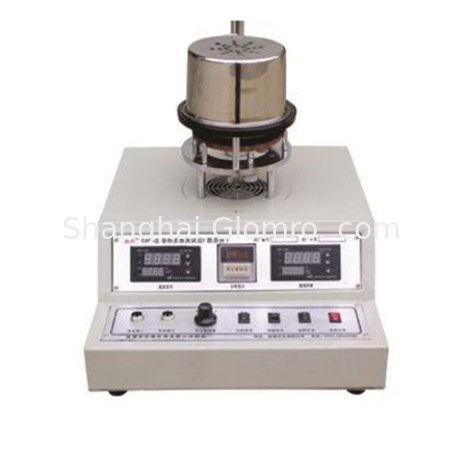

Thermal Resistance Tester / Thermal Conductivity Tester for Rubber



Product Description



Equipment Overview

The tester consists of a heater, a digital temperature meter, a digital display timer, etc. (integrated design)



Technical Parameter

Power supply: AC 220V; 50HZ
Heat source: Heated copper block, heated with 36V safe voltage
Test materials: silicone rubber, plastic board, perlite, aluminum metal, air, etc., plus the surrounding frame can be made of granular, powdery, gel-like materials.
Measurement temperature range: room temperature ~ 110 °C, accuracy ± 1 °C;
Timing part: range 0~999.9s; resolution 0.1s;
Thermal conductivity measurement accuracy: ≤10%
Sample size: Φ130×(1-100)mm
Thermal conductivity test range: 0.1~300w/m•k



Configuration

Each unit includes one test host,

two thermocouples,

one aluminum sample,

one thermal insulation barrel,

one retaining plate,

one thermal grease.



Maintanence

1. Clean the surface of the heating plate and the heat plate before use. Wipe the two ends of the sample and apply a small amount of silicone oil. To ensure good contact.

2. During the experiment, if you remove the hot plate, you should turn off the power first. When removing the hot cylinder, the hand should hold the fixed shaft to prevent the hand from being burned.

3. After the experiment is over, cut off the power and keep the measurement samples. Do not scratch both ends of the specimen and affect the accuracy of the experiment. When the number of digital thermometers is unstable, check whether the contact of the thermocouple and each link is good.

4. When handling and placing the instrument, strong vibration and shock should be avoided.

5. When the instrument is not used for a long time, please put on a plastic bag to prevent the humid air from contacting the instrument for a long time. The air humidity in the room should be less than 80%.

6. When using the instrument, avoid places with strong magnetic field sources around.

7. When it is used for a long time after it is not used for a long time, please use it after preheating for 30 minutes.
