|Power:||Electronic||Usage:||Vibration Testing Machine|
|Certificate:||CE ISO||Power Supply:||220V 50Hz|
|Testing Table Size:||500mm*500mm(can Customized)||Maximum Load:||100kg|
vibration measuring equipment,
shaker testing device

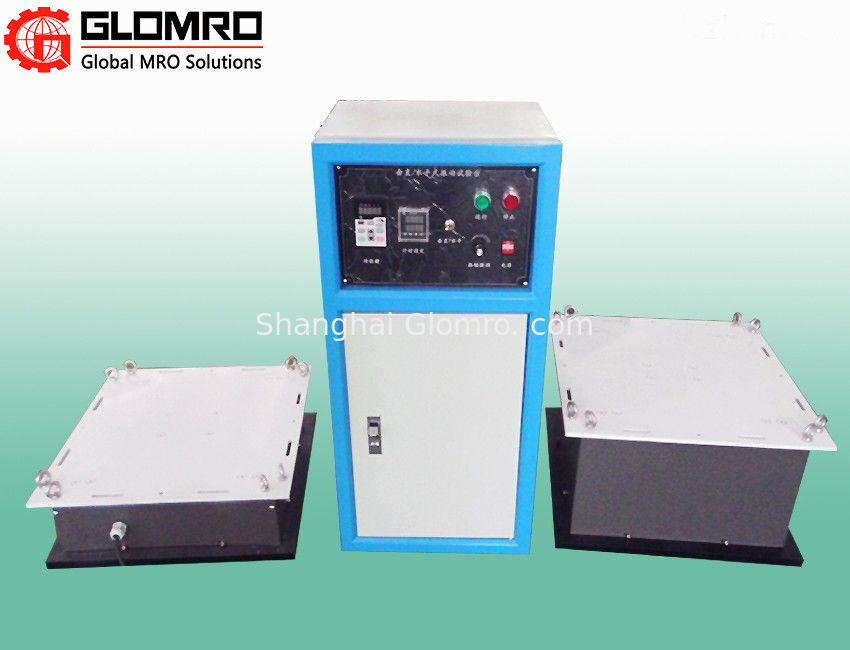

Transport Vibration Simulator / Electromagnetic Vibration Test Table
1, table size (mm): 500×1000 other sizes can be customized
2. Amplitude: 0~5mm
3, the maximum load: 100kg
4, frequency: 1Hz~600Hz
5, the maximum acceleration: 0 ~ 20g (1g = 9.8m/S2)
6, vibration waveform: sine wave (half-wave, full-wave)
7. Sweep function (1~600Hz): (up frequency/down frequency/time range) can be set arbitrarily to standard sweep back and forth.
8. Programmable function (1~600Hz): 1~15 segments. The time and frequency of each segment can be arbitrarily set to achieve the cycle detection function.
9, vibration direction: 1 vertical (Z axis), 2 horizontal (X, Y axis), 3 vertical + horizontal (Y, X, Z axis)
10, precision: frequency can be displayed to 0.01Hz
11. Shaking table power: 4.5kw
12, power supply voltage: 380V 50Hz
13, the maximum current: 10A
16, time control: any time can be set (seconds)
17, to achieve the function: sine wave, FM, frequency sweep, programmable, maximum acceleration, amplitude modulation, time control.
18, measuring instrument (optional): if you need to read the amplitude, acceleration
1. Using 7 inch touch screen instrument and self-designed PLC module control
2. U disk can export data, install related software can be connected to the computer control
3. Has a single point, segment, multi-segment time setting function
4. The control parameters are displayed synchronously in real time. No manual intervention
5. Accurately achieve controllable results. And can display the control curve
6. The background communication protocol can be opened according to customer requirements, and the customer can program it on the computer (the conventional one-way vibration table does not have this function)
7. Golden ratio laser cutting table, integrated work table
The bottom of the machine is equipped with non-slip cushion rubber pad, no need to install it separately
|Vibration direction||2-axis direction (vertical+horizontal),test table split into vertical table and horizontal table|
|Testing table size||
Test table:500*500mm(other size can customized)
Height of vertical test table:220mm
