| Brand Name: | BAXIT |
|---|---|
| Model Number: | BXT24GW-XA |
| Minimum Order Quantity: | 1 |
| Price: | USD703-672 |
| Delivery Time: | 3-7working days |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 9999units |
| Place Of Origin: | Shanghai, China | Capacity (btu): | 12000 |
|---|---|---|---|
| COP: | 12.38 | EER: | 22 |
| Power (W): | 980 | Power Type: | DC |
| Use: | Room | ||
| High Light: | Powered Hybrid Ductless Air Conditioner,24000Btu Dc Inverter Solar Panels,Split Inverter Solar Panels |
||

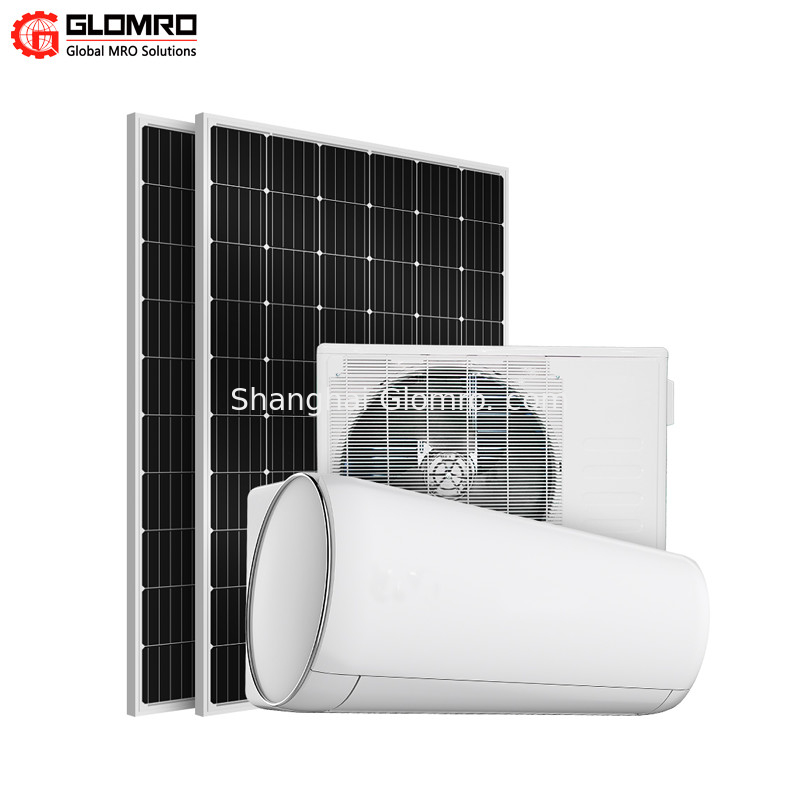

BXT series new solar air conditioning
The reinvented series of off-grid solar air conditioners are designed from the ground up using solar energy. All electrical components are DC powered, including DC compressor, high efficiency DC fan motor, DC valve and solenoid valve.
The off-grid solar air conditioning adopts the solar direct drive technology (SDDA) and IPS model. Combined with the characteristics of ACDC hybrid solar air conditioning, the IPS control model is used to increase the battery backup function. Therefore, the air-conditioning unit can use AC, DC and battery power according to customer requirements and energy conditions.

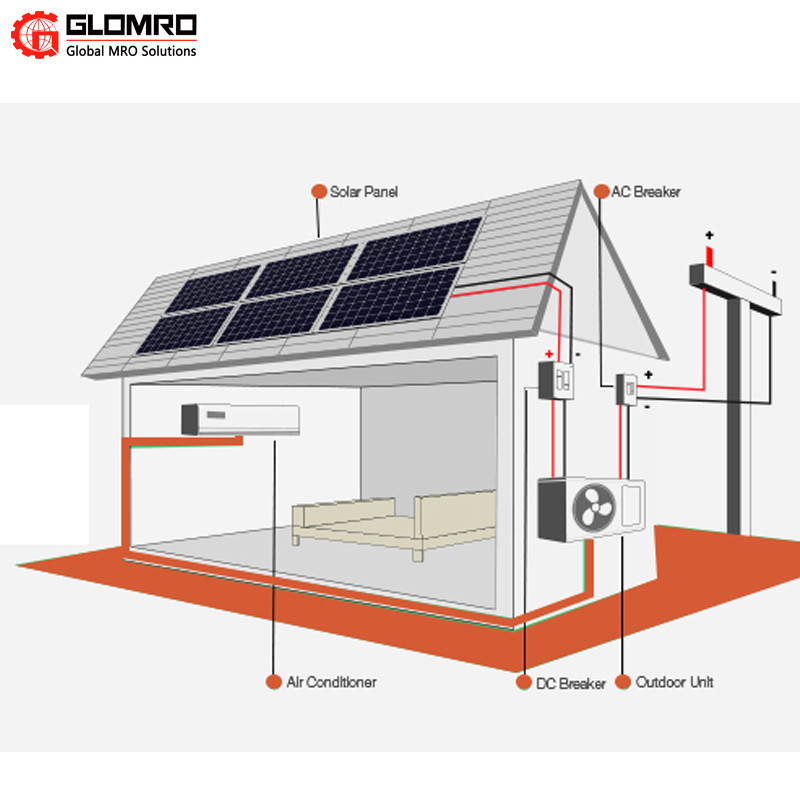

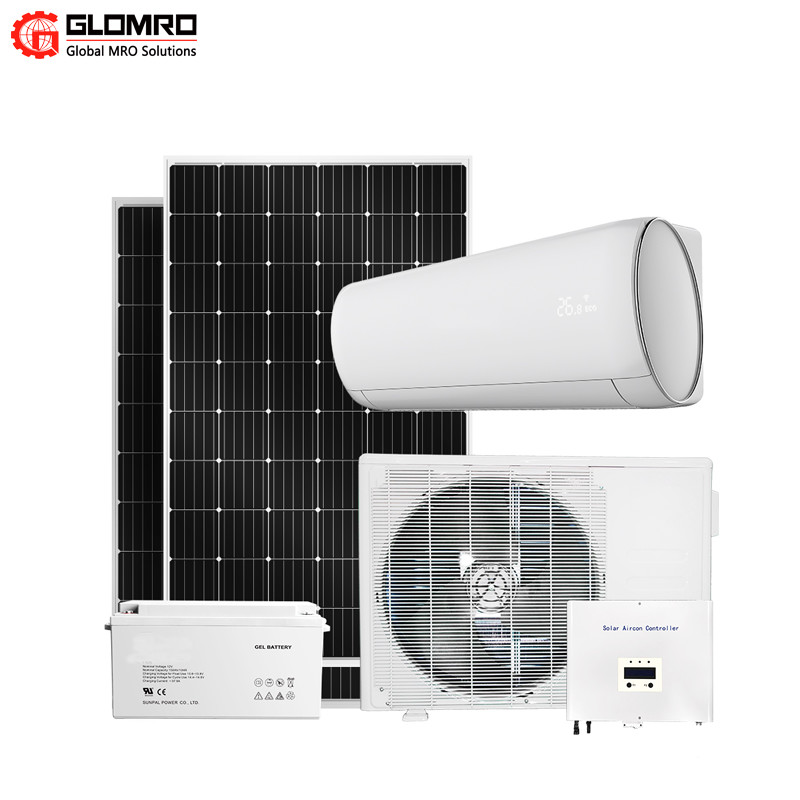

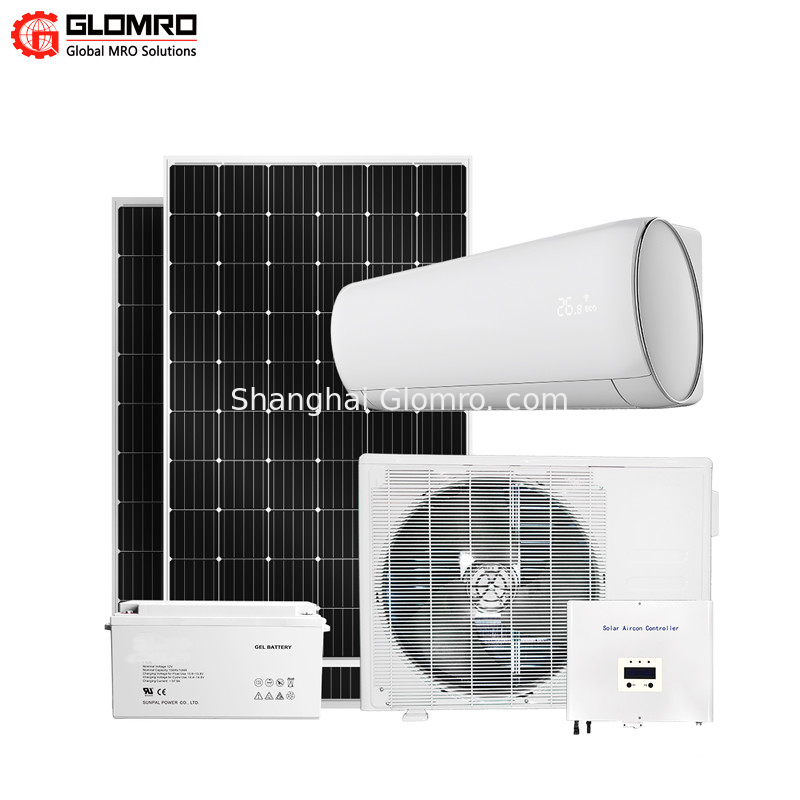

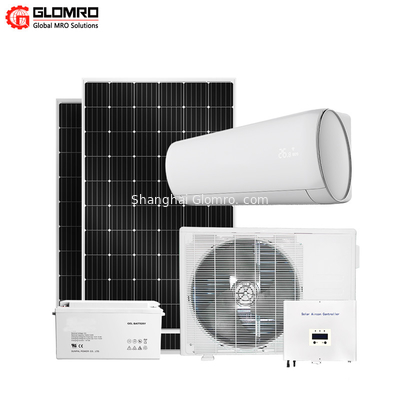

The entire system consists of only an air conditioning unit, an IPS model, some photovoltaic panels and batteries. Compared with the conventional AC unit + off-grid solar system, the solar energy utilization rate increases by 20%-40%. With the same number of batteries and solar panels, the operating time of air conditioning units will be improved by 30-50%.
| Model No | BXT09GW-XA | BXT12GW-XA | BXT18GW-XA | BXT24GW-XA |
| Power Supply: | ||||
| Solar Power | DC90-380V | |||
| Max Solar Charging Current | 15A | |||
| AC Power Connected | 200-230V (50/60HZ) | |||
| Cooling: | ||||
| Capacity | 9000 Btu/h | 12000 Btu/h | 18000 Btu/h | 24000 Btu/h |
| Inverter Capacity Range | 2808-9536 Btu/h | 3099-1298 Btu/h | 3482-19389 Btu/h | 4294-25280 Btu/h |
| Power Input | 0.81Kw | 0.98Kw | 1.51Kw | 1.87Kw |
| SEER/EER | 22/12.3 Btu/W | 22/12.6 Btu/W | 20/12.1 Btu/W | 20/12.1 Btu/W |
| Heating: | ||||
| Capacity | 9000 Btu/h | 12000 Btu/h | 18000 Btu/h | 24000 Btu/h |
| Inverter Capacity Range | 2858-9685 Btu/h | 2808-9536Btu/h | 2808-9536Btu/h | 2808-9536Btu/h |
| Power Input | 0.87 Kw | 1.12 Kw | 1.29 Kw | 1.82 Kw |
| HSPF/COP | 12/13.4 Btu/W | 11/12.38 Btu/W | 10/12.41 Btu/W | 11/12.31 Btu/W |
| Operation Temperature: | ||||
| Indorr Unit | 60.8-89.6 ºF | |||
| Outdoor Unit | 50-125.6 ºF | |||
