-50C~ +250C Hermetic Refrigerating Heating Circulation Pump DC-0506

Basic Information
Place of Origin: China
Brand Name: BAXIT
Certification: CE
Model Number: DC-0506
Minimum Order Quantity: 1unit
Price: USD735/unit
Packaging Details: wooden packing
Delivery Time: 3-5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000units
Detail Information
Temperature Range: -5~+100℃ Volatility: ±0.05℃
Resolution: 0.01℃ Slot Opening: 180*160mm
Slot Death: 150mm Slot Volume: 6L
Pump Flow: 6L/min
High Light:

Hermetic Refrigerating Heating Circulation Pump


LCD display Heating Circulation Pump

Product Description

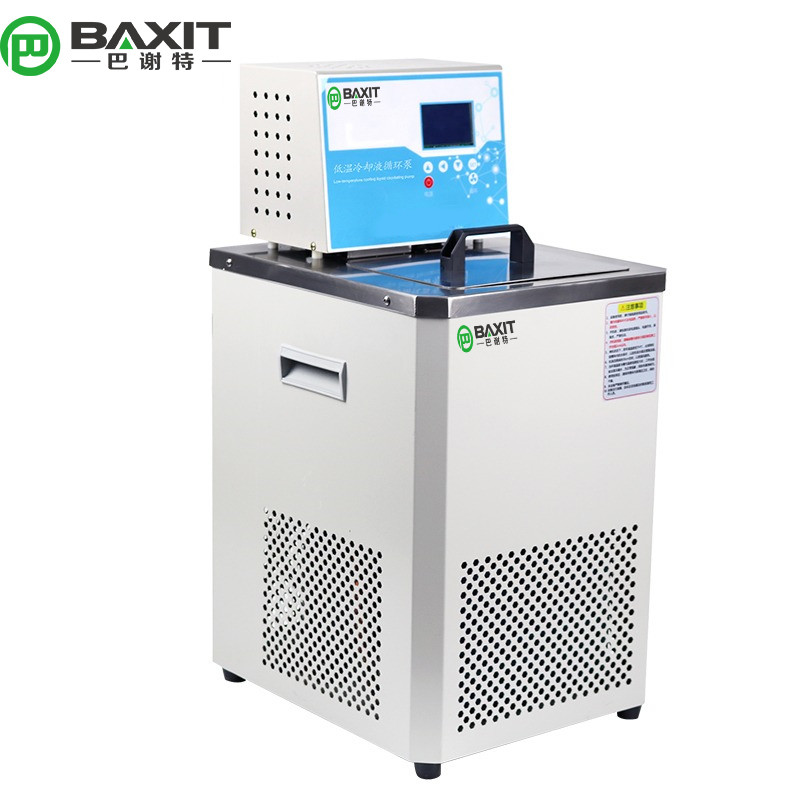

-50C~+250C Hermetic Refrigerating Heating Circulating Pump DC-0506 Thermostat Bath
Instrument introduction:
Low-temperature thermostats are widely used in research departments such as petroleum, chemical industry, electronic instrumentation, physics, chemistry, biological engineering, medicine and health, life sciences, light industry food physical testing and chemical analysis, universities, enterprises, quality inspection and production departments, for When the user is working, it provides a field source with controlled cold and heat and a uniform temperature. It can conduct constant temperature experiments or tests on experimental samples or products. It can also be used as a heat source or cold source for direct heating or cooling and auxiliary heating or cooling.
-50C~ +250C Hermetic Refrigerating Heating Circulation Pump DC-0506 0
Control system:

● Large-screen LCD display, digital display resolution 0.01℃. With drain valve, casters can be provided according to customer requirements.

● GLOMRO special software develops self-made temperature control technology, which is equipped with high-performance temperature sensor and full electronic components.

● The software system is convenient to correct the error between the displayed temperature and the actual temperature, and the temperature correction resolution can reach 0.01℃, so that the displayed temperature value is accurate.

● With over-temperature protection, over-temperature buzzer alarm, over-temperature alarm temperature can be set, and the load can be automatically cut off when over-temperature.

● Intelligent software has strong temperature stability, PID can automatically set parameters according to different media, and special users can manually re-adjust parameters.

● Use the software to digitally lock the setting values ​​of the control system to avoid wrong operations by irrelevant personnel and ensure the correctness of the experimental process data.

● Optional RS232 or RS485 communication interface to realize data transmission and remote control.

● Accurate temperature control makes the temperature in the working tank stable quickly. Press the "Power" key to turn off all functions of the instrument.


Refrigeration system: High-efficiency fully enclosed compressor unit for refrigeration, fast cooling speed, and multiple protections such as overheating and overcurrent.

Circulatory system: Inner circulation and outer circulation system. The inner circulation makes the temperature uniform and stable. The outer circulation pump outputs 6L/min, 13L/min constant temperature liquid to establish the external constant temperature field, and can also be used as a cold source to cool the external experimental container.

Internal and external material: The inner tank and the countertop are made of stainless steel, and the casing is cold-rolled steel with plastic spraying, which is clean and hygienic, beautiful and corrosion-resistant.

Safety protection device: 1. With power-off protection function 2. With upper and lower limit temperature alarm setting function 3. Low water level protection and alarm function 4. Temperature runaway protection and alarm function 5. The heating device has low water level anti-dry burning and explosion-proof functions

Technical Parameters:

-50C~ +250C Hermetic Refrigerating Heating Circulation Pump DC-0506 1

-50C~ +250C Hermetic Refrigerating Heating Circulation Pump DC-0506 2-50C~ +250C Hermetic Refrigerating Heating Circulation Pump DC-0506 3

-50C~ +250C Hermetic Refrigerating Heating Circulation Pump DC-0506 4

-50C~ +250C Hermetic Refrigerating Heating Circulation Pump DC-0506 5

-50C~ +250C Hermetic Refrigerating Heating Circulation Pump DC-0506 6

-50C~ +250C Hermetic Refrigerating Heating Circulation Pump DC-0506 7
