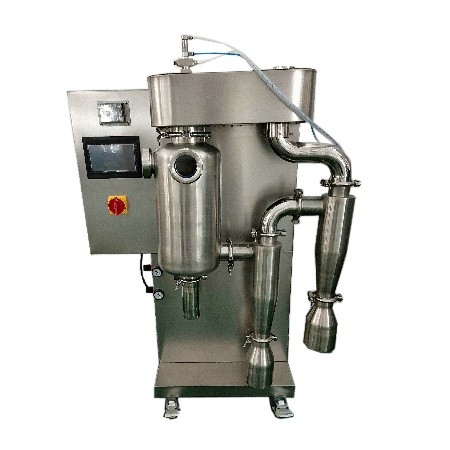

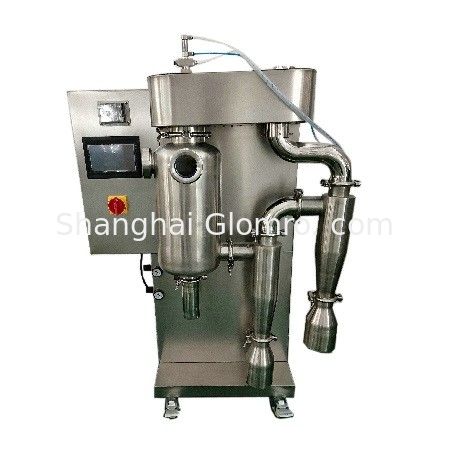

Two Collection Bottles 50ml Feed Stainless Steel Spray Drying Equipment

Basic Information
Place of Origin: China
Brand Name: BAXIT
Certification: CE
Model Number: BXT-8000BT
Minimum Order Quantity: 1 set
Packaging Details: Aluminium box and carton box 40*70*35 cm
Delivery Time: 5-8 workdays
Payment Terms: L/C, T/T
Supply Ability: 100+sets+5days
Detail Information
Water Evaporation: 1000ml-2000ml/h Minimum Feed: 50ml
Average Drying Time: 1.0-1.5s Voltage: 220V/50Hz
Material: 304 Stainless Steel Inlet Treatment: Fiber Cotton Filter
Color: Metallic/White Dimensions: 550(W)*650(D)*1300(H)mm
High Light:

mro goods


mro solutions

Product Description

2L two separators two collection bottles small spray drying equipment for Experiment portable for laboratory

Product description

The experimental spray dryer (small spray dryer) has a compact design and can be placed independently

in a laboratory or placed on a specially designed stainless steel rack. It is self-contained and can be operated

without other facilities. One-button start-up, large color LCD touch screen operation, two operating modes, fully

automatic or manual monitoring, can be used to facilitate operation and monitoring of the experimental process.

It is currently a spray dryer with the smallest volume, the least noise and excellent drying effect.

Applicable scene

This product is suitable for the fields of food, pharmaceuticals, organic and inorganic chemistry, and the development of fuel cells for automotive and marine propulsion.

It can make milk powder, egg yolk, soy sauce, coffee, starch, protein, hormone, serum, antibiotic, enzyme, flavor extract, wax, dye, detergent, surfactant, pesticide, preservative, synthetic resin, pigment, ferrite , Ceramics, copying powders, magnetic materials, metal powders, photosensitive materials, various industrial medicines,etc.

Machine characteristics

1. Original imported nozzle: high efficiency.

2. Color LCD touch screen parameter display: air inlet temperature / air outlet temperature / peristaltic pump speed / air volume / needle frequency.

3. Fully automatic control: one-button start-up, after setting the spray process parameters, the temperature reaches the predetermined temperature, the peristaltic pump starts automatically, the running animation is displayed on the touch screen, and the running process is clearly displayed; just press the stop button when shutting down, the machine is automatically safe Shut down.

4. Manual control: If you need to adjust the process parameters during the experiment, you can easily switch to the manual state, and the color touch screen is dynamically displayed throughout the experiment.

5. Nozzle cleaner (through needle): when the nozzle is blocked, it will be automatically cleared, and the frequency of the needle can be adjusted automatically.

6. Shutdown protection function: Just press the stop button when shutting down, the machine will stop running immediately except for the fan, to ensure that the equipment will not burn out due to misoperation (such as forced shutdown of the fan).

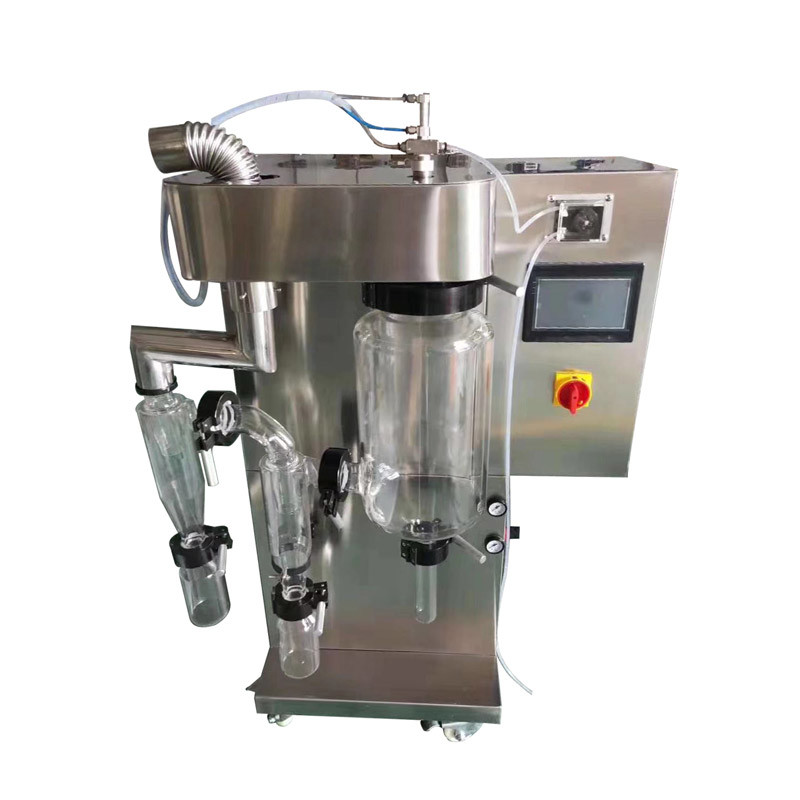

7. The spraying, drying and collecting system is made of transparent high-quality high-borosilicate heat-resistant glass material, so that the drying process can be carried out in a pollution-free environment.

8. Built-in imported oil-free air compressor,:the particle diameter of the powder spray is normally distributed, the fluidity is very good, the noise is very low, less than 60db.

9. Real-time control PID constant temperature control technology: make the temperature control in the full temperature zone accurate, and the heating temperature control accuracy is ±1℃.

10. Air inlet filter: keep the sample pure (for benzene, methanol, ethanol and other materials, it is safer to choose to add a nitrogen device)

11. Feed peristaltic pump adjustment: the feed amount can be adjusted, and the minimum sample volume can reach 50ml.

12. The particle size of the finished dry powder after drying is relatively uniform, and more than 98% of the dry powder is in the same particle size range.

13. Nozzle cleaner (through needle): The sticky material will be automatically cleared when the nozzle is blocked, and the frequency of the through needle can be adjusted automatically.

14. Innovative tower wall purge device: higher material recovery rate.

Two Collection Bottles 50ml Feed Stainless Steel Spray Drying Equipment 0Two Collection Bottles 50ml Feed Stainless Steel Spray Drying Equipment 1Two Collection Bottles 50ml Feed Stainless Steel Spray Drying Equipment 2Two Collection Bottles 50ml Feed Stainless Steel Spray Drying Equipment 3Two Collection Bottles 50ml Feed Stainless Steel Spray Drying Equipment 4

Product paraments

Water evaporation 1000mL-2000 mL/h
Minimum feed 50ml
Liquid pump 4 joint rotor pump (feeding tube: imported silicone peristaltic tube)
(Optional 6-connector rotor pump)
Atomization Refined two-fluid atomizing nozzle (gas-liquid)
(Optional refined plastic two-fluid atomizing nozzle)
Nozzle diameter Following machine standard configuration 1.0mm
(Silicon carbide material can be selected, wear resistance is about 10 times that of stainless steel)
Average drying time 1.0~1.5S
Temperature setting range 30-300°C PID automatic control;(temperature can be set)
Temperature adjustment Inlet temperature +19C
Single-phase low-noise fan Fan flow rate; 95m3/min
Wind pressure; 1.1KPa9
(Optional imported fan from Taiwan, powerful mute function)
Temperature Sensor PT-100 thermocouple
Spray adjustment range 0-0.8 MPa (recommended 0.2 MPa)
Spray pressure air intake 106L/min; displacement; 36L/min;input power 580W
Air compressor for spray Taiwan imported Dolphin brand oil-free air compressor, quiet type
Ceramic electric heater Power 3.5KW
Rated voltage 220V/50HZ
Inlet treatment Fiber cotton filter
Liquid pump flow
range adjustment
Electric box cooling Fan Heat of Brushless DC Motor
Air connection caliber for spray Outer diameter 6mm trachea
Function protection If the fan doesn't start,the heater cannot start,the air compressor or the peristaltic pump won't start
Dimensions 550(W)X650(D)X1300(H)mm
Device control method Touch screen
Machine material/weight 304/110KG

Packaging & Shipping

1. Aluminium box and carton box, careful and tight package, make sure the package is intact

2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order.
