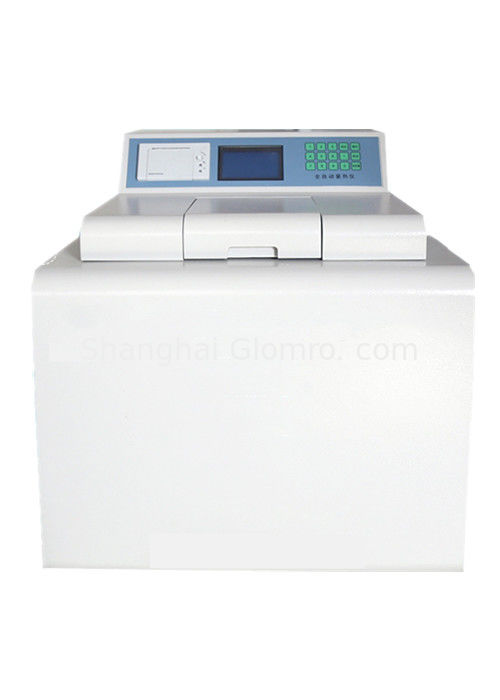

Fully Automatic Oxygen Bomb Calorimeter With Ultra Large Capacity Water Tank

Basic Information
Place of Origin: CHINA
Brand Name: BAXIT
Model Number: ZDHW-9B
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden box
Delivery Time: 5-8 working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000UNIT /30DAYS
Detail Information
Standard: ASTM D5468,AS 1038.5,BS EN 15400 Voltage: 220V 50Hz
Stability Of Heat Capacity: ≤0.2% Ambient Temperature: 5-40 ° C
Power: Electronic External Barrel Capacity: 40L
High Light:

automatic calorimeter


laboratory testing equipment

Product Description

High Quality Oxygen Bomb Calorimeter


Product advantages:

1. The environment adaptability is strong and the test results are accurate and stable.

2. The experimental data full curve tracking function, can easily view the temperature and time in the curve.

3. With instructions for operation, failure, etc., the experiment ends with automatic voice report results.

4. The window display uses a 7.0-inch color LCD touch screen, the display content is intuitive and easy to understand.

5. Simple and convenient, the control core uses ARM9 microprocessor, fast, real-time.

6. Reliability fault self-tuning function, the device has a variety of protection functions.

7. Using internal and external tube photoelectric isolation, strong anti-interference ability.

8. Internal loading has standards, instructions and common troubleshooting methods.


Working principle:

The automatic calorimeter is suitable for measuring the power, coal, metallurgy, petrochemical, quality inspection, environmental protection cement, papermaking, geological exploration, scientific research institutes and other industrial sectors. Advanced electronic refrigeration technology, completely unaffected by environmental temperature changes, to ensure that the temperature difference between the inside and outside cylinder of the instrument meets the national standards. Can work continuously for long hours. 7. 5-inch touch LCD screen with advanced American technology.



1. Stainless steel vacuum inner cylinder. The stirring system adopts the original motor imported from Germany.

2. Fast test speed, test cycle ≤8min(fast method) ≤15min.

3. The product has good performance and reliability even in harsh environments.

4. Compact structure, beautiful shape, easy installation and maintenance, low failure rate.

5. Compact size, a large number of mold manufacturing, high precision.

6. The repeatability and reproducibility of calorific value test are better than national standard.

7. High degree of automation, automatic use of the built-in tank water volume, automatic control of the temperature difference between the inside and outside barrels of the instrument, automatic completion of the whole process of the test.


Technical Parameters:

Temperature resolution 0.0001K
Precision ≦0.05%
Conformance with Standard ASTM D5865, ASTM D240, ASTM D4809, ASTM E711, ASTM D5468, AS 1038.5,BS EN 15400, BIS1350,ISO 1928, ISO 9831,ISO18125,GB/T 213,GB/T 30727
Energy Measurement Range 0~50000J
External water tank capacity about 40L
Inner water tank capacity about 2.1L
Temperature range 5-40 ° C
Power ≦100W
Dimensions(cm) 70*73*63
Machine weight 70KG
Power supply voltage AC220V 50Hz
Single calorie measurement time about 15 minutes

Fully Automatic Oxygen Bomb Calorimeter With Ultra Large Capacity Water Tank 0Fully Automatic Oxygen Bomb Calorimeter With Ultra Large Capacity Water Tank 1Fully Automatic Oxygen Bomb Calorimeter With Ultra Large Capacity Water Tank 2
