IEC60529 50W 0.3MPa 10L/Min Oxygen Index Tester

Basic Information
Place of Origin: CHINA
Brand Name: BAXIT
Certification: CE
Model Number: BXT-455
Minimum Order Quantity: 1
Packaging Details: Wooden box
Delivery Time: 5-8 working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000UNIT /30DAYS
Detail Information
Warranty: 1 Year Name: HC-2 Oxygen Index Tester
Power Supply: 220V 50Hz Function: Test Material Combustion Performance
Power: Electronic Standard: IEC60529
Flow Adjustment Range: 0-10L/min (60-600L/h) Input Pressure: 0.2-0.3MPa
High Light:

10L/Min Oxygen Index Tester

,

0.3MPa Oxygen Index Tester

,

IEC60529 Oxygen Index Tester


Product Description

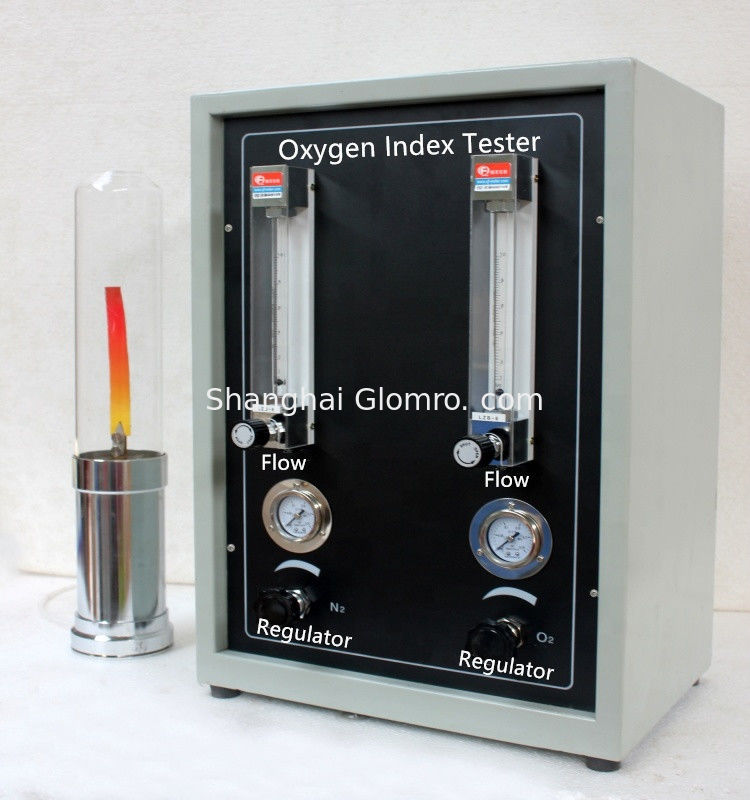

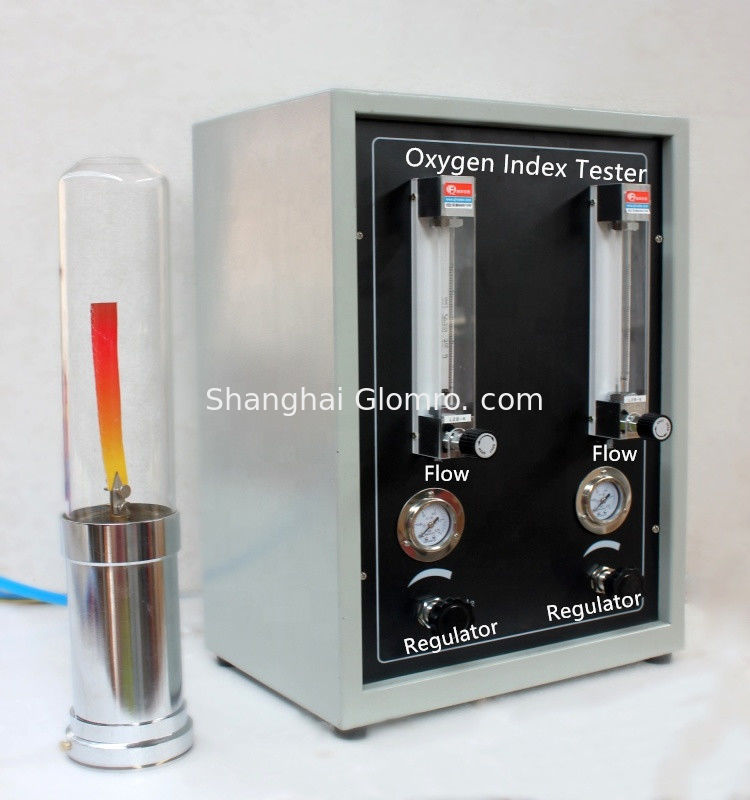

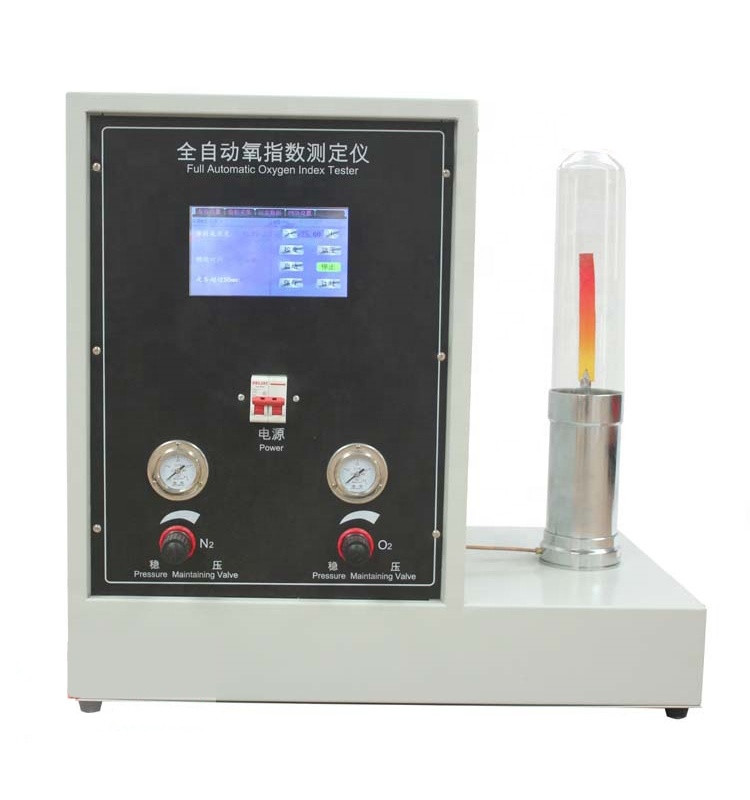

Oxygen Index Tester

Application:

Applicable to the determination of the burning properties of materials such as plastics, rubbers, fibers, foams, films, films, and textiles

Technical parameters:

The use of imported oxygen sensor, digital display oxygen concentration without calculation, higher accuracy and accuracy, range 0-100%

Digital resolution ±0.1%
machine measurement accuracy 0.4
Flow adjustment range 0-10L/min (60-600L/h)
Response time <5S
Quartz glass cylinder inner diameter ≥75mm high 300mm
Gas flow rate in the combustion cylinder 40mm±2mm/s The total height of the combustion cylinder is 450mm
The precision of pressure gauge is 2.5, resolution 0.01MPa
Flowmeter 1-15L/min (60-900L/H) adjustable, precision 2.5
Test environment ambient temperature: room temperature ~ 40 °C;, relative humidity: 70%
Input pressure 0.2-0.3MPa
Working pressure Nitrogen 0.05-0.15Mpa Oxygen 0.05-0.15Mpa Oxygen/nitrogen mixed gas inlet: Including regulator valve, flow regulating valve, gas filter and mixing chamber
Gas Industrial nitrogen, oxygen, purity >99%; (user-supplied)
Power Requirements AC220 (+10%) V, 50HZ
The maximum use of power 50W



IEC60529 50W 0.3MPa 10L/Min Oxygen Index Tester 0

The chassis and part of the structure:

1. Control box: using CNC machine tools to shape the steel plate spray box electrostatic spraying, control part and test part separately control.

2. Burner: High-temperature-resistant high-quality quartz glass tube (inner diameter 75mm, length 300mm) Outlet diameter: 40mm

4. Mixer: Using glass bead filling, mix oxygen and nitrogen evenly. (bead 4.5mm height 95mm, one bag)

5. Specimen fixture: self-supporting fixture, and can clamp the specimen vertically; (optional non-self-supporting sample rack), two sets of sample clips to meet different test requirements; style clip plug-in, placement style Simpler with style holder

7. Standard equipped with a glass tube to prevent accidental damage to meet the needs of continuous testing; Long rod igniter tail tube diameter d2 ± 1mm, igniter flame length (5-50) mm can be adjusted



Design Standards: GB/T 2406.2-2009

Meet the standards: ASTM D 2863, ISO 4589-2, NES 714 GB/T 5454 GB/T 10707-2008 GB/T 8924-2005 GB/T 16581-1996 NB/SH/T 0815-2010 TB/T 2919-1998 ISO 4589-2-1996 IEC 61144-1992 ISO 15705-2002

IEC60529 50W 0.3MPa 10L/Min Oxygen Index Tester 1

IEC60529 50W 0.3MPa 10L/Min Oxygen Index Tester 2

Packaging & Shipping

IEC60529 50W 0.3MPa 10L/Min Oxygen Index Tester 3

Our Services

If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.

1. Pre-service

24 Hours online service for customers' consultation.

2. Middle service

--Fullfill customer's request:

--Payment method depends on customer.

--Promptly production and delivery

--Can provide invoice value if you want to decrease your tax.

3. After sale service

--One year warranty service and all life maintenance.

--Technical Egineer are avalible for oversea trainning.

--Remote control technical consult


IEC60529 50W 0.3MPa 10L/Min Oxygen Index Tester 4
Company Information

Shanghai Glomro Industrial Co., Ltd was founded in 2012. Specializing in the production of testing equipment and industrial measurements and instruments products. Products of high quality, fashionable, widely used in a variety of industrial areas, not only has the broad masses of the domestic sales market, but also exported to Europe and the United States.
Glomro hinge over the years has always adhered to "quality of products in order to survive, credibility and development services" business purposes. Committed to providing you with high-quality products and quality services. Have a professional, dedicated design management team, from product design, mold making, molding to the Product assembly, for each aspect and processes are rigorously testing and control.

Over the past few years of production and management and exploration, Longtai set up its own quality management system. Industry standards including SAE,IEC JEDEC,ASTM and MIL-STD,ISO:9001,UL,CE certified. Glomro always implement the concept of customer value creation for customers tailored products to meet the needs of different customers, and continuously provide customers with solutions to technical problems,further exploration innovation,and excellence.

Warmly welcome you and opening up the boundaries of communication. We synchronize with your ideal partner!

IEC60529 50W 0.3MPa 10L/Min Oxygen Index Tester 5IEC60529 50W 0.3MPa 10L/Min Oxygen Index Tester 6IEC60529 50W 0.3MPa 10L/Min Oxygen Index Tester 7IEC60529 50W 0.3MPa 10L/Min Oxygen Index Tester 8



FAQ

Q:Are your company a trading one or a factory?

A:Factory + trade (integration),More than 10 years focusing on test instruments field,6 years exporting experience.

Q:After an order is placed, when to deliver?

A:Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days. Please be aware that our production lead times depend on specific items and item quantities.

Q:What about the warranty with after - sales services?

A:The testing machine is guaranteed for 12 months by Shanghai Glomro Building Industrial Co.Ltd ,One year promise including free maintenance and changing Instrument components.Besides, Full-life cycle technical support is provided.

Q:What about the product' services and quality?

A:Each instruments must be carried out 100% quality examination and test when shipping and delivery goods. each of our product provide video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer’s company when you need.
